Home /Products/Universal Testing Machine/UP-2003 Automated Peel Strength Tester with 10 kN to 300 kN Capacity ±1.0% Accuracy ASTM D3330 Compliant

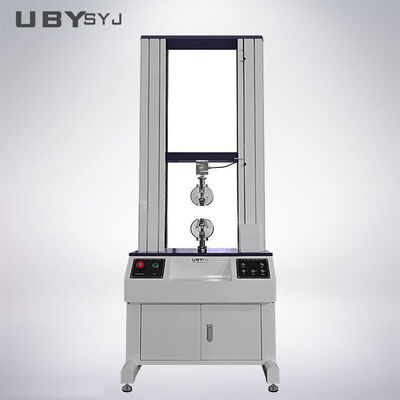

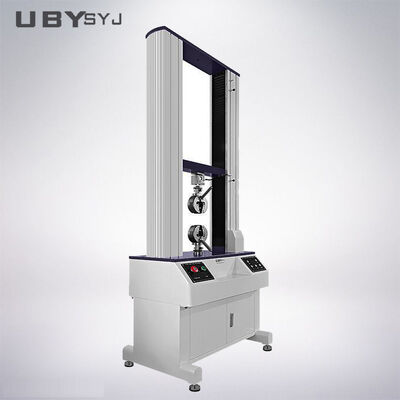

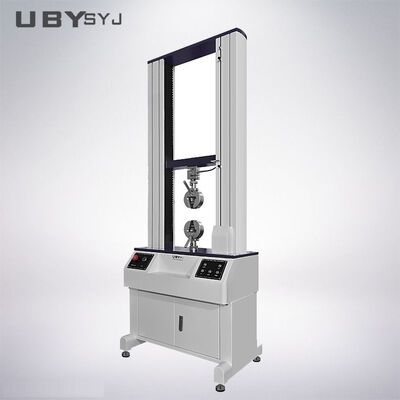

UP-2003 Automated Peel Strength Tester with 10 kN to 300 kN Capacity ±1.0% Accuracy ASTM D3330 Compliant

1
MOQ
Negotiable
Price
UP-2003 Automated Peel Strength Tester with 10 kN to 300 kN Capacity ±1.0% Accuracy ASTM D3330 Compliant
Features Gallery Product Description Chat Now
Features
Specifications
Structure Type: Benchtop, Single Column
Model NO.: UP-2003
Max. Test Force: 10 KN To 300 KN (approximately 30 Tons)
Measurement Unit Switching: Kgf, Gf, N, KN, Ibf
Accuracy: ±1.0%
Force Resolution: 1/30000
Load Measurement Range: 0.2% - 100% Of Full Scale (FS)
Effective Test Width: 120mm
Effective Tensile Stroke (Crosshead Travel): 800mm
Additional Service: Support Customer Customization.
Highlight:

Automated Peel Strength Tester ASTM D3330 compliant

,

Universal Testing Machine 10 kN to 300 kN

,

Peel Strength Tester ±1.0% accuracy
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2003
Payment & Shipping Terms
Packaging Details: 30 Unit/Month
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Western Union,paypal
Supply Ability: Professional Export Wooden Carton Packaging
Product Description
UP-2003 Automated Efficient Adhesive Tape Rubberized Fabric Adhesive Plaster Peel Strength Tester
Product Overview

The UP-2003 Automated Peel Strength Tester is specifically designed to determine the adhesive strength and peel performance of various materials including adhesive products, composite films, and packaging materials. This testing equipment provides critical data on material bonding strength, helping to prevent cracking and delamination in adhesive applications.

Applications

This peel tensile tester is ideal for performance testing of:

  • Adhesives and adhesive tapes
  • Stickers and protective films
  • Medical patches and release papers
  • Composite films and soft packaging materials
  • Synthetic leather and woven bags
  • Films, paper, and electronic carriers
Compliance Standards

ASTM D3330, ASTM F88, ASTM D2861, ASTM B571, ASTM D1876, GB/T2790, GB/T2791, GB/T2792 and related international standards.

Technical Specifications
Parameter Specification
Load Cell (Capacity) 10 kN to 300 kN (approximately 30 tons)
Force Resolution 1/300,000
Force Accuracy ≤0.5%
Displacement Resolution 1/1000 mm
Displacement Accuracy ≤0.1%
Metal Extensometer Resolution 1/1000 (subject to separate agreement)
Metal Extensometer Accuracy ≤0.5%
Large Strain Extensometer Accuracy ±0.01 mm (subject to separate agreement)
Speed Range 50 ~ 500 mm/min (custom speeds available)
Travel Range (Stroke) 1000 mm (custom range available)
Test Width 400 mm (custom width available)
System Language Switchable between Chinese and English
Power Supply 220V, 50Hz
Power Rating Approx. 1000W
Machine Dimensions (L × W × H) Approx. 500 × 500 × 1300 mm
Machine Weight Approx. 100 kg
UP-2003 Automated Peel Strength Tester with 10 kN to 300 kN Capacity ±1.0% Accuracy ASTM D3330 Compliant 0 UP-2003 Automated Peel Strength Tester with 10 kN to 300 kN Capacity ±1.0% Accuracy ASTM D3330 Compliant 1 UP-2003 Automated Peel Strength Tester with 10 kN to 300 kN Capacity ±1.0% Accuracy ASTM D3330 Compliant 2
Our Service Commitment

We provide comprehensive consultative selling services throughout the entire business process:

Inquiry Process

Technical requirement discussions, product recommendations, and competitive pricing based on your specific needs.

Customization Process

Detailed drawings, reference photos, and final solution confirmation for customized requirements.

Production & Delivery

Production updates, factory calibration, quality testing, and timely shipping coordination.

Installation & Support

Professional installation services and comprehensive after-sales support.

Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?

Yes, we are professional manufacturers of testing equipment with 12-month warranty (extendable to 14 months for international shipping). We provide free maintenance and technical support via email, phone, or video chat with solutions typically provided within 24-48 hours.

What is your delivery timeline?

Standard machines: 3-7 working days (in stock) or 15-20 working days (production). We accommodate urgent requests with special arrangements.

Do you accept customization and OEM services?

Yes, we offer both standard and fully customized machines, including OEM and ODM services with your logo branding.

How do I install and operate the machine?

We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin testing. On-site installation assistance is available when needed.

Tag:

Tensile Strength Equipment

Universal Tensile Tester

Universal Strength Testing Machine
