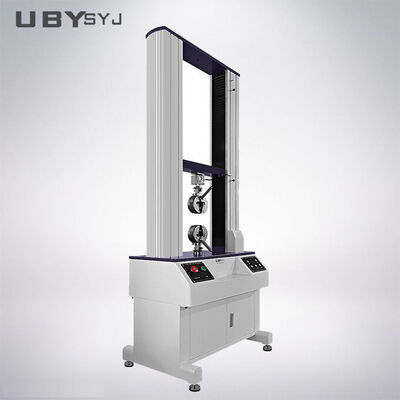

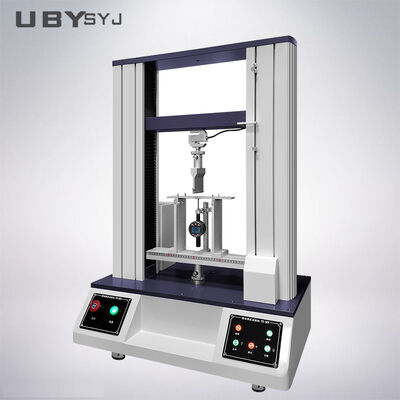

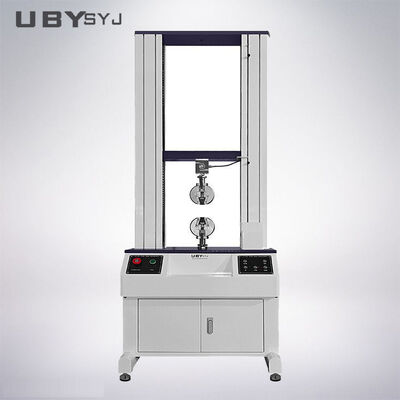

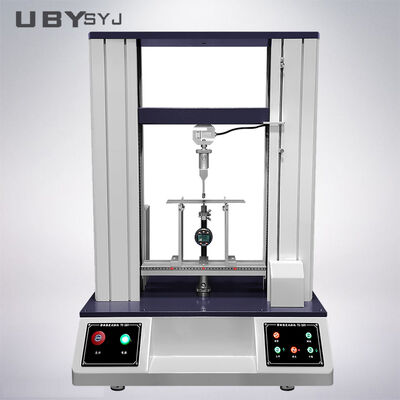

UP-2003 100kN Computer Controlled Universal Tensile Testing Machine for Metal Composite Material Test
Product Introduction
The UP-2003 100kN floor standing electromechanical universal tensile testing machine features high precision servo motor and ball screw transmission system with 0.5 class force measurement accuracy. It supports tensile, compression, bending, shearing and peel tests. The professional English version test software automatically calculates tensile strength, yield strength, elongation, flexural modulus and other key parameters, outputs force displacement, stress strain curves, and exports PDF/Excel test reports.
To adapt to different test specimens and test standards, the machine supports a full range of interchangeable customized fixtures, including wedge tensile grips, compression platens, 3-point & 4-point bending fixtures, shear fixtures, peel fixtures, manual and pneumatic clamping grippers, as well as special fixtures for ropes, chains and special-shaped workpieces. It can perfectly clamp and test metal materials, plastic rubber, composite materials, hardware fasteners and building materials.
Standards Compliance
- ISO 7500-1, ISO 6892-1 (metallic material tensile test)
- ISO 527-2, ISO 178 (plastic tensile & flexural test)
- ASTM E4, ASTM E8, ASTM A370 (metal mechanical test)
- ASTM D638, ASTM D790 (plastic tension & bending)
- GB/T 16491, GB/T 228.1
Applications
Metallurgy, auto parts, hardware fasteners, building materials, aerospace, new composite materials, rubber & plastic, scientific research institutes, university laboratories, quality supervision institutions, machinery manufacturing factories.
Test samples include steel bar, alloy plate, bolt, profile, high strength plastic, fiber reinforced composite, hardware component, etc.
Technical Specifications
| Item |
Specification |
| Max Test Force |
100 kN |
| Accuracy Grade |
Class 0.5 |
| Force Measuring Range |
2%~100% Full Scale |
| Force Resolution |
1 / 500000 FS |
| Crosshead Speed Range |
0.01 ~500 mm/min |
| Speed Accuracy |
±0.1% of set value |
| Effective Tensile Stroke |
750 mm |
| Effective Test Width |
500 mm |
| Displacement Resolution |
0.001 mm |
| Control Mode |
Force / Displacement / Deformation closed loop control |
| Software Language |
English / Chinese (switchable) |
| Power Supply |
AC 220V, 50/60Hz |
| Machine Structure |
Double column floor standing frame |
| Test Functions |
Tension, compression, bending, shear, peel |
Our Service
1) Customer Inquiry Process: Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
2) Specifications Customize Process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
3) Production and Delivery Process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
4) Installation and After-Sale Service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.
Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
