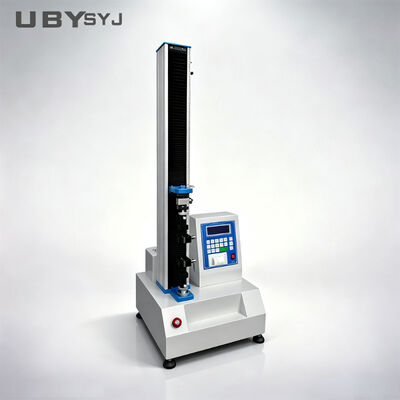

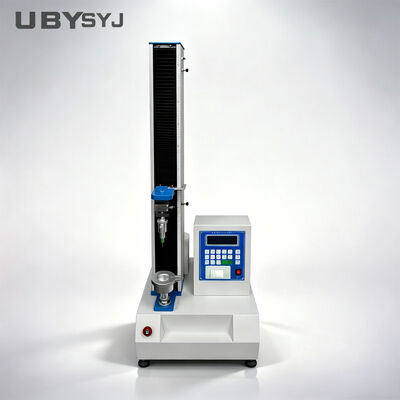

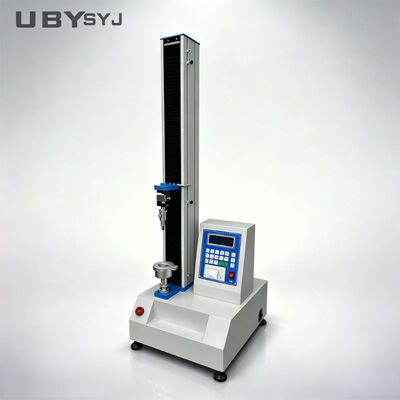

UP-2000 Film Tensile & Puncture Tester Universal Testing Machine with 500N Capacity, ±0.5% Accuracy and Built-in Thermal Printer

Film Tensile & Puncture Tester
The UP-2000 is a compact single-column universal testing machine designed for the mechanical evaluation of plastic films, laminates, flexible packaging, adhesive tapes and other low-force materials. Driven by a stepper motor through a precision ball screw and controlled by a PLC with HMI touch screen, it delivers stable, repeatable loading in both tension and compression directions.
Multiple test routines — tensile, peel, tear, puncture, constant-elongation tensile and compression — are integrated into one controller, so a single instrument replaces several dedicated testers. Results including maximum force, average value, break point ratio and sampling values are printed directly by the built-in thermal printer, which makes the unit especially practical for incoming inspection and workshop-side quality control where no PC is available.

• ±0.5% force accuracy (Class 0.5), conforming to ASTM E4 / ISO 7500-1
• Standard 500 N load cell; 50 N / 100 N / 200 N optional for low-force film and foil testing
• Stepless speed regulation from 1 to 500 mm/min to match different test methods
• 800 mm effective stroke and approx. 100 mm test width
• Built-in thermal printer outputs test reports automatically — no PC required
• Automatic return, auto zero, peak hold; overload protection, emergency stop, upper/lower travel limit, leakage protection
• Unit switching among N, kN, kgf, gf and lbf
• Interchangeable fixtures for non-standard specimens and customized test programs

• BOPP / CPP / PE / PET films
• Laminated & composite films
• Flexible packaging bags
• Aluminium foil
• Lithium battery separator
• Adhesive tapes
• Pressure-sensitive labels
• Medical patches
• Release liners
• Protective films
• Nonwovens
• Rubber
• Paper

ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904; ISO 37; JIS P8113; GB 8808, GB/T 1040, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590
