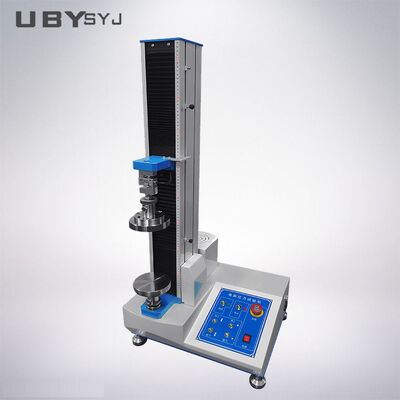

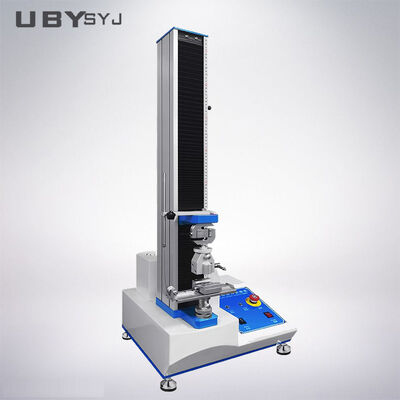

UP-2001 500kg Computerized Single Column Universal Tensile Testing Machine for Material Strength Test
The UP-2001 500kg (5KN) computerized single column tensile testing machine is a compact desktop universal material testing equipment. Equipped with precision servo motor and ball screw transmission, controlled by professional computer testing software, it performs tensile, compression, peeling, tearing, bending and shear tests.
The system automatically calculates tensile strength, elongation at break, peel force, yield strength and other parameters, draws force-displacement curves, and supports customized test reports.
Standards Compliance
ISO 527, ISO 37, ASTM D638, ASTM D412, ASTM D882, ASTM D903, GB/T 1040, GB/T 2792, JIS K6251.
Applications
Suitable for rubber, plastic, film, textile and electronic materials. Satisfies quality inspection, R&D and incoming material verification requirements for various industries.
Technical Specifications
| Parameter |
Specification |
| Capacity |
500Kg |
| Accuracy Level |
Level 1 |
| Test Force Range |
0.4%~100%FS |
| Force Accuracy |
Within ± 1% or other |
| Strength Resolution |
1 / 300000 or other |
| Displacement Indication Error |
Within ± 0.5% of the indicated value |
| Displacement Resolution |
0.01mm or other |
| Transmission Mode |
Servo Motor |
| Control System |
Servo Drive Controller |
| Servo Motor Power |
0.4KW |
| Test Speed Range |
1～500mm/min |
| Speed Accuracy |
Within ± 0.5% of the indicated value or other |
| Test Stroke (excluding fixture) |
800mm or other |
| Software |
Special software for material testing machine based on Windows-XP platform |
| Volume (W × D × H) |
700×400×1700mm |
| Power Supply |
AC 380V 50Hz |
| Weight |
About 135kg |
Our Service Commitment
During the entire business process, we offer consultative selling services:
- Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
- Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solutions
- Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
- Installation & Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. For sea transportation, we extend to 14 months. If issues arise, contact us via email or phone for troubleshooting support with solutions provided within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Out of stock items: 15-20 working days after payment. Urgent requirements receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services including logo placement.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines ship fully assembled - simply connect power and begin use. On-site installation assistance available when necessary.
