Film Tensile and Puncture Tester Universal Testing Machine with ±0.5% Accuracy 800mm Test Stroke and Stepper Motor Driven

1
MOQ
Negotiable
Price
Film Tensile and Puncture Tester Universal Testing Machine with ±0.5% Accuracy 800mm Test Stroke and Stepper Motor Driven
Features Gallery Product Description Chat Now
Features
Specifications
Type: Universal Testing Machine
Model NO.: UP-2000
Additional Service: Support Customer Customization.
Loading Precision: Under 0.5% Of Full Loading Cell
Maxcapacity: 20~500N
Resolution: 1/500,000
Measurement Unit Switching: Kgf, Gf, N, KN, Ibf
Maximum Test Stroke: 800mm, Include Griper's Length
Accuracy: ±1.0%
Power Source: AC110-220V
Highlight:

500N Capacity Film Tensile and Puncture Tester

,

±0.5% Accuracy Universal Testing Machine

,

800mm Test Stroke Tensile Strength Tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2000
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Western Union,paypal
Supply Ability: 30 Unit/month
Product Description
Film Tensile and Puncture Tester for Plastic Film Flexible Packaging Strength Test UP-2000
Product Overview

The Film Tensile Puncture Tester is a single column universal testing instrument driven by a stepper motor. Equipped with a display controller and high precision load cell, this machine supports tension and compression bidirectional test modes. It integrates multiple built-in test routines for tensile, peel, tear, heat seal, constant elongation tensile, and compression tests. Featuring overload protection, limit protection, and auto return function, the equipment guarantees safe and stable operation for physical mechanical performance evaluation of flexible materials. Optional interchangeable fixtures are available to satisfy diverse test requirements.

Compliance Standards
  • ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904
  • ISO 37
  • JIS P8113
  • GB 8808, GB/T 1040 2006, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590
Applications

Specially designed for testing:

  • Plastic films, composite materials, flexible packaging
  • Plastic hoses, adhesives, adhesive tapes
  • Pressure sensitive labels, medical patches, release liners
  • Protective films, metal foils, separator sheets
  • Non-woven fabrics, rubber, paper and related materials

Measures: tensile strength, peeling force, deformation, tear resistance, heat seal strength, puncture force, opening force, low speed unwinding force, and pull off force.

Technical Specifications
Parameter Specification
Standard Capacity 500N
Accuracy Class ±0.5% (5%-100% full scale), Class 1 (Load cell + PK 2000 indicator)
Resolution 1/50000
Drive System Stepper Motor
Speed Range 0.1-500 mm/min, stepless speed regulation
Data Sampling Rate 200 times/sec
Effective Stroke Approx. 800 mm
Max. Test Width Approx. 100 mm
Safety Devices Overload protection, emergency stop, upper/lower travel limit, leakage protection
Built-in Printer Auto print test report: max force, average value, arbitrary sampling points, break ratio, date
Standard Fixture 1 set of tensile fixtures; other fixtures optional
Machine Dimension (L×W×H) 450×450×1200 mm
Net Weight Approx. 40 Kg
Power Supply AC 220V, 50Hz
Product Images

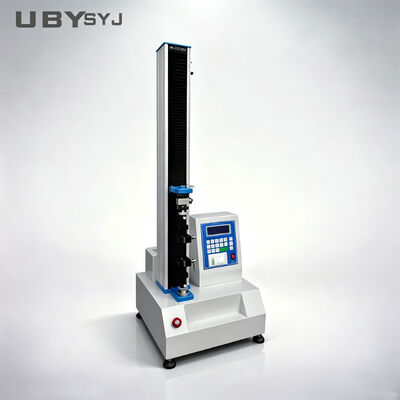

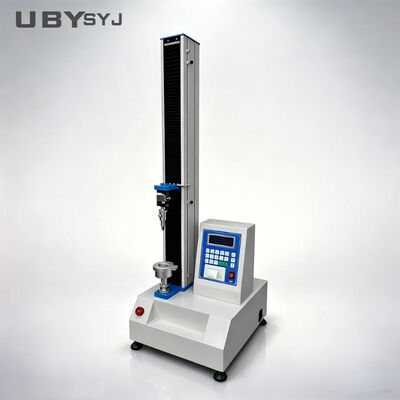

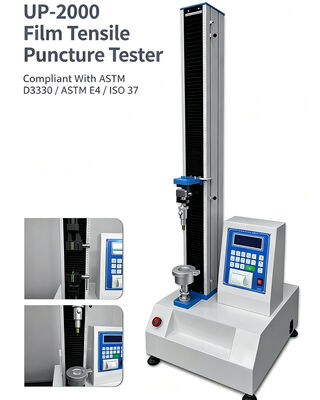

Film Tensile and Puncture Tester UP-2000 front view Film Tensile and Puncture Tester UP-2000 side view Film Tensile and Puncture Tester UP-2000 control panel Film Tensile and Puncture Tester UP-2000 in operation
Our Service Process
  1. Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide pricing.
  2. Customization: Create drawings for customized requirements, provide reference photos, and confirm final solution and pricing.
  3. Production & Delivery: Manufacture according to confirmed requirements, provide production photos, perform calibration, and arrange shipping.
  4. Installation & Support: Provide installation services and comprehensive after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of free maintenance, extended by 2 months to account for sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24-48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment. We can make special arrangements for urgent needs.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you just need to connect the power cable and start using. We can also assist with on-site installation when necessary.
