UP-2003 Servo Universal Tensile Testing Machine with 100kN Max Capacity, Class 0.5 Accuracy, and 750mm Tensile Stroke

1 Unit
MOQ
Negotiable
Price
UP-2003 Servo Universal Tensile Testing Machine with 100kN Max Capacity, Class 0.5 Accuracy, and 750mm Tensile Stroke
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Tensile Strength Testing Equipment
Model NO.: UP-2003
Test Speed: 40~400mm/Min
Effective Test Width: 500mm
Crosshead Speed Range: 0.01~500mm/min
Effective Tensile Stroke: 750mm
Maxcapacity: 100kN
Resolution: 1/500, 000
Power Accuracy: ≤0.5%
Additional Service: Support Customer Customization
Power Source: AC110-220V
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Highlight:

100kN Max Capacity Universal Testing Machine

,

Class 0.5 Accuracy Tensile Strength Testing Equipment

,

Servo Motor Control Material Testing Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2003
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 30 Unit/month
Product Description

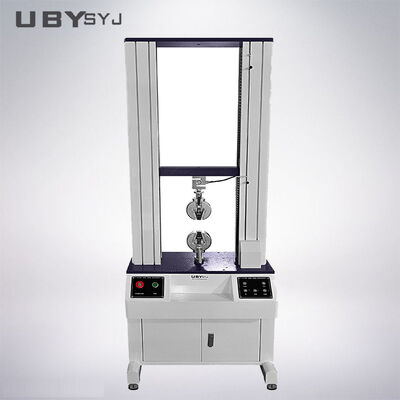

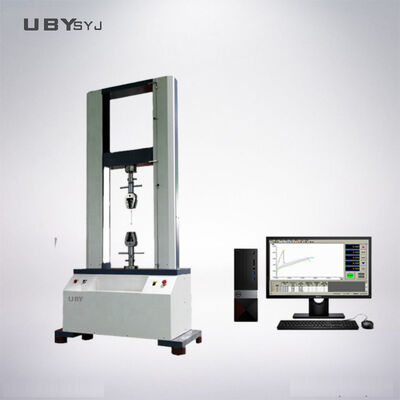

UP-2003 Servo Universal Tensile Testing Machine
Product Overview

The UP-2003 Servo Universal Tensile Testing Machine is a high-precision, multi-functional mechanical testing equipment designed for industrial quality inspection and laboratory research. Featuring a dual-column rigid frame structure with high-precision servo motor and ball screw transmission system, this machine delivers stable operation, exceptional testing accuracy, and strong durability, achieving Class 0.5 measurement precision to meet international standard testing requirements.

Compliance Standards
  • ISO 7500-1, ISO 6892-1 (metallic material tensile test)
  • ISO 527-2, ISO 178 (plastic tensile & flexural test)
  • ASTM E4, ASTM E8, ASTM A370 (metal mechanical test)
  • ASTM D638, ASTM D790 (plastic tension & bending)
  • GB/T 16491, GB/T 228.1
Applications

This versatile testing machine serves multiple industries including metallurgy, auto parts, hardware fasteners, building materials, aerospace, new composite materials, rubber & plastic, scientific research institutes, university laboratories, quality supervision institutions, and machinery manufacturing factories.

Test samples include steel bar, alloy plate, bolt, profile, high strength plastic, fiber reinforced composite, hardware components, and more.

Technical Specifications
Item Specification
Max Test Force 100 kN
Accuracy Grade Class 0.5
Force Measuring Range 2%~100% Full Scale
Force Resolution 1 / 500000 FS
Crosshead Speed Range 0.01 ~500 mm/min
Speed Accuracy ±0.1% of set value
Effective Tensile Stroke 750 mm
Effective Test Width 500 mm
Displacement Resolution 0.001 mm
Control Mode Force / Displacement / Deformation closed loop control
Software Language English / Chinese (switchable)
Power Supply AC 220V, 50/60Hz
Machine Structure Double column floor standing frame
Test Functions Tension, compression, bending, shear, peel
Product Images
UP-2003 Servo Universal Tensile Testing Machine Versatile Modular Tensile Strength Equipment Stable Tensile Testing Machine
Our Service Commitment

We provide comprehensive Consultative Selling services throughout the entire business process:

  • Customer Inquiry: Technical discussion, requirement analysis, and product recommendations with competitive pricing
  • Customization: Detailed drawings, reference photos, and final solution confirmation for customized requirements
  • Production & Delivery: Transparent production process with photo updates, calibration services, and timely shipping
  • Installation & Support: Professional installation and comprehensive after-sales support services
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. For extended support considering sea transportation, we offer an additional 2 months. If your machine requires service, contact us via email or phone for prompt troubleshooting and solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin testing. On-site installation assistance is available when necessary.
