Name: Xenon Lamp Aging Tester with 30~98%RH Humidity Range -70°C~100°C Temperature Range and Stainless Steel US304 Interior for Material Durability Testing
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6117
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Xenon Lamp Weathering Test Chamber

Humidity Range: 30~98%RH

Temperature Range: -70°C~100°C

Temperature Uniformity: ± 2°C

Humidity Uniformity: ± 3%RH

Internal Chamber Material: Stainless Steel US304

Specification: Refer To The Actual Size Specifications

Custom Service: OEM,ODM

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6117

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5-15 work days

Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram

Supply Ability: 30 Unit/month

Gallery

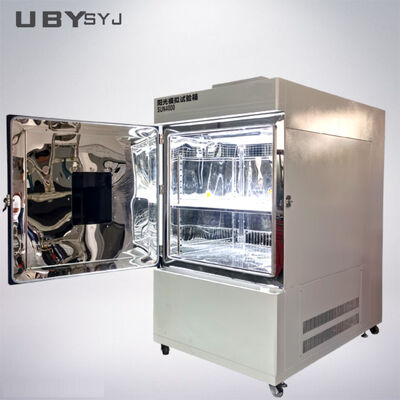

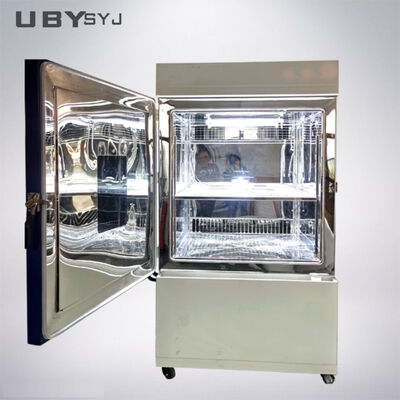

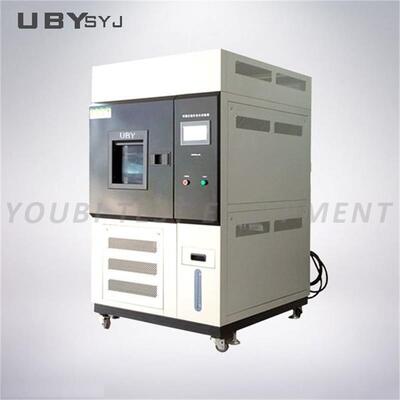

Xenon Lamp Aging Tester with 30~98%RH Humidity Range -70°C~100°C Temperature Range and Stainless Steel US304 Interior for Material Durability Testing

Product Description

UP-6117 Xenon Arc Accelerated Aging Test Chamber

The UP-6117 Xenon Lamp Aging Tester is designed for comprehensive material durability testing, simulating various environmental conditions including illumination, rain, condensation, temperature, humidity, and wind changes.

Product Overview

This advanced testing chamber features a 90-98% RH humidity range and is specifically engineered for testing non-ferrous metals, organic materials, rubber, plastics, and building materials. It provides essential data for evaluating product properties and performance to enhance quality improvement.

Technical Specifications

Parameter	Specification
Model	UP-6117
Inner Box Size (DWH)	600750500mm
Outside Dimension (DWH)	110012501750mm
Temperature and Humidity Range	-70°C~100°C; 30~98%RH
Temperature and Humidity Uniformity	±2°C; ±3%RH
Rainfall Time	1~9999min, adjustable
Rainfall Cycle	1~240min, interval adjustable
Xenon Lamp Light	Xenon long-arc lamp, 6KW±10%, 290-800nm, 1000W/m²±200
Heating/Humidifying Power	2.0KW/2.0KW
Sample Spinning Machine Speed	1~5r/min (adjustable)
Sample and Xenon Lamp Distance	300~375mm
Box Material	Stainless Steel SUS304#/Cold-rolled steel with spray
Circulation System	Single cycle, centrifugal fan
Control and Cooling System	Germany KLOCKNER-MOELLER programmable controller
Gas Processing	Discharger for bad smell and harmful gas
Power	AC380V, three phase five wire, 10KW
Use Environment	5°C~+30°C, ≤85%R.H

Standard Features

Filtering screen viewing window
Moistureproof lamp

Security Protection

Security device for circuit break
High pressure compressor protection
High temperature alarm system

Our Consultative Service Approach

1) Customer Inquiry Process

We discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.

2) Customization Process

We create detailed drawings and provide reference photos for customized requirements, confirming final solutions and pricing with customers.

3) Production and Delivery

Production follows confirmed PO requirements with progress photos provided. Final inspection includes factory or third-party calibration, comprehensive testing, and professional packing before timely delivery.

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance extended to 14 months considering sea transportation. For technical issues, contact us via email or phone - we provide solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.

How can I install and use the machine?

We provide English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
