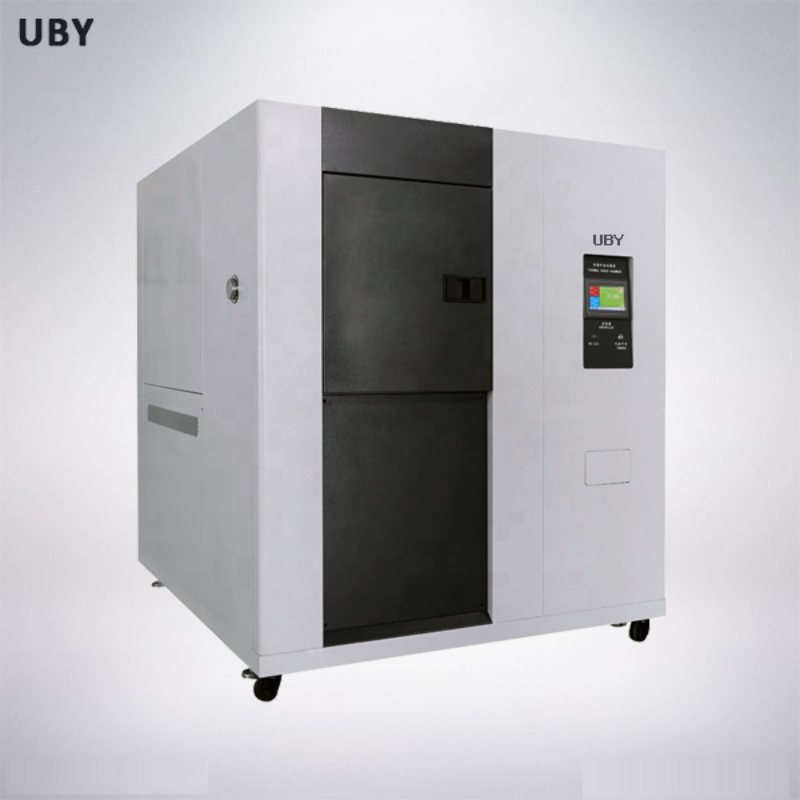

Dual Zone Impact Temperature Test Chamber With Independent Humidity Control

1 Unit
MOQ
Negotiable
Price
Dual Zone Impact Temperature Test Chamber With Independent Humidity Control
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Temperature Test Chamber
Model NO.: UP-6118
Temperature Range Of High-Temperature Ta: 80ºC~200ºC
Temperature Range Of Low-Temperature Tan: -10ºC~75ºC
Humidity Range: 85%Rh
Heating Rate: 3~5ºC/Min
Cooling Rate: 1~1.5ºC/Min
Custom Service: OEM,ODM
Highlight:

Dual Zone Impact Temperature Test Chamber

,

Temperature Impact Test Chamber

,

Temperature Environmental Chamber Humidity Control
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6118
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
Dual-Zone Impact Temperature Test Chamber with Independent Humidity Control
Advanced dual-zone temperature impact test chamber featuring independent humidity control for precise environmental testing applications.
Key Features
  • True color touch screen display with intuitive operation and 250-day historical data storage
  • Appointment on/off function with end planning settings and automatic data curve saving during power outages
  • Real-time experimental curve analysis with RS232 and USB data storage connectivity
  • Automatic return to normal temperature after testing to prevent frost and condensation
  • Servo refrigerant flow control technology achieving over 30% energy savings
  • Optimized defrost cycle: once every 3 days with 2-hour defrost duration
Applications
Suitable for battery assembly, vehicles, chemical, aerospace, metal parts, electronics, automotive spare parts, building materials, communication equipment, and plastic rubber products.
Technical Specifications
System Two-zone Three-zone test by means of damper switching
Model UP-6118-50L | UP-6118-100L | Customized
High temp. exposure range*1 +60°C to +200°C
Low temp. exposure range*1 -65°C to 0°C
Temp. fluctuation *2 ±1.8°C
Pre-heat upper limit +200°C
Temp. heat up time*3 Ambient temp. to +200°C within 30min
Pre-cool lower limit -65°C
Temp. pull down time*3 Ambient temp. to -65°C within 70min
Recovery conditions Two-zone: High temp. exposure +125°C 30 min, Low temp. exposure -40°C 30 min; Specimen 6.5 kg (specimen basket 1.5kg)
Temp. recovery time Within 10 min.
External material Cold-rolled rust-proofed steel plate
Test area material SUS304 stainless steel
Door*4 Manually operated door with unlock button
Heater Strip wire heater
System*5 Mechanical cascade refrigeration system
Compressor Hermetically sealed scroll compressor
Expansion mechanism Electronic expansion valve
Refrigerant High temp side: R404A, Low temp side: R23
Cooler Stainless steel welded plate heat exchanger
Air circulator Sirocco fan
Damper driving unit Air cylinder
Fittings Cable port with diameter 100mm on the left side (right side and tailor made diameter size are available as options), specimen power supply control terminal
Inside dimensions (W x H x D) 350 x 400 x 350 | 500 x 450 x 450 | Customized
Test area capacity 50L | 100L | Customized
Test area load 5 kg | 10 kg | Customized
Outside dimensions (W x H x D) 1230 x 1830 x 1270 | 1380 x 1980 x 1370 | Customized
Weight 800kg | 1100kg | N/A
Allowable ambient conditions +5°C to 30°C
Power supply AC380V, 50/60Hz, three phase, 30A
Cooling water supply pressure*6 0.2~0.4Mpa
Cooling water supply rate*6 8m³/h
Operating cooling water temp. range +18°C to 23°C
Noise Level 70 dB or lower
Dual Zone Impact Temperature Test Chamber With Independent Humidity Control 0 Dual Zone Impact Temperature Test Chamber With Independent Humidity Control 1 Dual Zone Impact Temperature Test Chamber With Independent Humidity Control 2
Our Service
During the entire business process, we offer consultative selling services.
Customer Inquiry Process
Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
Specifications Customize Process
Create drawings for customized requirements, provide reference photos, and confirm final solutions and pricing.
Production and Delivery Process
Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and arrange timely delivery.
Installation and After-Sale Service
Provide field installation services and comprehensive after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. We extend to 14 months considering sea transportation. For technical issues, contact us via email or phone for support within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Out of stock: 15-20 working days after payment. Urgent orders receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with logo placement.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines ship fully assembled - simply connect power and begin use. On-site installation assistance available when necessary.
