UP-6300 Laboratory IP Water Spray Test Chamber IEC60529 IPX3 IPX4

1 Unit
MOQ
Negotiable
Price
UP-6300 Laboratory IP Water Spray Test Chamber IEC60529 IPX3 IPX4
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Water Spray Test Chamber
Model No.: UP-6300
Environmental Conditional: 5ºC~+40 ºC ≤85% RH
Oscillating Tube Radius: 350mm Or 600mm
Spraying Hole Diameter: φ0.4mm
Oscillating Tube Range: ±45°, ±60°, ±90°, ±180°(theoretical Value)
Turntable Rotation Speed: 1r/min, Adjustable
Interior Material: SUS304 Stainless Steel
Highlight:

Laboratory IP Water Spray Test Chamber

,

UP-6300 Water Spray Test Chamber

,

Water Spray Test Chamber IEC60529

Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6300
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-6300 Laboratory IP Water Spray Environmental Chamber IEC60529 IPx3 IPx4
Product Overview

The Laboratory IP Water Spray Environmental Chamber is used to perform tests for evaluating the degree of protection provided by product enclosures. The level of protection against water ingress is represented by an IP code. All LIB test chambers fully comply with IEC 60529 (IP Code standard), ISO20653 and other international standards.

Our water ingress chambers have capabilities for IP testing including:

  • IP X1/X2 (drip test)
  • IP X3/X4 (spray test)
  • IP X5/X6 (jet tube test)
  • IP XX7/X8 (immersion test)
  • IP X9K (high pressure jet test)
Technical Specifications
Parameter UP-6300-90 UP-6300-140
Internal dimensions (mm) 900×900×900 1400×1400×1400
Overall dimensions (mm) 1020×1360×1560 1450×1450×2000
Volume 512 L 1728 L
Drip tray size 300×300 mm 600×600 mm
Oscillating tube radius 350 mm 600 mm
Spraying hole diameter φ0.4 mm
Oscillating tube range ±45°, ±60°, ±90°, ±180° (theoretical value)
Turntable rotation speed 1 r/min, adjustable
Controller Programmable color display touch screen controller
Water pressure control Flow meter
Water supply system Build-in water tank, Automatic water supply, Water purification system
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Standard IEC 60529, ISO20653
Environmental conditional 5ºC~+40 ºC ≤85% RH
Key Features
  • Protection against drip, spraying and splashing water
  • IPX1, IPX2, IPX3 and IPX4 tests can be performed
  • Oscillating tube and drip tray
  • Programmable color display touch screen controller
  • Ethernet and USB connectivity
  • Automatic water supply system
  • Large viewing window for observation
Product Images

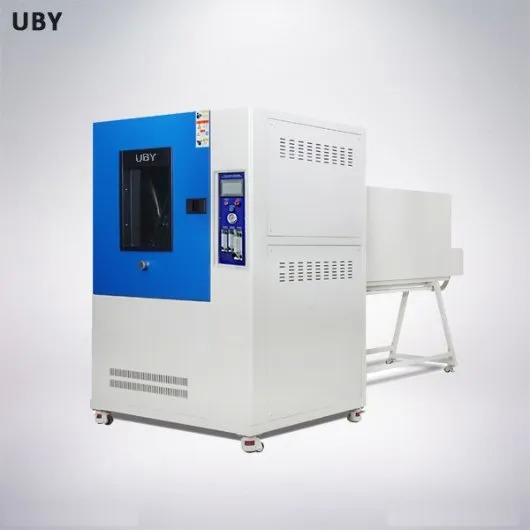

UP-6300 Laboratory IP Water Spray Test Chamber IEC60529 IPX3 IPX4 0

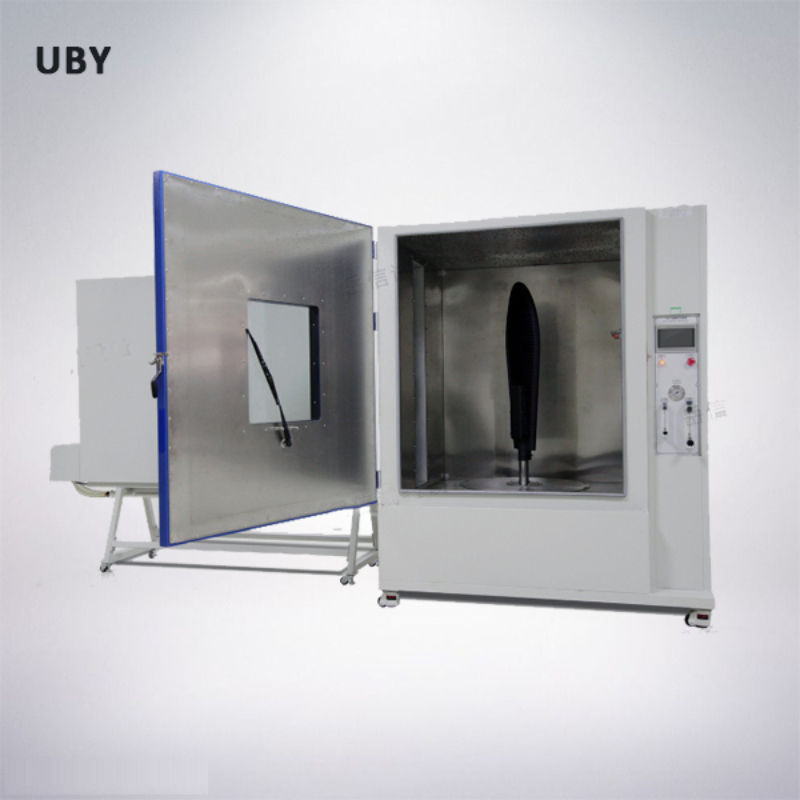

UP-6300 Laboratory IP Water Spray Test Chamber IEC60529 IPX3 IPX4 1
Our Service Process
Customer Inquiry Process

Discussing testing requirements and technical details, suggesting suitable products to customer for confirmation. Then quoting the most suitable price according to customer requirements.

Specifications Customize Process

Drawing related drawings to confirm with customer for customized requirements. Offering reference photos to show the product appearance. Then confirming the final solution and price with the customer.

Production and Delivery Process

Producing machines according to confirmed PO requirements. Providing production process photos. After completion, offering photos for customer confirmation. Performing factory calibration or third-party calibration as required. Testing all details and arranging packing. Delivering products according to confirmed shipping schedule.

Installation and After-Sale Service

Defining installation procedures for field deployment and providing comprehensive after-sales support.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months for FREE maintenance. Considering sea transportation, we can extend 2 additional months for our customers.

If your machine doesn't work, you can send us an email or call us. We will try our best to identify the problem through conversation or video chat if necessary. Once we confirm the problem, a solution will be offered within 24 to 48 hours.

What about the delivery term?

For our standard machines with available stock: 3-7 working days. For machines without stock: normally 15-20 working days after payment is received. For urgent requirements, we will make special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.

How can I install and use the machine?

Once you order testing machines from us, we will send you the operation manual or video in English version via email. Most machines are shipped fully assembled - you just need to connect the power cable and start using them. If necessary, we can also assist with on-site installation.
