High Pressure Resistant HAST Test Chamber UP-6124 Steam Aging Test Chamber

1 Unit
MOQ
Negotiable
Price
High Pressure Resistant HAST Test Chamber UP-6124 Steam Aging Test Chamber
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Hast Test Chamber
Model NO.: UP-6124
Temperature Range: Rt-132℃
Humidity Range: 65% ~ 100% Rh (Adjustable)
Pressure Time: Around 45min
Temperature Uniformability: ± 0.5 ℃
Humidity Uniformability: ± 5%
Custom Service: OEM, ODM
Highlight:

High Pressure Resistant HAST Test Chamber

,

HAST Test Chamber UP-6124

,

UP-6124 Steam Aging Test Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6124
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
Low Power Consumption High-Pressure Resistant HAST Aging Test Chamber UP-6124
Product Overview
HAST test chamber is designed to accelerate the testing process and shorten the lifespan testing of products or systems in high environments. With the improvement of semiconductor reliability, most semiconductor devices in the past can withstand long-term THB testing without failure. Therefore, the testing time for determining the quality of finished products has also increased accordingly. In order to improve testing efficiency and reduce time, the latest technology is adopted.
Operation Features
  • Unsaturated or saturated humidity control
  • Multi-mode M system (wet bulb/dry bulb) controls humidity, even during heat-up and cool-down. Fully conforms to EIA/JEDEC Test Method A100 & 102C
  • Touch-screen controller with temperature, humidity, and count-down display. Includes Ethernet Interface
  • 12 specimen power terminals, allows power-up of specimens (12 per workspace on "double" units)
  • Automatic fill of the humidity water at the start of a test
Cabinet Features
  • Inner cylinder and door shield protect specimens from dew condensation
  • Interior is cylindrical for maximum product loading
  • Two stainless steel shelves
  • Set casters for easy movement of the chamber (Except double units)
  • Push button door lock
  • Bottom of the unit allows storage space for peripheral equipment
Safety Features
  • Overheat & Over-pressure protectors
  • Door lock safety mechanism to prevent opening of the door while the chamber is pressurized
  • Specimen power control terminal: shuts down the product power in the event of an alarm
Product Specifications
Temperature Range of Saturated Steam (Operating temperature) 100ºC~135ºC, Temperature Range: 120ºC, 100Kpa/ 133ºC 200 Kpa; (143ºC is special order)
Relative Pressure/Absolute Pressure Relative pressure: display values indicated on the pressure gauge
Absolute pressure: Value that add 100 Kpa based on display values indicated on the pressure gauge (The actual value in the inner box)
Humidity of Saturated Steam 100%RH saturation steam humidity
Steam Pressure (Absolute Pressure) 101.3Kpa +0.0Kg/cm² ~ 2.0Kg/cm² (3.0Kg/cm² is special standard)
Recursive Device Steam Natural convection circulation
Safety Protective Device Water short storage protect, over pressure protect. (have automatically/manual water replenishing, automatically discharge pressure function)
Accessories Two layers stainless steel plate
Power AC 220V, 1ph 3 Lines, 50/60HZ
Product Images

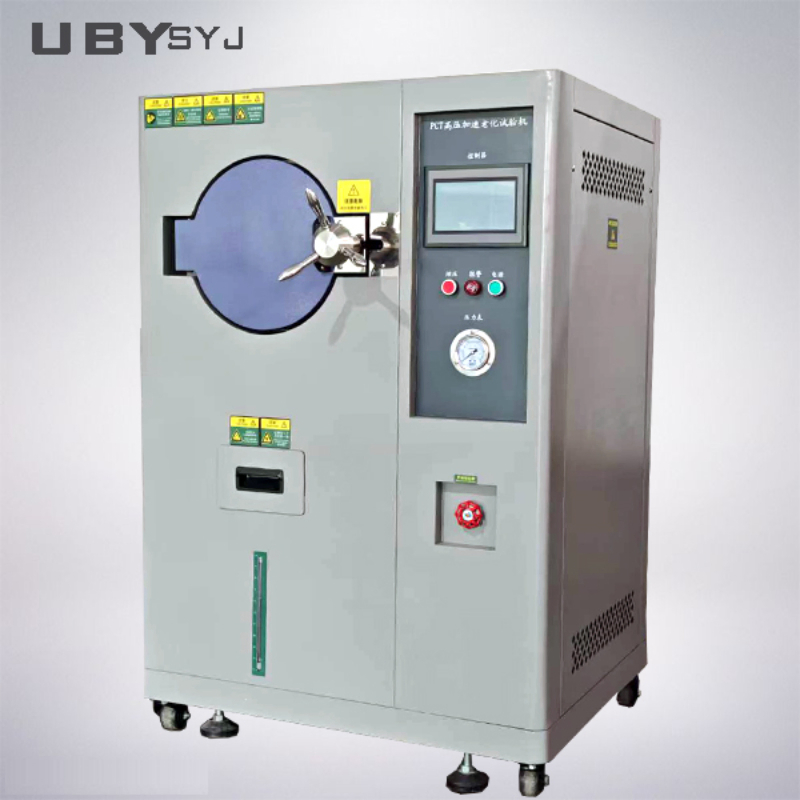

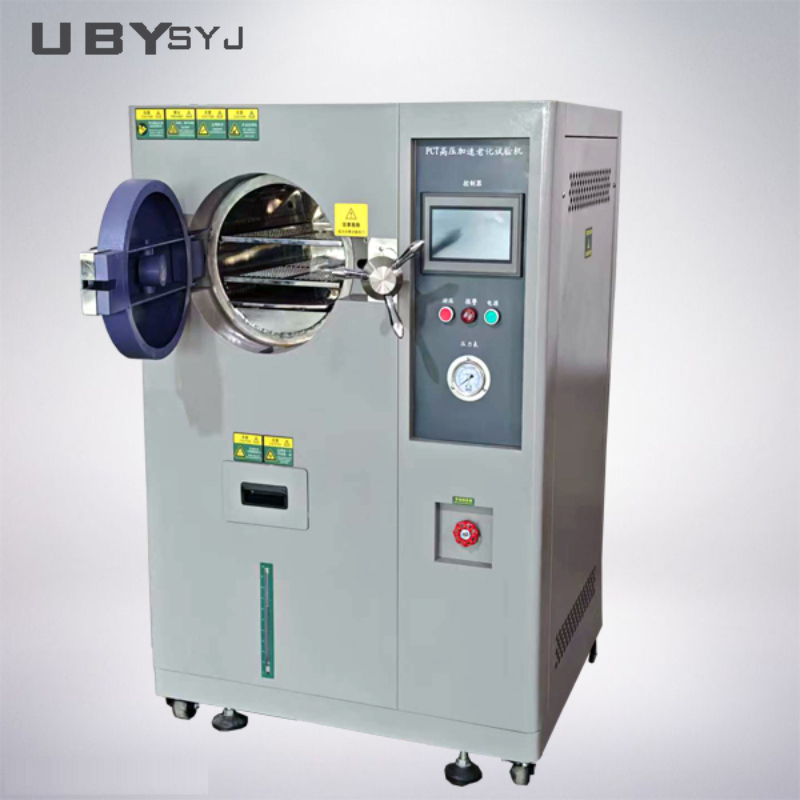

High Pressure Resistant HAST Test Chamber UP-6124 Steam Aging Test Chamber 0 High Pressure Resistant HAST Test Chamber UP-6124 Steam Aging Test Chamber 1 High Pressure Resistant HAST Test Chamber UP-6124 Steam Aging Test Chamber 2
Our Service
During the whole business process, we offer Consultative Selling services.
  1. Customer inquiry process: Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
  2. Specifications customize process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
  3. Production and delivery process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
  4. Installation and after-sale service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.
Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
