OEM ODM Constant Humidity Temperature Test Chamber UP-6195 With Uniform Airflow

1 Unit
MOQ
Negotiable
Price
OEM ODM Constant Humidity Temperature Test Chamber UP-6195 With Uniform Airflow
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Constant Humidity Temperature Test Chamber
Model NO.: UP-6195
Humidity Range: 20%~98%
Humidity Uniformity: ±3%Rh
Temperature Uniformity: ±2ºC
Temperature Range: -70~180ºC
Warranty: 1 Year
Additional Service: Support Customer Customization
Custom Service: OEM,ODM
Specification: Refer To The Actual Size Specifications
Highlight:

OEM Constant Humidity Temperature Test Chamber

,

ODM Constant Humidity Temperature Test Chamber

,

Constant Temperature Humidity Chamber UP-6195
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6195
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
High-performance Constant Humidity Temperature Test Chamber with Uniform Airflow
Product Overview

This high-performance environmental test chamber simulates various climate conditions for testing material performance including heat resistance, dry resistance, humidity resistance, and cold resistance. The equipment helps define and validate material performance characteristics under controlled environmental conditions.

Design Standards

GB2423/T5170/10586/10592, IEC68, GJB150, JIS C60068, ASTM D4714, CNS3625/12565/12566

Technical Specifications
Parameter 100L 150L 225L 408L 800L 1000L
Inner Box Size (W×D×H mm) 400×400×500 500×500×600 600×500×750 800×600×850 1000×800×1000 1000×1000×1000
Carton Size (W×D×H mm) 680×1550×1450 700×1650×1650 800×1650×1750 1000×1700×1870 1200×1850×2120 1200×2050×2120
Heating Time to 150°C (min) 35 40 40 40 45 45
Cooling Time to -40°C (min) 60 60 60 60 60 60
Cooling Time to -70°C (min) 100 100 100 100 100 100
Power (kW) 5.5 6.5 6 6.5 7.5 8
Weight (kg) 200 250 300 400 600 700
Performance Parameters
Temperature & Humidity Range Low: -70°C/-40°C, High: 150°C, Humidity: 20%RH-98%RH
Temperature & Humidity Uniformity Temperature: ±2°C, Humidity: ±3%RH
Construction Details
Inner Box Material #304 2B stainless steel plate, 1.0mm thick
Outer Box Material Electrostatic spraying cold rolled painted steel plate, 1.2mm thick
Moisturizing Material Rigid foam and glass wool
Air Circulation Centrifugal fan + wide-band forced air circulation (push-out and push-down)
Refrigeration System Air-cooled, single-stage or cascade refrigeration using French Taikang or American Emerson compressors
Refrigerants R404A, R23A
Heater Nichrome heating wire heater
Humidifier Stainless steel sheathed humidifier
Water Supply Water pump lifting system
Standard Accessories Test hole cover (medium 50), 1 partition, 2 gauze, 3 pcs
Safety & Protection Systems

Pressure relief port, explosion-proof door lock, non-bass switch, protective wire, over temperature protection, anti-dry burning protection, water shortage protection, compressor overpressure/overheating/overcurrent protection, emergency shutdown

Power Requirements

13W AC220V±10% 50/60Hz | 5W AC380/415V±10% 50/60Hz

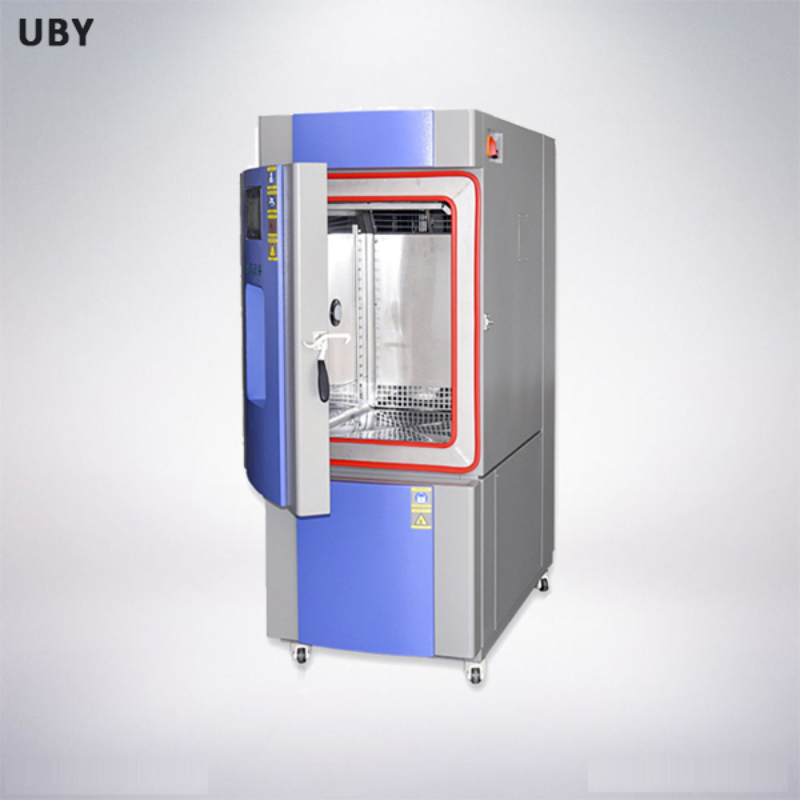

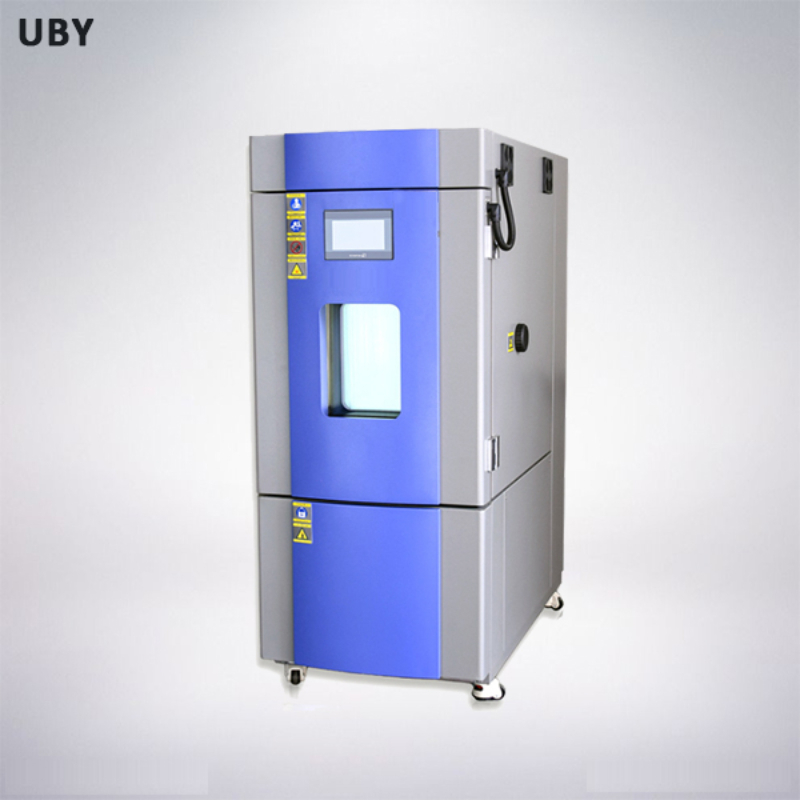

Product Images
OEM ODM Constant Humidity Temperature Test Chamber UP-6195 With Uniform Airflow 0 OEM ODM Constant Humidity Temperature Test Chamber UP-6195 With Uniform Airflow 1
Customer Service Process
  • Inquiry Process: Technical consultation, requirement analysis, and product recommendation with competitive pricing
  • Customization Process: Engineering drawings, visual references, and final solution confirmation
  • Production & Delivery: Manufacturing according to specifications, progress updates, calibration services, and timely shipping
  • Installation & Support: On-site installation and comprehensive after-sales service
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. All machines include 12-month warranty with extended coverage for sea transportation. Technical support is available via email, phone, or video chat with solutions provided within 24-48 hours.

What is the delivery time?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Expedited delivery available for urgent requirements.

Do you accept customization and OEM services?

Yes, we offer both standard and customized machines according to specific requirements, including OEM and ODM services with customer branding.

How do I install and operate the equipment?

We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
