Home /Products/Environmental Test Chamber/Pressure Cooker Aging Test Chamber with Automatic Adding Water Function and 100%Rh Humidity Range for Precise ≤± 0.5ºC Control

Pressure Cooker Aging Test Chamber with Automatic Adding Water Function and 100%Rh Humidity Range for Precise ≤± 0.5ºC Control

1 Unit
MOQ
Negotiable
Price
Pressure Cooker Aging Test Chamber with Automatic Adding Water Function and 100%Rh Humidity Range for Precise ≤± 0.5ºC Control
Features Gallery Product Description Chat Now
Features
Specifications
Name: Accelerated Aging Test Chamber
Model NO.: UP-6125
Temperature Range: 100ºC~+135ºC
Humidity Range: 100%Rh
Control Accuracy: ≤± 0.5ºC
Temp Uniformity: <±0.5ºC
Resolution Accuracy: 0.1ºC
Time Scale: 0 To 999 Hours Adjustable
Highlight:

High Pressure Accelerated Aging Test Chamber

,

Accelerated Aging Test Chamber 3 Phase

,

Accelerated Aging Test Chamber 380V
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6125
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
Pressure Cooker Aging Test Chamber with Automatic Adding Water Function
Product Overview

The Pressure Cooker Aging Test Chamber is designed to test products and materials in harsh temperatures, saturated humidity (100% R.H. saturated water vapor), and pressure environments. This high humidity resistance test equipment evaluates various critical factors including the absorption rate of printed circuit boards (PCB or FPC), moisture resistance of semiconductor packaging, circuit breaks caused by corrosion in dynamic metallization areas, and short circuits caused by pollution between package pins.

Key Features
  • Automatic adding water function with automatic filling when water storage is low during testing
  • Automatic operation for complete test process, easy to use
  • Precise temperature control with LED digital temperature controller
  • LED digital timer starts timing when inner box temperature reaches setting value
  • Accurate pressure and relative humidity display via temperature chart
  • Automatic discharge of non-saturated steam for optimal steam quality
  • Integrated silicone gel door gasket for excellent air tightness and long operation life
  • Mirror-polished inner box, graceful and non-polluting
Technical Specifications
Parameter Model 1 Model 2 Model 3 Model 4
Inner Size mm (Diameter*Height) 300*500 400*500 300*500 400*500
External Size 650*1200*940 650*1200*940 650*1200*940 750*1300*1070
Temp Range 100ºC ~ +132ºC saturated-steam temperature
Pressure Range 0.2~2kg/cm² (0.05~0.196MPa) 0.2~3kg/cm² (0.05~0.294MPa) 0.2~2kg/cm² (0.05~0.196MPa) 0.2~3kg/cm² (0.05~0.294MPa)
Pressurization Time About 45min About 55min About 45min About 55min
Temp Uniformity <±0.5ºC
Temp Fluctuation ≤±0.5ºC
Humidity Range 100% R.H (saturated-steam humidity)
Controller Button or LCD controller, optional
Resolution Temp: 0.01ºC Humidity: 0.1% RH, Pressure 0.1kg/cm², Voltage: 0.01DCV
Temp Sensor PT-100 ohmΩ
External Material SUS 304 with Painting coating
Internal Material SUS 304 with Glass Wool
BIAS Terminal Optional, with extra cost
Power 3 Phase 380V 50Hz/ customized
Safety Systems
  • Sensor protection
  • Phase 1 High temp protection
  • Phase 1 High pressure protection
  • Voltage overload and monitoring
  • Manual adding water
  • Automatic depressurize and automatic water withdraw when machine in fault
  • Fault code displays for checking solution
  • Fault in record
  • Grounding wire leakage protection
  • Motor overload protection
Product Images

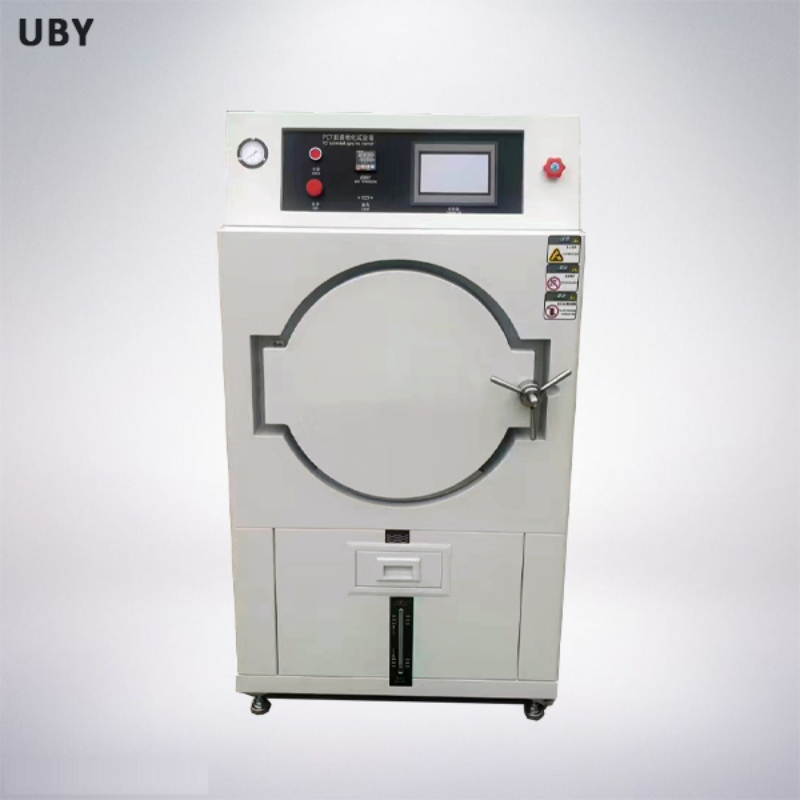

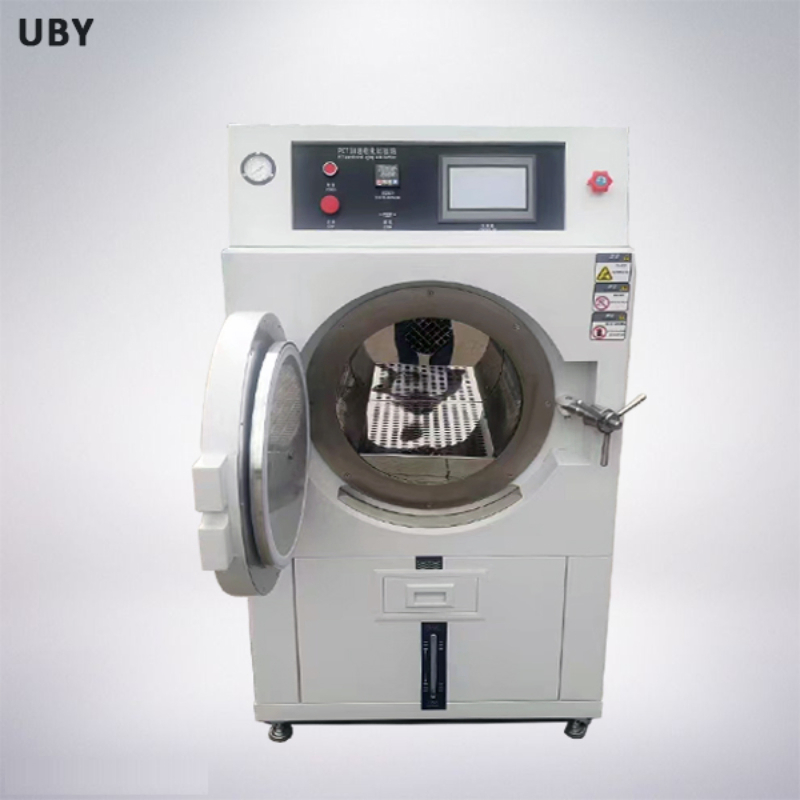

Pressure Cooker Aging Test Chamber front view Pressure Cooker Aging Test Chamber interior view Pressure Cooker Aging Test Chamber control panel
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization: Create drawings for customized requirements, provide reference photos, and confirm final solution and pricing
  • Production and Delivery: Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and arrange timely delivery
  • Installation and After-Sales: Provide installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of FREE maintenance, with an additional 2-month extension to account for sea transportation. If your machine experiences issues, you can contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment receipt. We can accommodate urgent requests with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email after order confirmation. Most machines are shipped fully assembled - you simply need to connect the power cable to begin operation. If necessary, we can provide on-site installation assistance.
