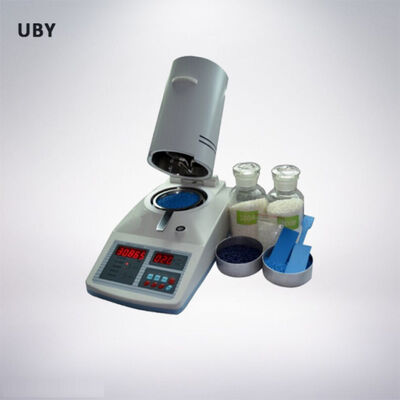

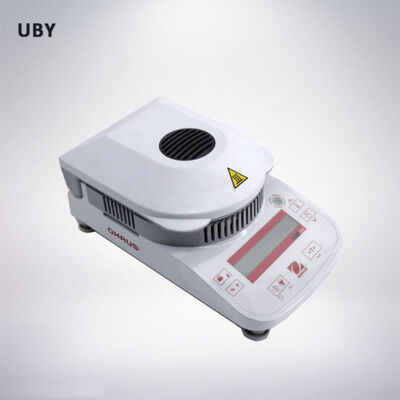

UP-5016 Electronic Versatile Moisture Analyzer
Advanced moisture measurement instrument with multiple calibration scales for different materials, featuring precise halogen and infrared heating technology.
Applications
Ideal for rapid moisture measurement across multiple industries including pharmaceuticals, food processing, agriculture, textiles, chemicals, plastics, rubber, paper, and laboratory research applications.
Technical Specifications
| Parameter |
Model 1 |
Model 2 |
Model 3 |
Model 4 |
| Capacity (metric) |
45 g |
35 g |
110 g |
110 g |
| Readability (metric) |
0.001 g |
0.002 g |
0.005 g |
0.01 g |
| Repeatability (Std. Dev.) |
0.05% (3g sample) - 0.015% (10g sample) |
0.18% (3g sample) - 0.05% (10g sample) |
0.1% / 0.01g |
0.3% (3g sample) 0.2% (10g sample) |
| Moisture Range |
0.01% to 100% (0.01% to 1000% for regain mode) |
0.05% to 100% |
3g to 20g typical, 0.5g min. |
3g to 20g typical, 0.5g min. |
| Interface |
Bi-directional RS-232 |
Bi-directional RS-232 |
Bidirectional RS-232 |
Bidirectional RS-232 |
| Timer |
1 - 120 minutes |
1 - 120 minutes |
1-99 minutes, 30 second increments to 60 minutes |
1 - 99 minutes, 30-second increments to 60 minutes |
| Heat source |
Halogen |
Halogen |
Halogen |
Infrared (no glass) |
| Temperature settings |
50° to 200° in 1°C increments |
50° to 160° in 5°C increments |
50°C to 160°C in 5° increments |
50°C to 160°C in 5° increments |
| Power Requirements |
120, 240 VAC 50/60 Hz |
120, 240 VAC 50/60 Hz |
100 to 240 VAC, 50/60 Hz |
100 to 240 VAC, 50/60 Hz |
| Tare range |
To capacity by subtraction |
To capacity by subtraction |
To capacity by subtraction |
To capacity by subtraction |
| Operating Temperature Range |
50° to 104° F / 10° to 40° C |
50° to 104° F / 10° to 40° C |
41° to 104°F / 5° to 40°C |
41° to 104°F / 5° to 40°C |
| Display |
128 x 64 Pixel Graphical Backlit LCD Display |
128 x 64 Pixel Graphical Backlit LCD Display |
Custom backlit LCD |
Custom backlit LCD |
| Information displayed |
% moisture, % solids, time, temperature, weight, test ID, drying curve |
% moisture, time, temperature, weight |
% moisture or % solids or weight (g), temperature, time |
% moisture or % solids or weight (g), temperature, time |
| Pan size (Dia.) (in/cm) |
3.54 / 90 |
3.54 / 90 |
3.5 inch / 90 mm |
3.5 inch / 90 mm |
| Dimensions WxHxD (in/cm) |
7.5 x 6 x 14.2
19 x 15.2 x 36 |
7.5 x 6 x 14.2
19 x 15.2 x 36 |
6.5 x 5 x 11 inches / 17 x 13 x 28 cm |
6.5 x 5 x 11 inches / 17 x 13 x 28 cm |
| Net Wt. (lb/kg) |
10.1 / 4.6 |
10.1 / 4.6 |
5 lb / 2.3 kg |
5 lb / 2.3 kg |
| Shipping Wt. (lb/kg) |
14.1 / 6.4 |
14.1 / 6.4 |
8.5 lb / 3.9 kg |
8.5 lb / 3.9 kg |
Product Images
Our Service Commitment
We provide comprehensive consultative selling services throughout the entire business process:
Customer Inquiry Process
- Detailed discussion of testing requirements and technical specifications
- Product recommendations based on application needs
- Competitive pricing according to customer requirements
Customization Process
- Technical drawings and specifications confirmation
- Reference photos for product appearance verification
- Final solution and pricing confirmation
Production and Delivery
- Manufacturing according to confirmed purchase order requirements
- Production progress photos and updates
- Factory calibration or third-party calibration services
- Comprehensive quality testing and secure packaging
- Timely delivery with shipping notifications
Installation and After-Sales Support
- Professional field installation services
- Comprehensive after-sales technical support
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of environmental chambers, testing equipment for leather, shoes, plastics, and rubber. All machines include 12-month warranty with extended coverage for sea transportation. Technical support is available via email, phone, or video chat with solutions provided within 24-48 hours.
What is the delivery time?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority scheduling.
Do you accept customization and branding?
Yes, we offer comprehensive OEM and ODM services including custom specifications and logo placement according to your requirements.
How do I install and operate the machine?
We provide complete English operation manuals and instructional videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when required.
