UP-5037 ISO 6940 ISO 6941 Compliant Textile Vertical Burning Test Apparatus with 40 ± 2 mm Flame Height and High-voltage Electronic Ignition

1 Unit
MOQ
Negotiable
Price
UP-5037 ISO 6940 ISO 6941 Compliant Textile Vertical Burning Test Apparatus with 40 ± 2 mm Flame Height and High-voltage Electronic Ignition
Features Gallery Product Description Chat Now
Features
Specifications
Type: Textile Testing Equipment
Model NO.: UP-5037
Service Support: OEM ODM
Language: Chinese And English
Sample Holder: L422 × W89 × H2 Mm
Flame Height: 40 ± 2 Mm
Gas Pressure (at Burner Inlet): 17.2 KPa ± 1.7 KPa
Environmental Temperature:: -10 ºC To 30 ºC
Applications: Textile, Fabric And Etc.
Specification: Refer To The Actual Size Specifications
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5037
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Paypal,Western Union,Money Gram
Supply Ability: 20 Unit/monty
Product Description
UP-5037 Accurate Textile Vertical Burning Test Apparatus

The UP-5037 Textile Vertical Burning Test Chamber is designed for determining the flame retardant properties of various textile materials including woven fabrics, knitted fabrics, coated products, laminated products, and curtains. This apparatus features precise testing capabilities, rational structure design, and simple operation.

Widely utilized by textile manufacturers, universities, research institutes, and inspection departments.

Compliance Standards

ISO 6940, ISO 6941, ASTM D6431, GB5455-2014, and equivalent standards.

Technical Specifications
Item Description
Combustion Gas Source Industrial propane or butane (provided by user)
Sample Holder L422 × W89 × H2 mm
Test Specimens (L300 × W80) mm, 5 pieces in warp direction and 5 pieces in weft direction respectively
Burner Inner diameter: φ11 mm, burner tube tilted at 25° from vertical
Flame Height 40 ± 2 mm
Gas Pressure (at burner inlet) 17.2 kPa ± 1.7 kPa
Flame Application Timer 99.99 h/min/s, adjustable
Afterflame Timer 99.99 h/min/s, adjustable
Afterglow Timer 99.99 h/min/s, adjustable
Ignition System High-voltage electronic ignition
Overall Dimensions (W×D×H) L647 × W350 × H857 mm
Power Supply 220V ± 10%, 50Hz; Total power: 300W

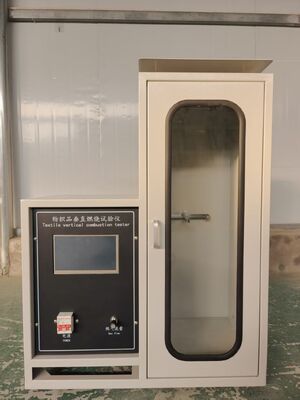

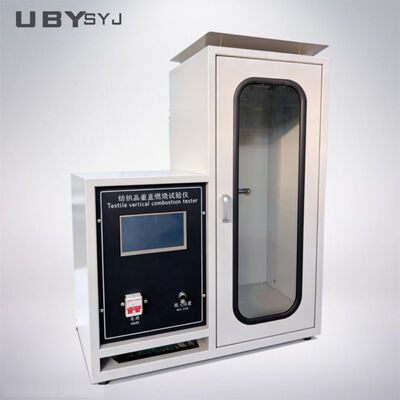

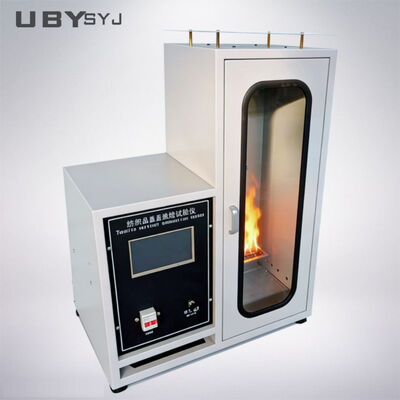

Product Images
UP-5037 ISO 6940 ISO 6941 Compliant Textile Vertical Burning Test Apparatus with 40 ± 2 mm Flame Height and High-voltage Electronic Ignition 0 UP-5037 ISO 6940 ISO 6941 Compliant Textile Vertical Burning Test Apparatus with 40 ± 2 mm Flame Height and High-voltage Electronic Ignition 1 UP-5037 ISO 6940 ISO 6941 Compliant Textile Vertical Burning Test Apparatus with 40 ± 2 mm Flame Height and High-voltage Electronic Ignition 2
Our Service Commitment

We provide comprehensive Consultative Selling services throughout the entire business process:

  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization Process: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions
  • Production & Delivery: Manufacture according to confirmed specifications, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Provide field installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months to account for sea transportation.

For technical support, contact us via email or phone. We will diagnose issues through conversation or video chat and provide solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days

Standard machines not in stock: 15-20 working days after payment

We accommodate urgent requirements with special arrangements

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specifications. We provide OEM and ODM services, including adding your logo to the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. When necessary, we offer on-site installation assistance.
