UP-5016 Digital Halogen Moisture Analyzer with 0.001g Readability 5-inch LCD Screen and High-Efficiency Halogen Lamp

1 Unit
MOQ
Negotiable
Price
UP-5016 Digital Halogen Moisture Analyzer with 0.001g Readability 5-inch LCD Screen and High-Efficiency Halogen Lamp
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-5016
Readability Of Weighing: 0.001g~0.005g
Readability Of Moisture Content: 0.0001
Accuracy Of Moisture Temperature: ±0.5%(≥3g)
Allowable Error Of Temperature Control Adjustment: ±1ºC
Pan Size : 100mm Stainless Steel
Heating Source: High-efficiency Halogen Lamp
Display Screen: 5-inch LCD Screen
Language: Chinese And English
Service Support: OEM ODM
Highlight:

0.001g readability Halogen Moisture Analyzer

,

5-inch LCD screen Moisture Content Testing Instrument

,

High-efficiency halogen lamp Digital Moisture Meter

Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5016
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Paypal,Western Union,Money Gram
Supply Ability: 20 Unit/monty
Product Description
UP-5016 Digital Halogen Moisture Analyzer Fast Moisture Content Testing Instrument
Product Introduction

The Halogen Moisture Meter is a portable, high-precision rapid moisture testing device based on the thermogravimetric principle. It utilizes high-efficiency halogen heating technology to achieve uniform and fast sample drying, paired with a high-sensitive precision weighing sensor and intelligent temperature control system. The instrument automatically detects, calculates, and displays sample moisture content, dry weight, and other test data in real time. Compared with traditional oven drying methods, it offers faster testing speed, higher accuracy, and better data stability. Fully automatic operation minimizes manual errors, enabling efficient and reliable moisture analysis.

Standards Compliance

ISO 662, ISO 712, ISO 1026, ASTM D2216, ASTM D4944, AOAC 925.10, EN 13183-1

Applications

This moisture meter is widely used across industries requiring rapid moisture measurement, including pharmaceuticals, food, feed, seeds, rapeseed, dehydrated vegetables, tobacco, chemicals, tea, meat, textiles, agriculture, forestry, paper, rubber, plastics, and various laboratory and production processes.

Technical Specifications
Type Halogen Moisture Analyzer
Maximum Weighing Range 0g~110g
Weighing Sensor Load Cell
Temperature Sensor PT-100-2
Moisture Resolution 0.01% / 0.001% (Optional)
Range of Moisture 90.00%-10.00%
Readability of Moisture 0.02%-0.10%
Range of Dry Weight 90.00%-10.00%
Readability of Dry Weight 0.02%-0.10%
Real-time Curve Real-time Dynamic Curve
Display Mode 5 inch touch screen
Heating Mode Halogen Lamp
Heating Temperature Range 50℃ - 200℃
Temperature Setting 1ºC
Size of Sample Pan 96mm (20pcs)
Store Records 20 groups
Space of Testing 30mm
Voltage 110V/220V 50/60HZ
Package Size 415*310*255mm

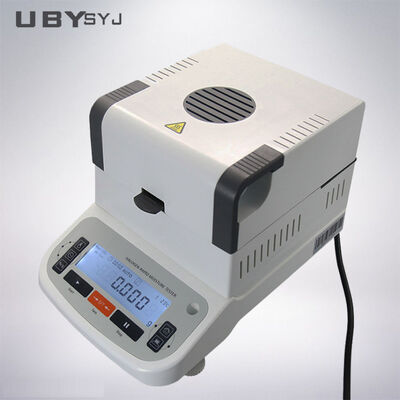

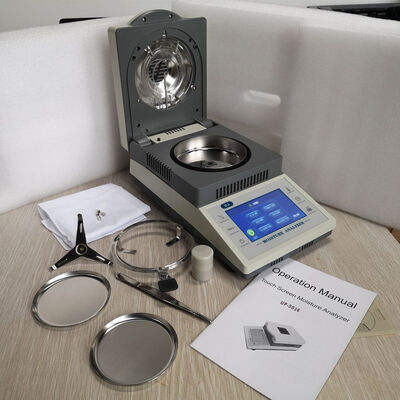

UP-5016 Digital Halogen Moisture Analyzer front view showing display and controls UP-5016 Digital Halogen Moisture Analyzer side view and sample pan
Our Service

Throughout the entire business process, we offer consultative selling services:

  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
  • Specifications Customization Process: Create drawings and reference photos for customized requirements, confirm final solutions and pricing.
  • Production and Delivery Process: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery.
  • Installation and After-Sales Service: Provide field installation support and comprehensive after-sales service.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation. If your machine experiences issues, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

2. What about the delivery term?

For standard machines in stock: 3-7 working days. For out-of-stock items: 15-20 working days after payment receipt. Urgent orders receive special arrangements.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

4. How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable and begin operation. On-site installation assistance is available when necessary.
