Home /Products/Lab Testing Equipment/Mooney Viscometer Rubber Testing Equipment with Temperature Control up to 200°C and 2 rpm Rotor Speed for ASTM-D1646 and ISO 289 Standards

Mooney Viscometer Rubber Testing Equipment with Temperature Control up to 200°C and 2 rpm Rotor Speed for ASTM-D1646 and ISO 289 Standards

1
MOQ
4000
Price
Mooney Viscometer Rubber Testing Equipment with Temperature Control up to 200°C and 2 rpm Rotor Speed for ASTM-D1646 and ISO 289 Standards
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-5009
HS Code: 9024800000
Service Support: OEM ODM
Language: Chinese And English
Temperature Control Range: Ambient ~ 200°C
Temperature Display Resolution: 0.01°C
Temperature Control Accuracy: ±0.3°C
Rotor Speed: 2 Rpm ±0.02 Rpm
Applications: For Plastic, Rubber, Fiber, Foam, Film, And Film
Specification: Refer To The Actual Size Specifications
Highlight:

Mooney viscometer for rubber testing

,

Viscometer with ±0.3°C temperature control

,

Rubber testing viscometer 2 rpm rotor
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5009
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
Mooney Viscometer UP-5009
Professional equipment for testing raw rubber compounds and scorch properties, designed to evaluate viscosity and processing characteristics of uncured rubber materials.
Product Introduction
The Mooney Viscometer is essential equipment in the rubber industry for measuring viscosity and scorch characteristics of uncured rubber (raw rubber and mixed rubber). It evaluates rubber's machining performance by measuring resistance to rotor rotation.
Multi-functional Design: One machine serves three purposes - simultaneously performing Mooney viscosity, vulcanization scorch, and stress relaxation tests to meet diverse rubber industry testing requirements.
Compliance Standards
  • ASTM-D1646 - Mooney viscosity and scorch test standard
  • ISO 289-1 - Mooney viscosity
  • ISO 289-2 - Pre-vulcanization characteristics
  • ISO 289-3 - Mooney value increment
  • ISO 289-4 - Stress relaxation
Technical Parameters
Parameter Specification
Control temperature range Normal temperature ~ 200°C
Temperature display resolution 0.01°C
Temperature control accuracy ±0.3°C
Calibration accuracy Mooney value ±0.5
Rotor speed 2 rotation/min ±0.02 rotation/min
Torque range Mooney value 0~200
Torque resolution Mooney value 0.1
Print content Date, time, temperature, Mooney scorch curve and MV, T5, T35, T3, T18, @15, @30
Power 50Hz, ~220V±10%
Product Images

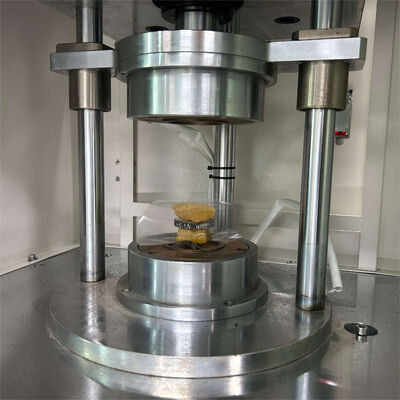

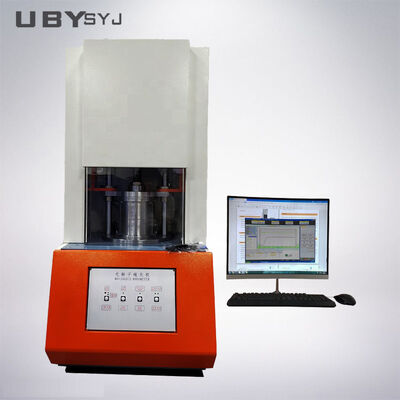

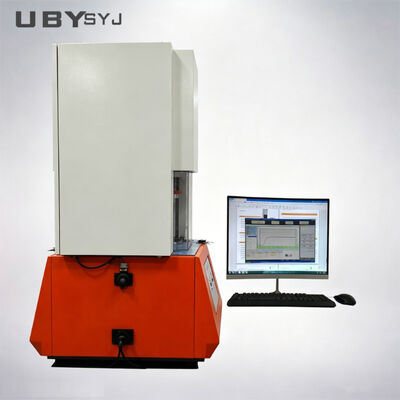

Mooney Viscometer UP-5009 front view showing control panel and display Close-up view of Mooney Viscometer testing chamber and rotor mechanism Mooney Viscometer side view showing construction and components
Our Service Commitment
We provide comprehensive consultative selling services throughout the entire business process:
Customer Inquiry Process
Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.
Customization Process
Create detailed drawings for custom requirements, provide reference photos for product appearance confirmation, and finalize solutions with pricing.
Production and Delivery
Manufacture according to confirmed requirements, provide production progress photos, conduct factory or third-party calibration, and ensure proper packaging and timely delivery.
Installation and After-Sales
Provide field installation support and comprehensive after-sales service to ensure optimal equipment performance.
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic/rubber testing equipment. All machines include a 12-month warranty with free maintenance. Extended warranty available for sea transportation. Technical support provided via email, phone, or video chat with solutions within 24-48 hours.
What is the delivery time?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Expedited arrangements available for urgent requirements.
Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to specific requirements, including OEM and ODM services with customer logos.
How do I install and operate the machine?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
