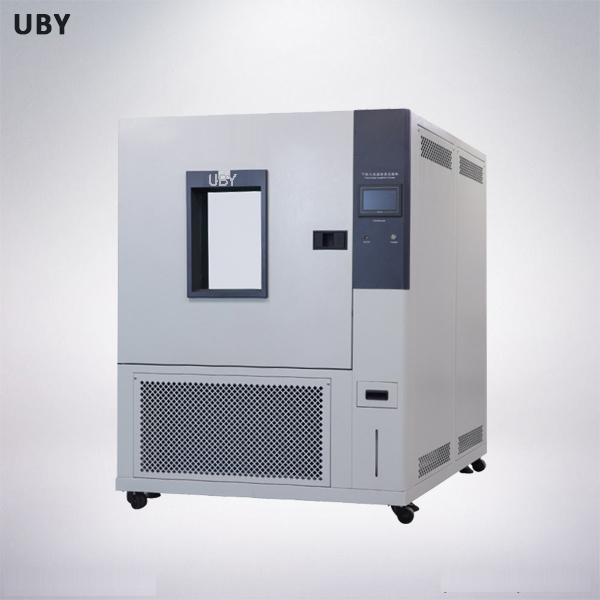

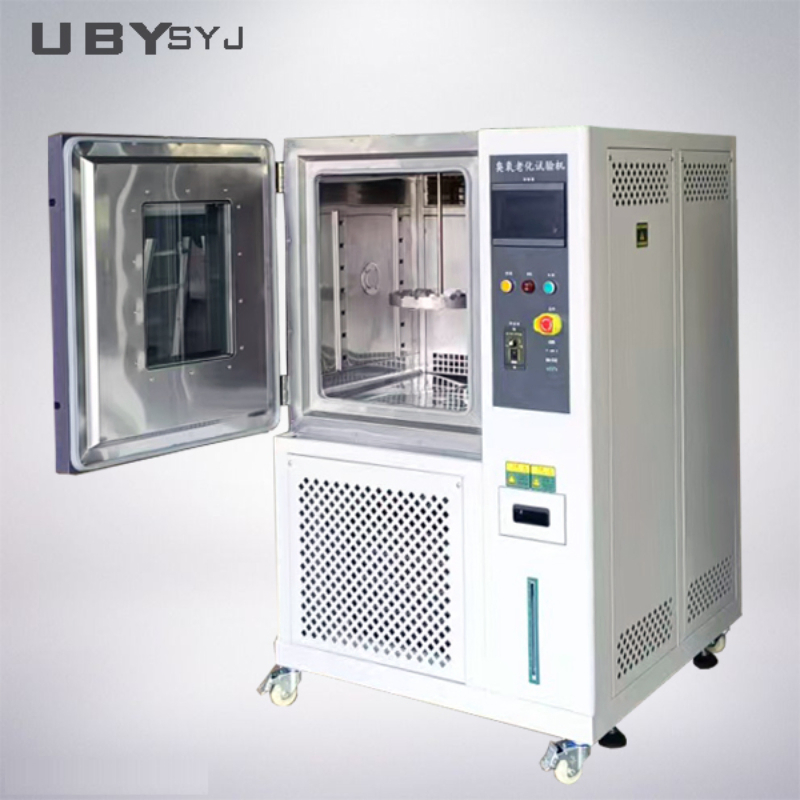

Precise Control Constant Temperature Humidity Chamber IEC60068 GJB150 JIS C60068

• Temperature Range: Low Temperature (A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) / High Temperature: 150°C
• Humidity Range: 20%~98% R.H. (10%-98% R.H. / 5%-98% R.H. optional, requires dehumidifier)
• Indication Resolution / Distribution Uniformity: 0.1°C; 0.1% R.H. / ±2.0°C; ±3.0% R.H.
• Control Accuracy: ±0.5°C; ±2.5% R.H.
• Temperature Rising/Falling Velocity: Rising approx. 0.1~3.0°C/min; Falling approx. 0.3~1.0°C/min (faster rates optional)
• Inner and Outer Material: Interior: SUS 304# stainless steel; Exterior: stainless steel or cold-rolled steel with paint coating
• Insulation Material: Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
• Cooling System: Wind cooling or water cooling (single segment compressor -40°C, double segment compressor -70°C)
• Compressor: French Tecumseh Brand, Germany Bizer Brand
• Power: AC220V 1Ph 3 lines, 50/60Hz or AC380V 3Ph 5 lines, 50/60Hz

• Fuse-free switch
• Overloading protection switch for compressor
• High and low voltage coolant protection switch
• Over-humidity and over-temperature protection switch
• Fuses
• Fault warning system
• Water short storage warning protection

• Inner door with operation hole
• Recorder
• Water Purifier
• Dehumidifier

Discuss testing requirements and technical details, suggest suitable products, and provide pricing based on customer requirements.

Create drawings for customized requirements, provide reference photos, confirm final solution and pricing.

Manufacture according to confirmed PO requirements, provide production photos, conduct factory or third-party calibration, arrange packing and delivery.

Provide field installation and ongoing after-sales support.
