Home /Products/Lab Testing Equipment/Large Capacity Rapid Temperature Cycle Test Chamber with 10℃/min Non-linear and Water Cooled System

Large Capacity Rapid Temperature Cycle Test Chamber with 10℃/min Non-linear and Water Cooled System

1 Unit
MOQ
$5999~$9999
Price
Large Capacity Rapid Temperature Cycle Test Chamber with 10℃/min Non-linear and Water Cooled System
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Constant Temperatrue And Humidity Chamber
Custom Service: OEM,ODM
Warranty: 1 Year
Temperature Range: -60ºC~180ºC
Temperature Uniformity: ±2.0℃
Temperature Accuracy: ±0.1ºC
Heating Time: 10°C/min (non-linear，no Load)
Cooling Time: 10°C/min (non-linear，no Load)
Highlight:

10℃/min Non-linear Rapid Temperature Cycle Test Chamber

,

Water Cooled Environmental Test Chamber

,

Large Capacity Temperature Humidity Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6195
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5~15 work days
Payment Terms: T/T; D/P; Wester Union; Paypal;
Supply Ability: 20 Unit/month
Product Description
Rapid Temperature Cycle Test Chamber Water Cooled 10℃/min Non-linear UP-6195
Product Overview

Large-capacity rapid temperature change test chamber is a high-performance environmental testing equipment customized for industrial high-standard temperature cycling and rapid temperature shock tests. Adopting water-cooled refrigeration system and non-linear fast temperature change technology, it achieves a stable temperature change rate of 10℃/min, supporting fast cooling from 80℃ to -40℃ and fast heating from -40℃ to 80℃.

The equipment features a dual-door integrated structure with a 1.2m×1.2m×1.2m inner cavity, large test space, stable operation and high test repeatability. It is widely applied for environmental stress screening, temperature durability and reliability testing of electronic components, automotive parts, new energy products and industrial materials.

Applications

Suitable for reliability testing and quality inspection of various industries, including consumer electronics, automotive electronic parts, new energy batteries and components, aerospace accessories, communication equipment, hardware materials, plastic and rubber products, precision instruments, etc. It meets environmental stress screening (ESS), temperature cycle test and rapid temperature change aging test requirements.

Technical Specifications
Item Technical Specification & Custom Requirement
Internal Chamber Size 1.2m × 1.2m × 1.2m (Customized)
Chamber Volume 1728L
Door Structure Double open door design
Temperature Range -60℃ ~ +180℃ (Adjustable)
Heating Time 10°C/min (non-linear, no load)
Cooling Time 10°C/min (non-linear, no load)
Cooling Method Water cooling system
Reserved Test Holes Two 100mm diameter holes (left and right side each one)
Network Configuration Equipped with 50 meters network cable
Computer Configuration Comes with one set of non-brand industrial computer
Chamber Height from Floor 620mm distance between chamber bottom and ground floor
Controller Installation Position Installed on the upper part of the left door
Power Supply 380V/50Hz, 48KW/100A (Standard industrial power)
Product Images

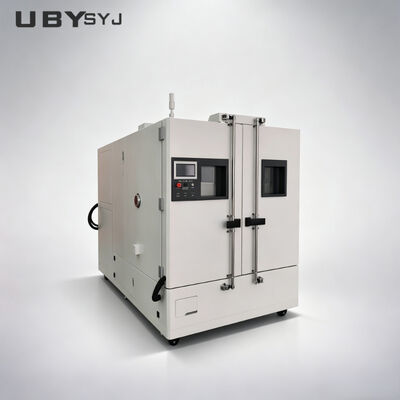

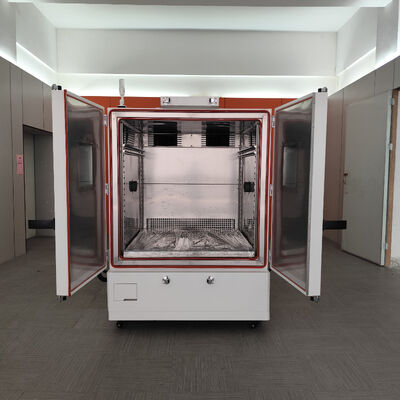

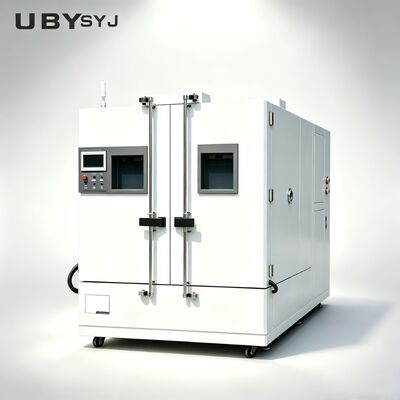

Rapid Temperature Cycle Test Chamber exterior view Rapid Temperature Cycle Test Chamber interior view Rapid Temperature Cycle Test Chamber control panel
Our Service

During the whole business process, we offer Consultative Selling services.

  • Customer Inquiry Process: Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
  • Specifications Customize Process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
  • Production and Delivery Process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
  • Installation and After-Sale Service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers. Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
What about the delivery term?
For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.
Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
