UP-5009 Mooney Viscometer with ±0.5 MU Accuracy and 0.01 MU Resolution for Rubber Testing

1
MOQ
Negotiable
Price
UP-5009 Mooney Viscometer with ±0.5 MU Accuracy and 0.01 MU Resolution for Rubber Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model: UP-5009
Measuring Range: 0 ~ 200 Mooney Units (MU)
Standard Rotor Speed: 2 ±0.02 Rpm
Temperature Control Precision: ±0.3°C
Measuring Accuracy: ±0.5 MU
Temperature Range: Ambient ~ 200°C
Temperature Resolution: 0.1°C
Mooney Value Resolution: 0.01 MU
Basic Infomation
Brand Name: Rubber Mooney Viscometer
Certification: CE,ISO
Model Number: UP-5009
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-5009 Laboratory Mooney Viscometer Tester

For Natural Synthetic Rubber Compound Mooney Viscosity Measurement

Product Introduction

The Mooney Viscometer is a core laboratory testing instrument for the rubber and elastomer industry. It measures Mooney viscosity, Mooney scorch time, and stress relaxation characteristics of uncured raw rubber, rubber compounds, and masterbatch. The instrument detects the shear torque resistance of a rotor rotating inside a rubber sample under constant temperature, evaluating rubber processability, batch consistency, and premature vulcanization risk.

Equipped with high-precision torque sensor and intelligent temperature control system, the UP-5009 supports computer data acquisition, curve display, automatic data recording, and export functions.

Compliance Standards
  • ASTM D1646
  • ISO 289
  • GB/T 1232
  • GB/T 1233
  • DIN 53523
  • JIS K6300
Applications

Suitable for incoming inspection, production quality control, and material research & development, including:

  • Natural rubber, synthetic rubber, rubber compound & masterbatch manufacturers
  • Tire, rubber hose, sealing parts, conveyor belt, and rubber footwear factories
  • Universities and material research centers
Technical Specifications
Item Specification
Measuring Range 0 ~ 200 Mooney Units (MU)
Mooney Value Resolution 0.01 MU
Measuring Accuracy ±0.5 MU
Standard Rotor Speed 2 ±0.02 rpm
Rotor Options Large rotor Φ38.10 mm (Standard); Small rotor Φ30.48 mm (Optional)
Temperature Range Ambient ~ 200°C
Temperature Control Precision ±0.3°C; Temperature Resolution: 0.1°C
Test Modes Mooney Viscosity, Mooney Scorch, Stress Relaxation
Closing Method Pneumatic clamping
Data Output USB, RS232; Support curve print & data export
Power Supply AC220V±10%, 50Hz, 1500W
Overall Dimension (W×D×H) 550 × 620 × 1260 mm
Net Weight Approx. 180 kg

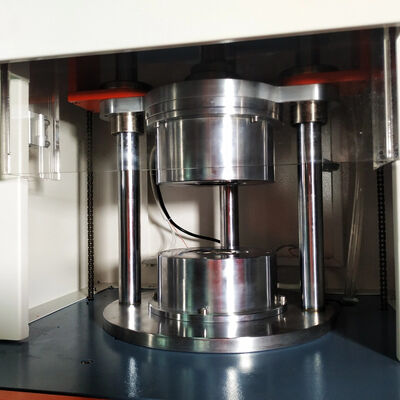

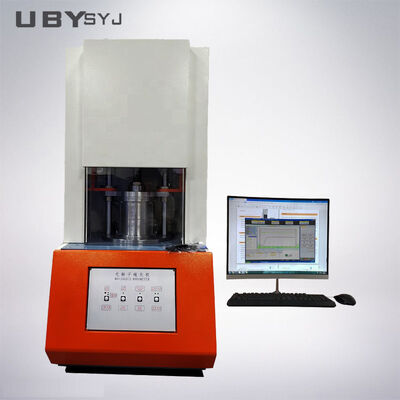

UP-5009 Laboratory Mooney Viscometer Tester front view UP-5009 Laboratory Mooney Viscometer Tester close-up view
