Product Details:
Payment & Shipping Terms:
|

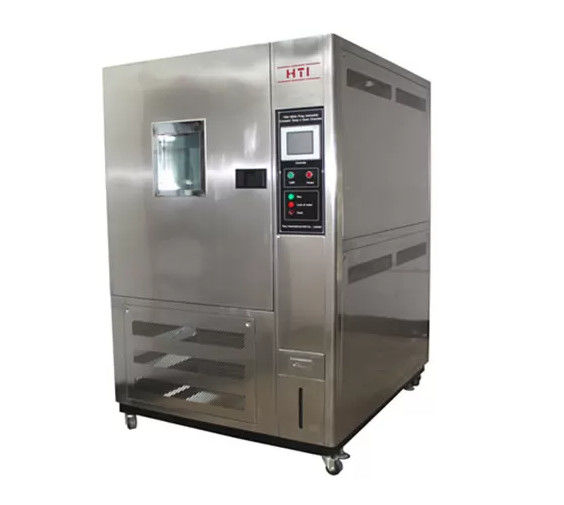

| Model Number: | TNJ-014-150 | Iterm: | IEC60068-2 Climatic Testing Chamber |
|---|---|---|---|
| Minimum Order Quantity: | 1 Set | Delivery Time: | 15 Working Days |
| Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
| Certificate: | CE | Standard: | IEC60068-2 |
| High Light: | IEC60068-2 Climatic Testing Chamber,1000 L Climatic Testing Chamber,800L Climatic Testing Chamber |
||
Application: Climatic Chamber can accurately simulate the low temperature, high temperature, high temperature and humidity, low temperature and low humidity complex natural environment.
Usage:
Climatic Chamber is suitable for electronic, electrical, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products testing quality.
Technical Parameter:
| Model | TNJ-041-150 | TNJ-041-225 | TNJ-041-408 | TNJ-041-800 | TNJ-041-1000 | |
| Capacity | 150 Liter | 225 Liter | 408 Liter | 800 Liter | 1000 Liter | |
| Dimension | Inner Dimension(W *H* D)mm : | 500*600*50 | 500*750*600 | 650*850*800 | 800*1000*1000 | 1000*1000*1000 |
| Outer Dimension(W *H* D)mm : | 950*1500*1050 | 950*1650*1150 | 1050*1750*1350 | 1450*1900*1350 | 1550*1900*1350 | |
| Temp | Temperature range(Option): |
A:0～+150⁰C B:-20～+150⁰C C:-40～+150⁰C D:-60～+150⁰C E:-70～+150⁰C |
||||
| Temperature fluctuation degree: | ± 0.5⁰C | |||||
| Temperature uniformity: | 2 ⁰C or less | |||||
| Temperature deviation: | ±2⁰C or less | |||||
| Avg. rate of fall | Fall + 20 to 40⁰C temperature drop time (light) 60 minutes | |||||
| Avg. rate of rise | Temperature rise time - 40 to 100 ⁰C (light) 45 minutes | |||||
| Humidity | Humidity range: | 20% ~ 98% R.H | ||||
| Humidity deviation: | 2%R.H | |||||
| Heating rate: | 1.2 ~ 2⁰C / min | |||||
| Cooling rate: | 0.7 ~ 1 ⁰C / min | |||||
| Construction | Control Panel: | LCD touch screen controller (Korea TEMI880) | ||||
| Control Program memory capacity: | 120 level programmable, maximum 999 times | |||||
| Shell material: | 201 brushed stainless steel plate or cold rolled steel plate anti-rust treatment | |||||
| Inner box material: | SUS304# mirror stainless steel plate | |||||
| Thermal insulation materials: | Polyurethane foaming or high density super fine imported glass wool. | |||||
| Observation window: | Use the conductive film toughened glass, lighting equipment to start the fluorescent lamp in the fly lipu pl-s 11W. | |||||
| Fan: | Centrifugal fan | |||||
| Heater: | U-fin type 304# seamless steel high-speed heating electric heater | |||||
| Refrigeration compressor: | French taikang scroll compressor | |||||
| Refrigeration: | Air cooled | |||||
| Refrigeration accessories: | Bending force, danfoss of Denmark, honeywell, Germany, etc | |||||
| Sample rack: | Two floors | |||||
| Electrical accessories: | Fuji international famous brand | |||||
| Pin hole: | On the left side of the machine Φ 50 mm | |||||
| Wiring mode: | The electric control wiring method is carried out according to international electrical standard | |||||
| Security device: | Fan overload protection,compression overheating protection, overpressure protection, overtemperature protection, moisture and water shortage protection | |||||
| Total power: | 9KW | |||||
| Power Supply: | AC220V optional 50Hz 4.5KW | |||||
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
