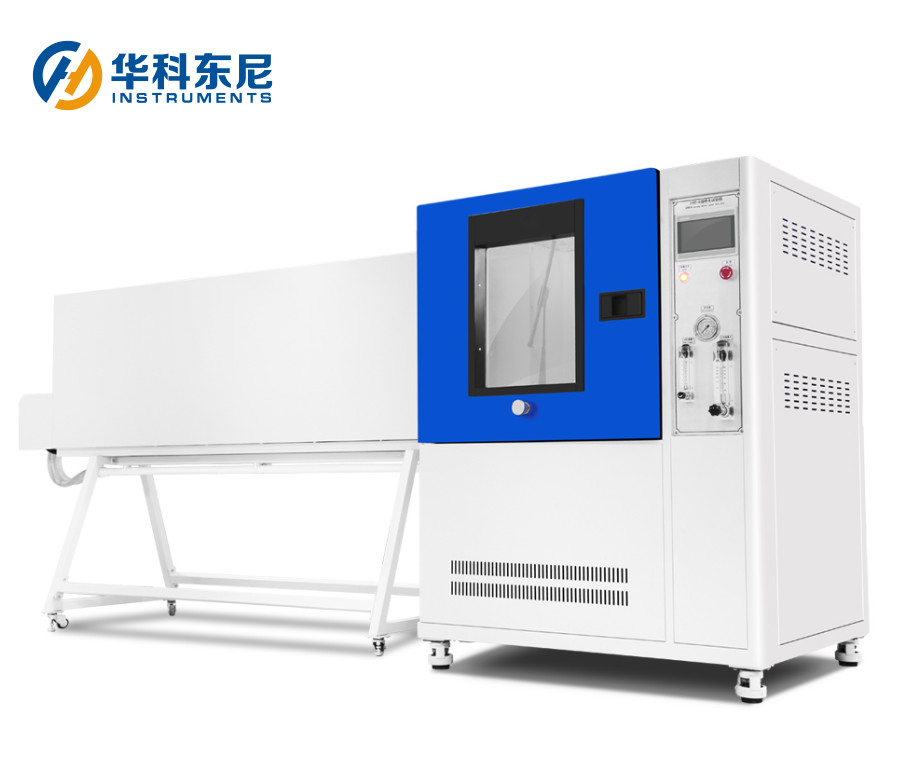

|Model Number:||WT-08||Iterm:||Strong Jet Water Test Chamber|
|Minimum Order Quantity:||1 Set||Delivery Time:||15 Working Days|
|Payment Terms:||T/T, L/C, Western Union||Place Of Origin:||Guangdong,China(Mainland)|
IPX6 Water Jet Testing Equipment,
IEC60529 Water Jet Testing Machine,
IPX5 Water Jet Test Equipment
IIPX5&IPX6 water jet test equipment is used to simulate super soaker’s environment. It will protect your stuff from powerful water jets at any direction.
IEC60529:1989 +A1:1999 +A2:2013
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.1, 14.2.2 and Figure 3
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.3
1. Suitable for product IPX5, IPX6 waterproof testing
2. The shell is made from domestic high-quality steel plate.
3. Equipment with water tank, can recycle water, no need to build a professional waterproof test room.
4. The use of high-quality servo motor, low noise, swing speed, angle more accurate..
5. The operator is not required to carry out the test with a spray gun, just fixed a sample can be tested.
6. The turntable electrical part is fully sealed, effectively preventing water inlet and leakage .

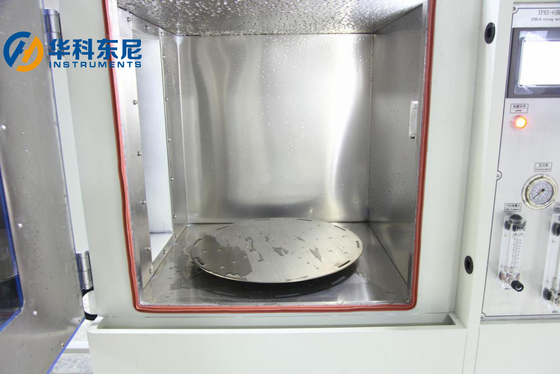

7. sample turntable: US304 stainless steel plate processing and manufacturing.
8. The power-off time of the sample power supply can be controlled by the program: power failure (0-999 min) - power on (0-999min) - power failure (0-999min), suitable for samples in the test need to power off.
9. Nozzle: According to IEC60529 .
10. LED waterproof lighting is installed in the test chamber to facilitate the observation of the test sample.
11.The gun can swing up and down, the turntable rotates, and the sample surface can be sprayed completely.
Technical parameters :
Technical parameters :
|Apply to the product||IPX5, IPX6 test|
|IPX5 Spray hole size||Dia 6.3 mm|
|IPX6 Spray hole size||Dia 12.5 mm|
|Inner size||1000*1000*1000 mm|
|Tank volume||58 L|
|Turntable diameter||600 mm|
|Sample turntable’s size||600*600*600 mm|
|Flow||12.5±0.625(L/min)(IPX5) ; 100±5(L/min)(IPX6)|
|Turntable height adjustable range||(Non-lifting (fixed)|
|Water flow control||Manual adjustment (rotor flow meter)|
|Water spray distance||2.7 m (nozzle distance from the center of the turntable)|
|Spray gun fixing method||Fixed (or adjust the angle manually )|
|Turntable's maximum load||50 KG|
|Safety protection||Leakage protection, water shortage protection, short-circuit protection|
|Machine power supply||AC380V；3.0kw, Fire line+zero line+protective ground line(Resistance＜4Ω)|
|Sample load power supply||AC220V±10% ；50Hz|
l Ground is flat, drainage is smooth, the ground and walls are waterproof, setting ground leakage or drainage ditches.
l Well ventilated.
l No strong electromagnetic field around.
l No flammable, non-explosive, non-corrosive substances and dust around .
l Rack and control box Distance: 800-1000mm.
|Power supply conditions||
l Install the appropriate capacity of the leakage protection air switch for the device, the switch must be used independently of the device.
l Do not use the knife-switch or power outlet.
l Distance is no more than 2m from the air switch of creepage and equipment .
l The water pressure is not less than 0.2Mpa and a 4-point tap is installed.
l The tap is no more than 2 meters away from the device.
1. Waterproof socket (IP66) 1pcs;
2. water tube : 5 meter *1 pcs
