Home /Products/Rubber Testing Equipment/UP-5008 Computer Control Rotorless Moving Die Rheometer for Rubber with 0.01℃ Resolution

UP-5008 Computer Control Rotorless Moving Die Rheometer for Rubber with 0.01℃ Resolution

1
MOQ
Negotiable
Price
UP-5008 Computer Control Rotorless Moving Die Rheometer for Rubber with 0.01℃ Resolution
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-5008
Service Support: OEM ODM
Language: Chinese And English
Applications: For Plastic, Rubber, Fiber, Foam, Film, And Film
Temperature Range: Temperature Range
Temperature Resolution: 0.01℃
Rate Of Temperature Increase: 15℃/Min
Torque Range: 0-25n.M
Highlight:

computer control rotorless rheometer for rubber

,

moving die rheometer with 0.01℃ resolution

,

rubber testing equipment with high precision
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: UP-5008
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-5008 Laboratory Computer Control Rotorless Moving Die Rheometer for Rubber
Product Overview
The UP-5008 Laboratory Computer Control Rotorless Moving Die Rheometer is the most important testing instrument for national research and development of new products, research on rubber compound formula, control of rubber material quality, and rubber basic research applications. Widely used across various industries in rubber products manufacturing.
Standards Compliance
GB/T16584, ISO6502:1991 and ASTMD5289-95
Technical Specifications
Parameter Specification
Temperature range RT~200ºC
Minimum temperature display 0.1ºC
Temperature fluctuation range ±0.15ºC
Heating rate About 15ºC/min
Torque range 0-20mm
Torque minimum reading 0.001nm
Swing angle ±0.5°/ ±1°/ ±3°(optional)
Swing speed 100r/min(1.66HZ)
Torque accuracy 0.3%
Temperature display resolution 0.01ºC
Temperature recovery time < 1.5min
Temperature unit C (degrees Celsius), F (Fahrenheit), K (Kelvin)
Acquisition rate 200time/s
Software language English, Chinese Simplified, Chinese Traditional
Calculation parameters ts1,ts2,t10,t30,t50,t70,t90,Vc1,Vc2
Software connection USB2.0
Power 1 phase 220V±15V 50HZ
Torque unit N.m,N.cm,N.inch,kN.m,kN.cm,kN.inch,kg.m,kg.cm,kg.inch,lp.m,lp.cm,lp.inch,g.m,g.cm,g.inch
Dimensions Based box: 56*58*51 Main machine:62*52*128 Computer cabinet:56*56*130
Printing contents date, time, temperature, vulcanization curve, temperature curve, ML, MH, ts1, ts2, t10, t50 ,t90, Vc1, Vc2
Air pressure 0.5Mpa--------0.65MPa (User need to prepare an air tube with an outer diameter of 8mm)

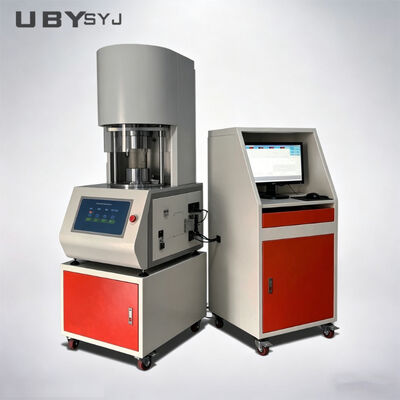

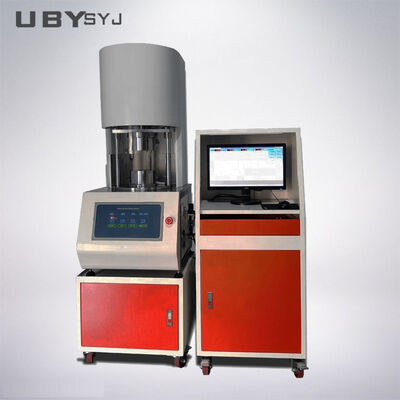

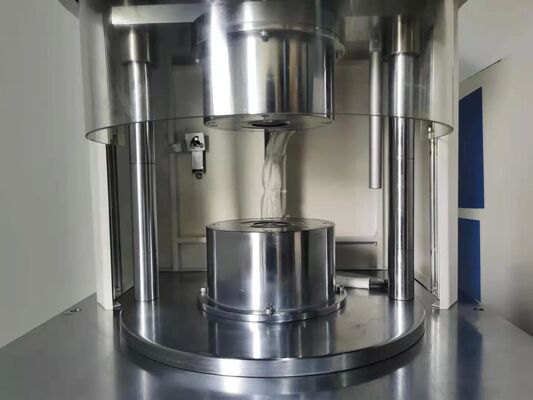

Product Images
UP-5008 Computer Control Rotorless Moving Die Rheometer for Rubber with 0.01℃ Resolution 0 UP-5008 Computer Control Rotorless Moving Die Rheometer for Rubber with 0.01℃ Resolution 1 UP-5008 Computer Control Rotorless Moving Die Rheometer for Rubber with 0.01℃ Resolution 2
Our Service Commitment
During the entire business process, we offer comprehensive Consultative Selling services:
  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization: Create drawings for customized requirements, provide reference photos, and confirm final solutions
  • Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation and After-Sales: Provide field installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of FREE maintenance, extended to 14 months considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem and provide solutions within 24 to 48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment. We can accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable to begin operation. We also offer on-site installation assistance when necessary.
