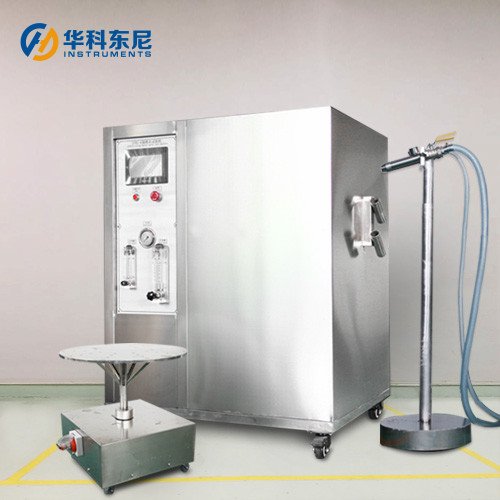

IPX5/6 Strong Jet Water Tester Waterproof Test Equipment WT-06
IPX5 IPX6 Water Jetting Test Chamber is applied to test the watertightness of enclosures of automotive parts, outdoor lamps and electronics parts.
The chambers built with the water tightness of sealed components such as head lamp, Power connector. Waterproof power connector in the test room can easily supply electricity to the specimens.
IPX5 and IPX6 functions on one test chamber,make testing convenient and cost-effective.
Standard :
IEC60529:1989 +A1:1999 +A2:2013
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.1, 14.2.2 and Figure 3
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.3
Features:
1. Suitable for product IPX5, IPX6 waterproof testing
2. The shell is made from domestic high-quality steel plate.
3. The chassis is equipped with a water storage tank, which automatically controls the water intake and prevents damage to the machine due to lack of water.
4. The use of high-quality servo motor, low noise, swing speed, angle more accurate..
5. Sample loading table using stepper motor, rotation speed and standard angle can be controlled by touch screen.
6. The turntable electrical part is fully sealed, effectively preventing water inlet and leakage .
7. sample turntable: US304 stainless steel plate processing and manufacturing.
8. The power-off time of the sample power supply can be controlled by the program: power failure (0-999 min) - power on (0-999min) - power failure (0-999min), suitable for samples in the test need to power off.

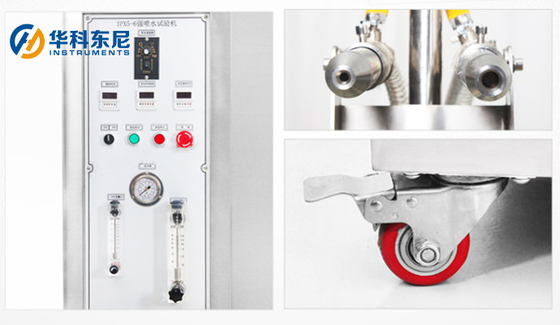

9. Nozzle: According to IEC60529 .
10. Provides a special gun rack, so that testers do not need to hold a gun, easy to test.
Technical parameters :
Apply to the product | IPX5, IPX6 test |
IPX5 Spray hole size | Dia 6.3 mm |
IPX6 Spray hole size | Dia 12.5 mm |
Tank volume | 550L ,Size: 800*600*1145 mm |
Turntable diameter | 600 mm |
Sample turntable’s size | 600*600*600 mm |
Flow | 12.5±0.625(L/min)(IPX5) ; 100±5(L/min)(IPX6) |
Turntable height adjustable range | (Non-lifting (fixed) |
Water flow control | Manual adjustment (rotor flow meter) |
Water spray distance | 2.5-3 m (controlled by operator) |
Spray gun fixing method | Special stand secured (or handheld) |
Turntable's maximum load | 50 KG |
Spraying water | Not recyclable |
Safety protection | Leakage protection, water shortage protection, short-circuit protection |
Dimensions | 1100*900*1300 mm |
Machine power supply | AC380V;3.0kw, Fire line+zero line+protective ground line(Resistance<4Ω) |
Sample load power supply | AC220V±10% ;50Hz |
Terms of use :
Environmental requirements |
l Ground is flat, drainage is smooth, the ground and walls are waterproof, setting ground leakage or drainage ditches. l Well ventilated. l No strong electromagnetic field around. l No flammable, non-explosive, non-corrosive substances and dust around . l Rack and control box Distance: 800-1000mm. |
Temperature | 5℃~35℃ |
Humidity | ≤85% |
Atmospheric pressure | 86kPa~106kPa |
Power supply conditions |
l Install the appropriate capacity of the leakage protection air switch for the device, the switch must be used independently of the device. l Do not use the knife-switch or power outlet. l Distance is no more than 2m from the air switch of creepage and equipment . |
Water conditions |
l The water pressure is not less than 0.2Mpa and a 4-point tap is installed. l The tap is no more than 2 meters away from the device. |
Accessories:
1. Waterproof socket (IP66) 1pcs;
2. water tube : 6 meter *1 pcs
