IPX5 IPX6 Waterproof Testing Strong Jet Water Test Chamber WT-07

IPX5 IPX6 Waterproof Testing Strong Jet Water Test Chamber WT-07
IPX5 IPX6 Waterproof Testing Strong Jet Water Test Chamber WT-07 IPX5 IPX6 Waterproof Testing Strong Jet Water Test Chamber WT-07 IPX5 IPX6 Waterproof Testing Strong Jet Water Test Chamber WT-07

Large Image :  IPX5 IPX6 Waterproof Testing Strong Jet Water Test Chamber WT-07

Product Details:
Place of Origin: china
Brand Name: HUST Tony
Model Number: WT-07
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: contact saler
Packaging Details: Plywood BOX
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Model Number: WT-07 Iterm: Strong Jet Water Test Chamber
Minimum Order Quantity: 1 Set Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union Place Of Origin: Guangdong,China(Mainland)
Certificate: IEC60529 ,GB/T4208,GB7000
High Light:

IPX5 Strong Jet Water Test Chamber

,

GB/T4208 Water Jetting Test Chamber

,

Water Jetting Test Chamber IEC60529

IPX5 IPX6 Water Jetting Test Chamber is applied to test the watertightness of enclosures of automotive parts, outdoor lamps and electronics parts.
The chambers built with the water tightness of sealed components such as head lamp, Power connector. Waterproof power connector in the test room can easily supply electricity to the specimens.

IPX5 and IPX6 functions on one test chamber,make testing convenient and cost-effective.


Standard :
IEC60529:1989 +A1:1999 +A2:2013
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.1, 14.2.2 and Figure 3
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.3


Features:

1. Suitable for product IPX5, IPX6 waterproof testing

2. The shell is made from domestic high-quality steel plate.

3. Equipment with water tank, can recycle water, no need to build a professional waterproof test room.

4. The use of high-quality servo motor, low noise, swing speed, angle more accurate..

5. The operator is not required to carry out the test with a spray gun, just fixed a sample can be tested.

6. The turntable electrical part is fully sealed, effectively preventing water inlet and leakage .

7. sample turntable: US304 stainless steel plate processing and manufacturing.

8. The power-off time of the sample power supply can be controlled by the program: power failure (0-999 min) - power on (0-999min) - power failure (0-999min), suitable for samples in the test need to power off.

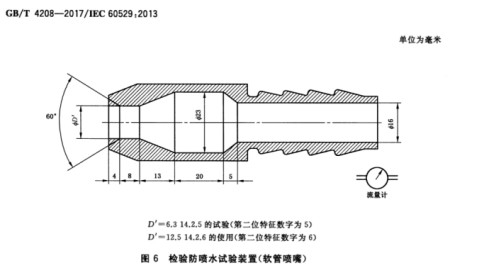

9. Nozzle: According to IEC60529 .

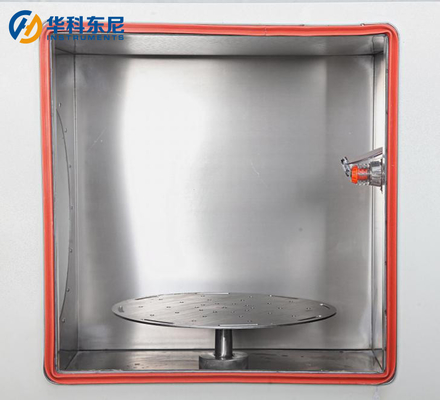

IPX5 IPX6 Waterproof Testing Strong Jet Water Test Chamber WT-07 0

10. LED waterproof lighting is installed in the test chamber to facilitate the observation of the test sample.






Technical parameters :


Technical parameters :

Apply to the product IPX5, IPX6 test
IPX5 Spray hole size Dia 6.3 mm
IPX6 Spray hole size Dia 12.5 mm
Inner size 800*800*800 mm (turntable 200 mm High)
Tank volume 40L
Turntable diameter 600 mm
Sample turntable’s size 600*600*600 mm

Flow 12.5±0.625(L/min)(IPX5) ; 100±5(L/min)(IPX6)
Turntable height adjustable range (Non-lifting (fixed)
Water flow control Manual adjustment (rotor flow meter)
Water spray distance 2.7 m (nozzle distance from the center of the turntable)
Spray gun fixing method Fixed (or adjust the angle manually )
Turntable's maximum load 50 KG
Spraying water recyclable

Safety protection Leakage protection, water shortage protection, short-circuit protection
Dimensions 3540*1040*1600 mm
Machine power supply AC380V;3.0kw, Fire line+zero line+protective ground line(Resistance<4Ω)
Sample load power supply AC220V±10% ;50Hz



Terms of use :

Environmental requirements

l Ground is flat, drainage is smooth, the ground and walls are waterproof, setting ground leakage or drainage ditches.

l Well ventilated.

l No strong electromagnetic field around.

l No flammable, non-explosive, non-corrosive substances and dust around .

l Rack and control box Distance: 800-1000mm.

Temperature 5℃~35℃
Humidity ≤85%
Atmospheric pressure 86kPa~106kPa
Power supply conditions

l Install the appropriate capacity of the leakage protection air switch for the device, the switch must be used independently of the device.

l Do not use the knife-switch or power outlet.

l Distance is no more than 2m from the air switch of creepage and equipment .

Water conditions

l The water pressure is not less than 0.2Mpa and a 4-point tap is installed.

l The tap is no more than 2 meters away from the device.

Accessories:
1. Waterproof socket (IP66) 1pcs;
2. water tube : 5 meter *1 pcs

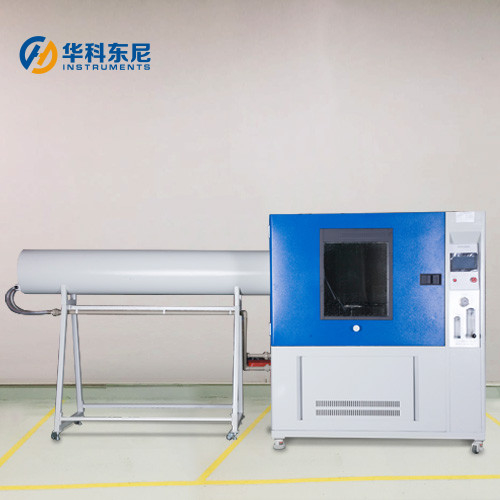

IPX5 IPX6 Waterproof Testing Strong Jet Water Test Chamber WT-07 1

IPX5 IPX6 Waterproof Testing Strong Jet Water Test Chamber WT-07 2



Types of IPX





  • IPX1/2 vertical drop test equipment (with rotating machine and tilt sample samples machine);--Model :WT-01/02/03
  • IPX3/4 automatic arranging the pouring water test equipment (with automatic turntable);--Model : WT-04 /05
  • IPX5/6 hosing test equipment (D 6.3 mm, D 12.5 mm nozzle);--Model : WT-06/07/08
  • IPX7 the water immersion test equipment ;--Model : WT-09
  • IPX8 Pressure Immersion Water Test equipment --Model : WT-10
  • IPX7 / IPX 8 water and Pressure water immersion test equipment --Model : WT-11
  • IPX9 9K High Temperature And High Pressure Water Spray Test Chamber --Model : WT-12
  • IEC60529 IP5X IP6X Dust Test equipment (500L / 1000L )--Model : WT-13/14
