Product Details:
Payment & Shipping Terms:
|
Power: | Electronic | Dimension: | 780*700*2150mm |
---|---|---|---|
Product Name: | Material Tensile Testing Machine | Stroke: | 950mm |
Test Speed: | 15~500mm/min | Test Width: | 380mm |
High Light: | tensile testing equipment,tensile test equipment,Dual Arm Tensile Testing Equipment |

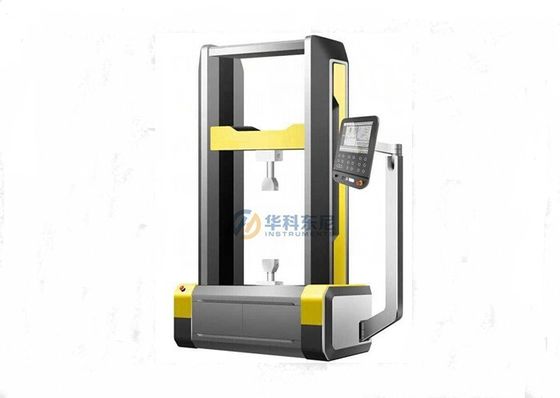

Automatic Switchover Microcomputer Dual Arm Tensile Testing Machine
Description:
This machine can widely apply to a variety of different textile materials and wood, shoes, tires, rubber tubes, triangular tape, plastic sheeting, plastic sheeting, packaging films, acrylic, FRP, ABS, EVA, PV and other products , semi-or dumbbell-shaped specimens of the tensile strength, elongation, tear, glue focused, tensile stress, peel, shear, the sticky relay of rubber and metal by using different fixtures
Principle:
The tensile testing machine is computer-controlled, move the screw clamps up and down for the specimen stretching by using the motor drive, automatically displays the force by using LOAD CELL force sensors and displayer.
Advantages:
1. Speciality in testing equipment
2. Various products to choose from
3. Accept customization
4. Excellent after-sale service
Specifications:
Capacity |
5-2000N |
Load accuracy |
≤0.8% |
Switch unit |
kgf,N,Lb |
Force resolution |
1/1000(5-100N),1/100(250-1000N),1/10(2500-5000N) |
Test speed |
15~500mm/min |
Displacement accuracy |
0.001mm |
Max stroke |
950mm |
Test width |
380mm |
Force enlargement ratio |
stepless automatic switchover |
Load sensor |
imported sensor, high precison: ±0.03F.S |
Power |
220V.50Hz |
Dimension |
780*700*2150mm |
Standard:
GB/T16491,GB/T1040,GB/T8804.1,GB/T8804.2,GB/T1041,GB/T9341,GB/T8808,GB/T18477,GB/T583,
GB13022
