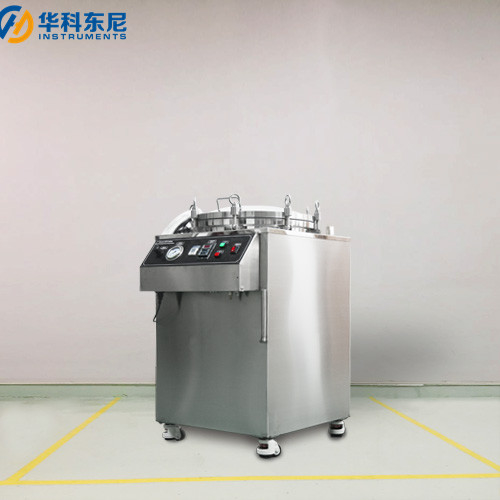

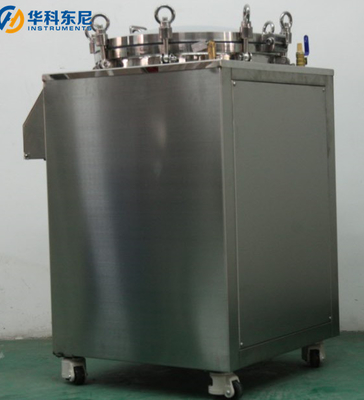

|Model Number:||WT-10||Iterm:||IPX8 Pressure Immersion Water Test Chamber|
|Minimum Order Quantity:||1 Set||Delivery Time:||15 Working Days|
|Payment Terms:||T/T, L/C, Western Union||Place Of Origin:||Guangdong,China(Mainland)|
Pressure Immersion Water Testing Chamber,
GB/T4208 Water Immersion Testing Systems,
IPX8 Immersion Water Test Chamber
Principle: Water Immersion Test Chamber used to test anti-rain and water-proof performance for products, the products such as steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry etc.
Water Immersion Test Machine has been widely used in domestic commodity inspection bureau and the domestic and foreign products, quality authentication laboratory and the domestic and foreign well-known electronics manufacturers. Equipment performance had achieved the international advanced level, cost-effective.
IEC60529:1989 +A1:1999 +A2:2013
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.8
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.9
1. Suitable for product IPX8 waterproof testing
2. Chamber max allowable water depth of the box is 1.2 M, the bottom area: 1000 x 1000mm. (Customizable)
3.The immersion tank is made of SUS304 stainless steel
4. Special silicone seal ring, good elasticity, good durability.
5. Top tank cover on equipment - secured with 8 ring screws (send auxiliary-steel rod).
6.The equipment is equipped with a safety valve that automatically releases pressure after exceeding the rated pressure, preventing operator errors and hazards.
7.Electronic control components using imported brands (e.g. LS, Panasonic, Omron, etc.).
8.Using the imported Panasonic pressure sensor - automatic control tank test pressure, control accuracy: ± 0.002Mpa, sensor display accuracy: 0.001Mpa.
9.The equipment base is equipped with 4 casters for easy movement and fixation.
10. According to customer requirements, punching in the tank, convenient sample for live testing (before place the order to explain this requirement)
Technical parameters :
|The size outside the water tank||610*780*1050 mm (include casters)|
|The size of the inner box||500*500 mm|
|box thickness||4 mm|
|Flange thickness||25 mm|
|Flange material||stainless steel|
|The weight of the device||About 90 kg|
|Pressure control method||self-regulation|
|The pressure error value||±0.002 Mpa|
|The sensor displays accuracy||0.001 Mpa|
|Test the depth range||0—50 M|
|Pressure adjustment range||0—0.5 Mpa|
|The relief valve exhaust pressure||0.55 Mpa|
|Maximum limit pressure||0.6 Mpa|
|Test time set range||0-999 min|
|protector||Pressure relief valve protection|
|The intake method||Adjust the regulator valve manually|
l Ground is flat, drainage is smooth, the ground and walls are waterproof, setting ground leakage or drainage ditches.
No strong electromagnetic field around.
No flammable, non-explosive, non-corrosive substances and dust around .
Rack and control box Distance: 800-1000mm.
|Atmospheric pressure||Customer-owned air compressor, recommended output air pressure: 0.6Mpa-0.8Mpa|
|Water||Tap water/pure water|
1. Safety valve certificate* 1
2. Auxiliary steel rod *1 stick;
3. intake pipe *1 pcs
4. 5 meters pipe*1 pcs
