|Model Number:||WT-09||Iterm:||IPX7 Water Immersion Test Chamber|
|Minimum Order Quantity:||1 Set||Delivery Time:||15 Working Days|
|Payment Terms:||T/T, L/C, Western Union||Place Of Origin:||Guangdong,China(Mainland)|
GB7000 Water Immersion Test Equipment,
IPX7 Water Immersion Test Equipment,
IEC60529 Water Immersion Test Equipment
Water Immersion Test Chamber used to test anti-rain and water-proof performance for products, the products such as steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry etc.
Water Immersion Test Machine has been widely used in domestic commodity inspection bureau and the domestic and foreign products, quality authentication laboratory and the domestic and foreign well-known electronics manufacturers. Equipment performance had achieved the international advanced level, cost-effective.
IEC60529:1989 +A1:1999 +A2:2013
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.7
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.8

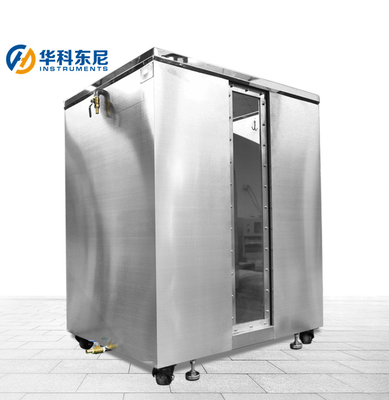

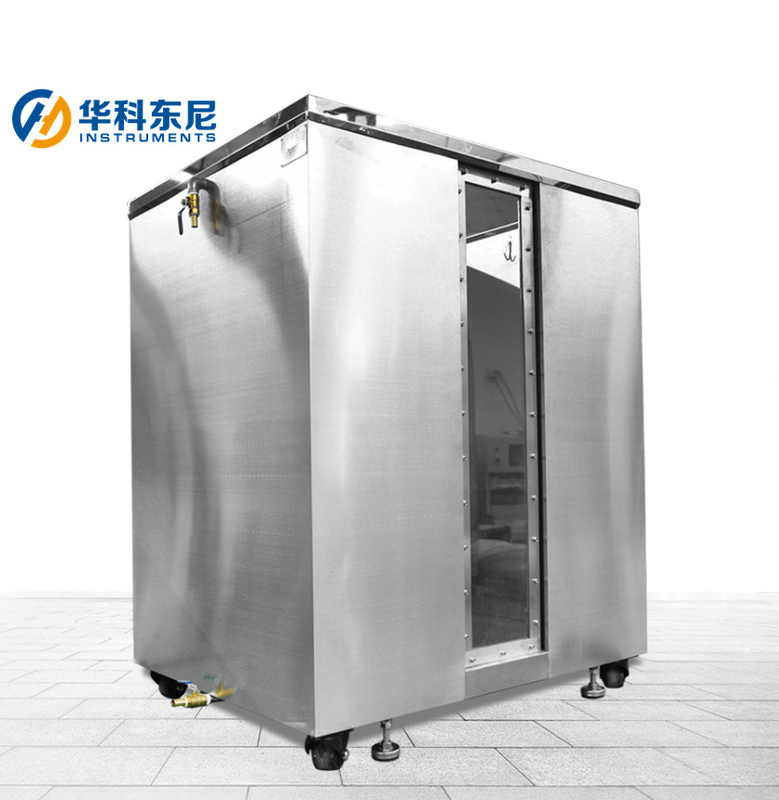

1. Suitable for product IPX7 waterproof testing
2. Chamber max allowable water depth of the box is 1.2 M, the bottom area: 1000 x 1000mm. (Customizable)
3.The immersion tank has a double-layer structure :
Inner layer is made of SUS304 stainless steel+ 40 square tube to do the reinforcement, to keep the inner box will not deform + outer layer is welded with hair-printed stainless steel plate.
4. In and out of the waterway pipes under the installation water tank

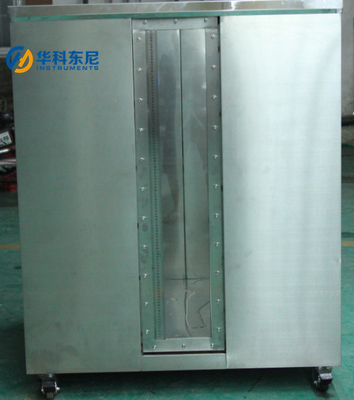

5. The observation window material is 12mm tempered glass, which can observe the test condition of the sample.
6.The stainless steel base frame is equipped with heavy casters and a cup of feet ,easy movement and fixation.

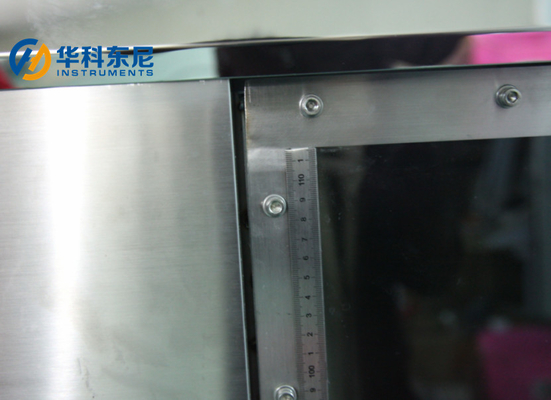

7.The stainless steel ruler can shows the water level precisely.
8.There is a stainless steel hook on top of the inner box for easy hanging test samples.
Technical parameters :
|The size outside the water tank||1170*1100*1360 mm (include casters)|
|The size of the inner box||1000*1000*1200 mm|
|The highest test depth of water||1.2m|
|Inner box thickness||1.5mm|
|Observe the perspective window||Tempered glass (thickness: 12mm)|
|Observe the width of the window||200 mm|
|Water level adjustment method||Water in/drain valve, manual adjustment|
|The water level is displayed||Stainless steel ruler (precision 1mm), horizontal visual|
|Rack material||Stainless steel square tube|
l Ground is flat, drainage is smooth, the ground and walls are waterproof, setting ground leakage or drainage ditches.
l Well ventilated.
l No strong electromagnetic field around.
l No flammable, non-explosive, non-corrosive substances and dust around .
l Rack and control box Distance: 800-1000mm.
1. water tube : 3 meter *2 pcs
