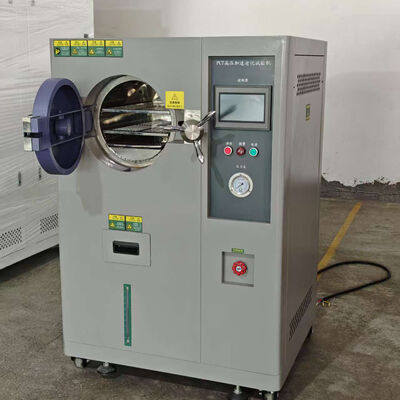

The UP-6125 PCT Test Chamber (Pressure Cooker Test Chamber) is a professional saturated steam accelerated aging test equipment specifically designed for high-pressure saturated damp heat reliability verification. Unlike HAST chambers with adjustable humidity, the PCT operates under 100% fixed saturated humidity, simulating extreme high temperature and pressure steam environments to rapidly trigger internal moisture penetration, material delamination, and sealing failure of electronic products.
This tester features simple operation, strong pressure resistance, and highly repeatable test data, making it widely used for destructive accelerated aging, airtightness, and moisture resistance inspection of high-reliability electronic parts. Fully optimized for global B2B industrial procurement logic, it is compatible with mainstream international test standards.
The PCT test chamber is suitable for:
| Item | Specification |
|---|---|
| Inner Chamber Volume | 36L / 54L / 80L (Optional) |
| Temperature Range | 105℃ ~ 143℃ |
| Temperature Accuracy | ±0.1℃ |
| Temperature Uniformity | ≤±0.4℃ |
| Humidity Condition | 100%RH Fixed Saturated Steam |
| Working Pressure Range | 0.05~0.30MPa (1~3.0kgf/cm²) |
| Cooling Mode | Independent Air Cooling |
| Inner/Outer Material | Inner: SUS316L; Outer: SUS304 |
| Working Voltage | 220V/380V, 50/60Hz Optional |
| Dimension (W*D*H) | 720*580*850mm |
| Net Weight | 168kg |
During the entire business process, we offer consultative selling services:
Discussing testing requirements and technical details, suggesting suitable products to customers for confirmation. Then quoting the most appropriate price according to customer requirements.
Creating related drawings to confirm customized requirements with customers. Providing reference photos to show product appearance. Then confirming the final solution and price with the customer.
Producing machines according to confirmed PO requirements. Providing photos to show the production process. After completion, offering photos for customer confirmation. Performing factory calibration or third-party calibration as per customer requirements. Checking and testing all details before arranging packing. Delivering products within confirmed shipping time and informing customers.
Defining installation procedures for field implementation and providing comprehensive after-sales support.
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months of FREE maintenance. Considering sea transportation, we can extend an additional 2 months for our customers. If your machine doesn't work, you can send us an email or call us - we will try our best to identify the problem through conversation or video chat if necessary. Once we confirm the problem, a solution will be offered within 24 to 48 hours.
For our standard machines in stock, delivery takes 3-7 working days. If there is no stock, normal delivery time is 15-20 working days after payment is received. If you have urgent needs, we will make special arrangements for you.
Yes, of course. We can offer not only standard machines but also customized machines according to your requirements. We can also place your logo on the machine, meaning we offer OEM and ODM services.
Once you order testing machines from us, we will send you the operation manual or video in English version via email. Most of our machines are shipped as complete units, meaning they are already installed - you just need to connect the power cable and start using them. If necessary, we can also assist you with on-site installation.
