UP-6125 Environmental Test Chamber Leak Proof High Pressure Cooker Test Chamber

1 Unit
MOQ
Negotiable
Price
UP-6125 Environmental Test Chamber Leak Proof High Pressure Cooker Test Chamber
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Environmental Test Chamber
Temperature Range: 105ºC~+132ºC
Humidity Range: 75% ~100 % Rh
Humidity Fluctuation: ≤±3%Rh
Pressure Range: 1.2~2.89MPa
Custom Service: OEM,ODM
Highlight:

UP-6125 Environmental Test Chamber

,

Environmental Test Chamber Leak Proof

,

High Pressure Cooker Test Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6125
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
Leak-Proof High Pressure Accelerating Aging Tester
Professional Environmental Testing Machine
PCT (Pressure Cooker Test) Aging Chamber is an essential and highly specialized piece of equipment within the semiconductor industry. Its primary function is to thoroughly assess the capabilities of semiconductors by subjecting them to challenging environmental conditions.
During testing, products are placed inside the chamber and exposed to precisely controlled temperature, humidity, and pressure settings. This rigorous testing process evaluates pressure resistance and airtightness of semiconductor samples under extreme conditions.
This chamber enables semiconductor manufacturers to gain critical insights into product performance and reliability. By simulating harsh operating environments, manufacturers can identify potential weaknesses in design or manufacturing processes, leading to more robust and reliable semiconductor products.
Technical Specifications
Parameter Range Notes
Temperature range 105ºC~+132ºC Saturated vapor temperature
Humidity range 100%RH Saturated Vapor Humidity
Pressure range (gauge pressure) 0.2Kg/cm² to 2.0 Kg/cm² or (2.2 Kg/cm²) Control point pressure (Safe pressure capacity 3.5Kg/cm²)
Time scale 0 to 999 hours Adjustable
Temperature distribution ≤± 2.0ºC
Key Features
Operation Features
  • Unsaturated or saturated humidity control
  • Multi-mode M system (wet bulb/dry bulb) controls humidity, even during heat-up and cool-down. Fully conforms to EIA/JEDEC Test Method A100 & 102C
  • Touch-screen controller with temperature, humidity, and count-down display. Includes Ethernet Interface
  • 12 specimen power terminals, allows power-up of specimens (12 per workspace on "double" units)
  • Automatic fill of the humidity water at the start of a test
Cabinet Features
  • Inner cylinder and door shield protect specimens from dew condensation
  • Interior is cylindrical for maximum product loading
  • Two stainless steel shelves
  • Set casters for easy movement of the chamber (Except double units)
  • Push button door lock
  • Bottom of the unit allows storage space for peripheral equipment
Product Images

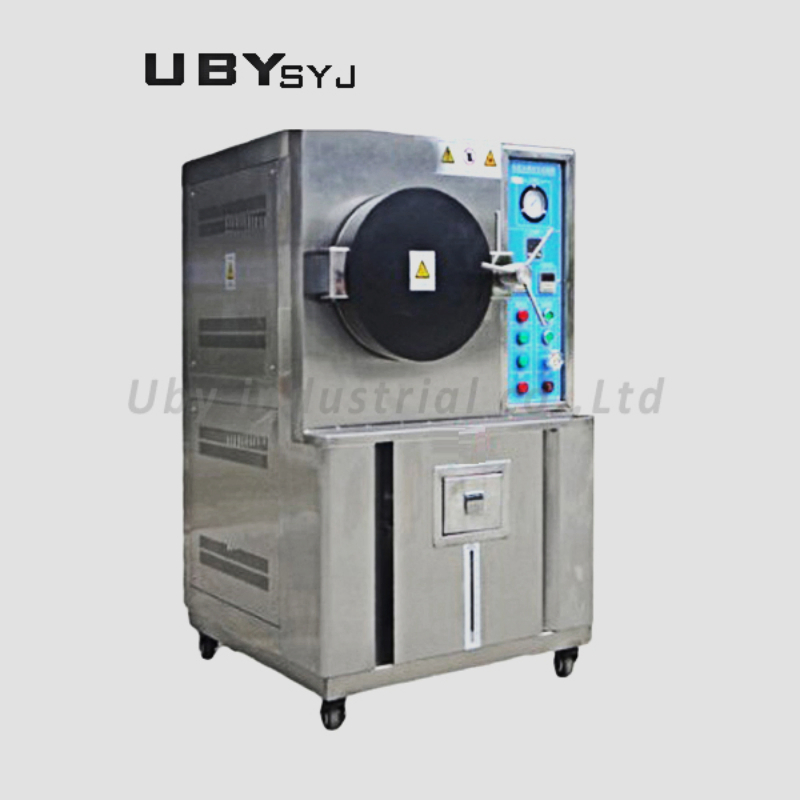

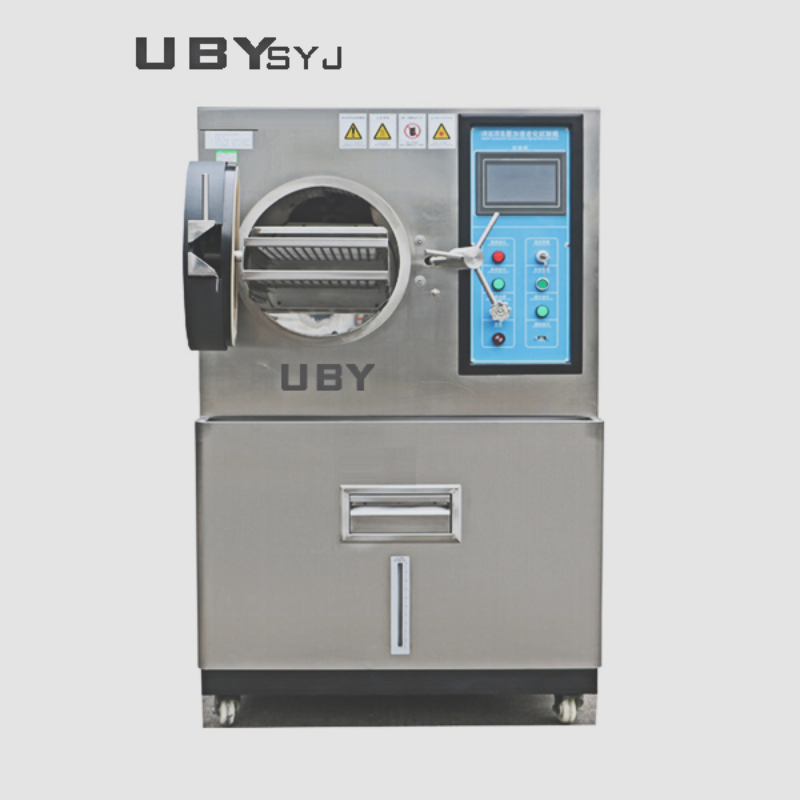

UP-6125 Environmental Test Chamber Leak Proof High Pressure Cooker Test Chamber 0 UP-6125 Environmental Test Chamber Leak Proof High Pressure Cooker Test Chamber 1 UP-6125 Environmental Test Chamber Leak Proof High Pressure Cooker Test Chamber 2
Our Service Process
  • Customer Inquiry Process: Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
  • Specifications Customize Process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
  • Production and Delivery Process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
  • Installation and After-Sale Service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers. Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.
Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
