UP-2004 Universal Testing Machine with PID Intelligent Temperature Control for ISO ASTM GB Standards Compliant Tensile Strength Testing at 10KN Maximum Force

1 Unit
MOQ
Negotiable
Price
UP-2004 Universal Testing Machine with PID Intelligent Temperature Control for ISO ASTM GB Standards Compliant Tensile Strength Testing at 10KN Maximum Force
Features Gallery Product Description Chat Now
Features
Specifications
Type: Universal Testing Machine
Model NO.: UP-2004
Accuracy: ±0.5%
Maxcapacity: 20-100000kN
Control: Computer Control
Maximum Test Force: 10KN
Measurement Range Of Test Force: 2%-100%
Tensile Test Space: 800mm
Effective Width: 370mm
Temperature Range: -40ºC~150ºC
Highlight:

Universal Testing Machine with PID control

,

10KN tensile strength testing machine

,

ISO ASTM GB compliant testing machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2004
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-2004 Universal High Low Temperature Tensile Strength Testing Machine For Plastic Rubber Metal
High low temperature tensile tester adopts integrated design, supporting accurate tension and compression tests under ambient to 150ºC temperature conditions. Equipped with PID intelligent temperature control and multi safety protection, it delivers stable and repeatable test data. Complying with ISO, ASTM and GB standards, it is widely applied for mechanical performance testing of plastics, rubber, composites and auto parts, ideal for laboratory R&D and industrial quality inspection.
Key Features
  • Universal testing host and high-low temperature chamber, realizing tensile & compression tests under variable temperature environments in one machine
  • PID intelligent temperature control system, temperature range from ambient temperature to 150ºC, heating rate 2-3ºC/min, equipped with leakage and overload protection for safe operation
  • Real-time synchronous recording of force, displacement and stress-strain curves under high/low temperature conditions, automatic generation of complete test reports
Compliance Standards
ISO 527, ISO 37, ASTM D638, ASTM D412, GB/T 1040, GB/T 528, GB/T 7759, GB/T 1447
Technical Specifications
Item Value
Model UP-2004
Maximum Test Force 10KN
Measurement Range of Test Force 2%-100%
Testing Machine Accuracy Grade 1
Accuracy of Test Force ≤ ± 1%
Crosshead Displacement Resolution 0.01mm
Adjustable Speed Range 0.01-500mm/min
Tensile Test Space 800mm
Compression Test Space 1100mm
Effective Width 370mm
Control Method PID Control Method
Heating Method Heating Tube
Temperature Range -40ºC~150ºC
Heating Rate 2~3°C/min
Safety Device Leakage and Overload Protection
External Dimensions 900mm × 440mm × 780mm
Internal Dimensions 360mm × 225mm × 620mm
Weight 350kg
Power Supply AC 220V 50HZ 3KW
Product Images

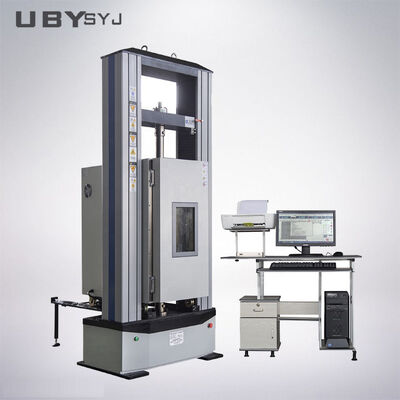

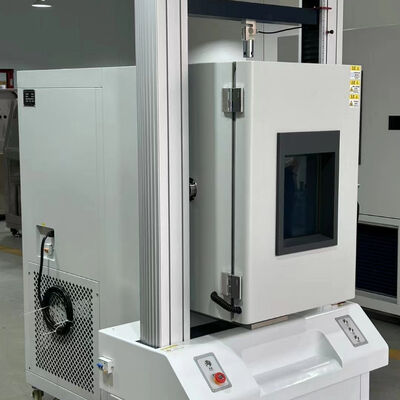

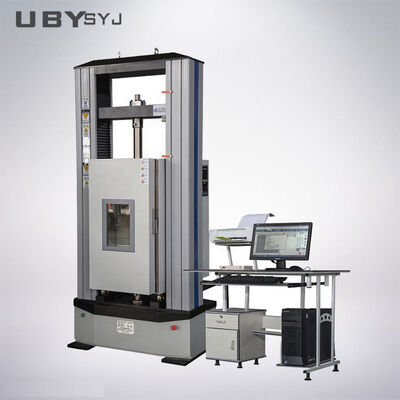

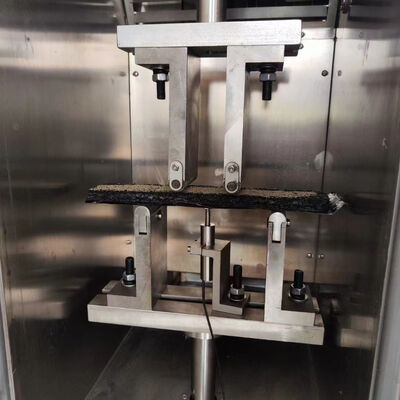

UP-2004 Universal High Low Temperature Tensile Strength Testing Machine front view UP-2004 Testing Machine side view showing control panel UP-2004 Testing Machine interior chamber view
Our Service Process
  • Customer Inquiry: Discussing testing requirements and technical details, suggesting suitable products, and providing competitive pricing
  • Customization: Creating detailed drawings and reference photos for customized requirements, confirming final solutions and pricing
  • Production & Delivery: Manufacturing according to specifications, providing production updates, conducting calibration, and ensuring timely delivery
  • Installation & Support: On-site installation and comprehensive after-sales support services
Frequently Asked Questions
  • Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
    Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes 12-month warranty with free maintenance. Extended 2-month warranty is available for sea transportation. Technical support is provided via email, phone, or video chat with solutions offered within 24-48 hours.
  • What about the delivery term?
    Standard machines: 3-7 working days for stock items, 15-20 working days for non-stock items. Urgent requirements receive special arrangements.
  • Do you accept customization services? Can I have my logo on the machine?
    Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with logo placement.
  • How can I install and use the machine?
    We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
