UP-6195 Versatile and Stable Temperature and Humidity Environment Experimental Test Chamber
The UP-6195 Versatile Stable Temperature and Humidity Environment Experimental Test Chamber is designed for comprehensive material testing under various environmental conditions. This equipment simulates different environmental parameters to evaluate material performance characteristics including heat resistance, dry resistance, humidity resistance, and cold resistance.
Design Standards
GB2423/T5170/10586/10592, IEC68, GJB150, JIS C60068, ASTM D4714, CNS3625/12565/12566
Applications
This environmental test chamber is appropriate for testing material performance under various conditions, enabling precise definition of material characteristics including resistance to heat, dry conditions, humidity, and cold environments.
Technical Specifications
| Parameter |
Model 1 |
Model 2 |
| Internal Dimension (mm) |
400×500×500 |
500×600×750 |
| Overall Dimension (mm) |
860×1050×1620 |
960×1150×1860 |
| Interior Volume |
100L |
225L |
| Temperature Range |
A: -20ºC to +150ºC
B: -40ºC to +150ºC
C: -70ºC to +150ºC |
| Temperature Fluctuation |
±0.5ºC |
| Temperature Deviation |
±2.0ºC |
| Humidity Range |
20% to 98% RH |
| Humidity Deviation |
±2.5% RH |
| Cooling Rate |
1ºC/min |
| Heating Rate |
3ºC/min |
| Refrigerant |
R404A, R23 |
| Controller |
Programmable color LCD touch screen with Ethernet connection |
| Power Supply |
220V 50Hz / 380V 50Hz |
| Maximum Noise |
65 dBA |

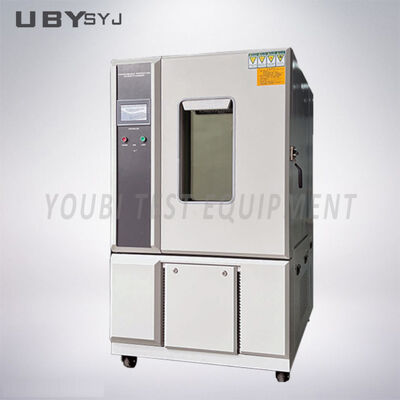

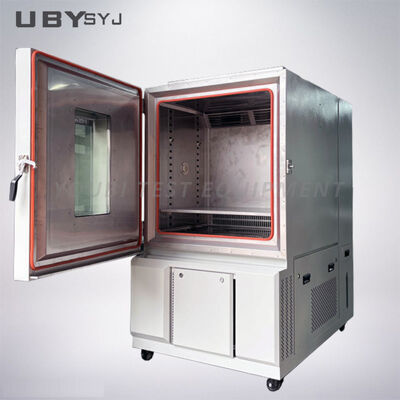

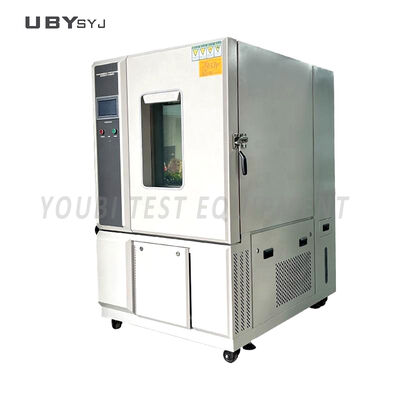

Product Images
Our Service Process
Consultative Selling Services
1) Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
2) Specifications Customization Process: Create detailed drawings for customized requirements, provide reference photos, and confirm final solutions and pricing.
3) Production and Delivery Process: Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and arrange timely shipping.
4) Installation and After-Sales Service: Provide field installation support and comprehensive after-sales service.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months consideration for sea transportation. For technical support, contact us via email or phone - we provide solutions within 24 to 48 hours after problem confirmation.
What about the delivery term?
Standard machines in stock: 3-7 working days
Standard machines not in stock: 15-20 working days after payment
Urgent requirements receive special arrangement priority
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including custom logo placement on equipment.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos via email. Most machines ship fully assembled - simply connect the power cable to begin operation. When necessary, we offer on-site installation assistance.
