Product Details:
Payment & Shipping Terms:
|
Power: | Electronic | Product Name: | Flammability Testing Equipment |
---|---|---|---|
Dimension: | 600mm×400mm×370mm | Weight: | 20 Kg |
High Light: | flammability testing equipment,laboratory testing machines |

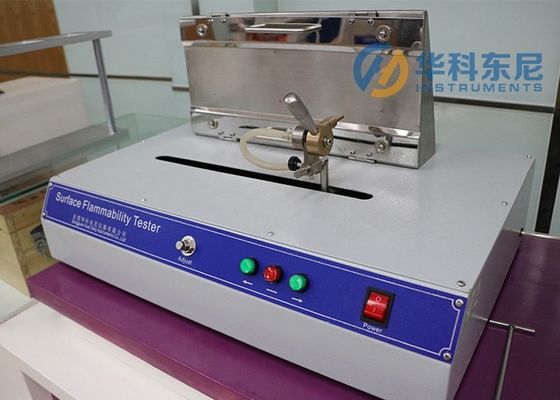

Professional Surface Flammability Testing Equipment For Fabric
Description:
The surface flammability Tester commonly used in the examination down or the superficial knowledge fabric's flammability, the flame spreads fast in the fabric surface, but the fabric Kieb structure is incombustible.
Features:
This tester was designed according to EN71-2011 standard, both sell to overseas and dometic market.
1. Adopt the mininsize gas cylinder system, the instrument can be moved, take up small space. The user also can connect big gas cylinder.
2. The gas system is controlled by PLC, ignite and continue burning time are accuracy,
3. All frames can be adjusted to meet different testing need.
This instrument applies to test the performance of flame retardardant of toys for children, completely applies to EN71-2-2008.
Specifications:
Nozzle movement speed | 150 millimeters/second ±5 millimeter/seconds (bidirectional) |
Nozzle moves the distance | ≥300 millimeter |
Test the fabric plush altitude | 0-70mm |
Flame altitude | 0-60mm continuously adjustable |
Dimension | 600mm×400mm×370mm |
Weight | 20 kg |
Standard | BS 4569,EN71-2 3.5 |
Power | AC220V±10% ,50Hz; 50W |
Standard Configuration:
Surface flammability tester 1 pcs
Powercord 1 pcs
Burning units 1 pcs
Butane gas 1 bottle
Flame caliper 1 pcs
Operating manual 1 brochure
Contact Person: linmei
Tel: 86-13421721188
Fax: 86-769-23010667
