Home /Products/Lab Testing Equipment/Industrial Heavy Duty Tensile Strength Tester With Dual Column Design

Industrial Heavy Duty Tensile Strength Tester With Dual Column Design

1 Unit
MOQ
Negotiable
Price
Industrial Heavy Duty Tensile Strength Tester With Dual Column Design
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Heavy Duty Tensile Strength Tester
Model NO.: UP-2003
Capacity Choice: 5, 10, 20, 50, 100, 200, 500kg Optional
Resolution: 1/250000
Effective Testing Space: 400mm Max
Accuracy Grade: 0.5
Range Of Speed: 50-400mm/min
Power: 1PH, AC220V, 50/60Hz
Highlight:

Industrial Tensile Strength Tester

,

Heavy Duty Tensile Strength Tester

,

Dual Column Tensile Strength Testing Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2003
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
Industrial-Grade Heavy-Duty Tensile Strength Tester

Industrial-grade heavy-duty tensile strength testers are engineered for evaluating large, high-strength materials and components, characterized by exceptional load capacity and robust structural integrity.

  • Ultra-High Load Frame: Features a heavy-duty steel four-column or two-column design, capable of handling hundreds of kN to thousands of kN of tension or compression force without frame deflection.
  • Precise High-Power Drive: Equipped with high-power servo motors or hydraulic servo systems, delivering smooth, responsive loading with high accuracy across the entire force range.
  • Rugged & Specialized Grips: Comes with or can be customized with heavy-duty grips (e.g., wedge, threaded, flat grips) for large metal samples, composites, concrete elements, wires, and chains.
  • Powerful Data Acquisition: Integrates high-resolution load cells and long-travel strain measurement systems (like large-range extensometers) for complete and precise data meeting strict industrial norms.
  • Intelligent Control & Safety: Offers automated test sequences, overload protection, emergency stops, and self-diagnostics for safe and reliable operation.
Technical Specifications
Model UP-2003
Range of speed 50-400mm/min
Motor AV Servo Motor
Capacity choice 5,10,20,50,100,200,500KG optional
Resolution 1/150,000
Effective testing space 400mm MAX
Accuracy ±0.5%
Operation method Windows XP,Win7 operation,computer control
Accessories computer, printer, system operation manual
Optional accessories customized clamps by appointed, force sensors, printer, and operation manual
Weight 400KG
Dimension (W×D×H)80×50×150CM
Power 1PH, AC220V, 50/60Hz
Stroke protection Upper and lower protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies
Product Images

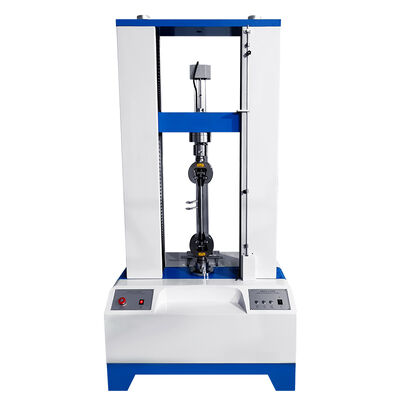

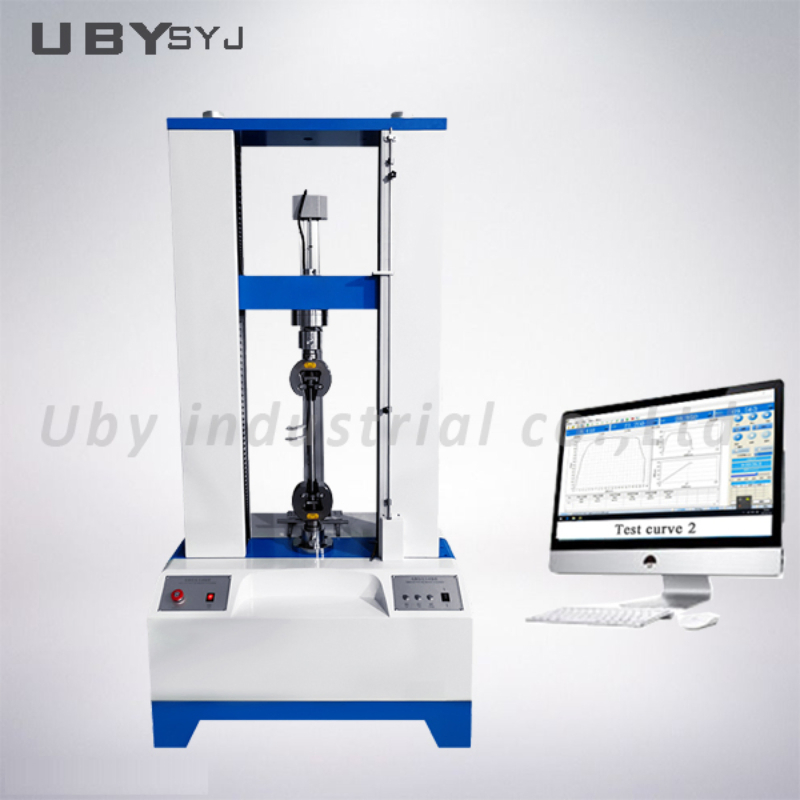

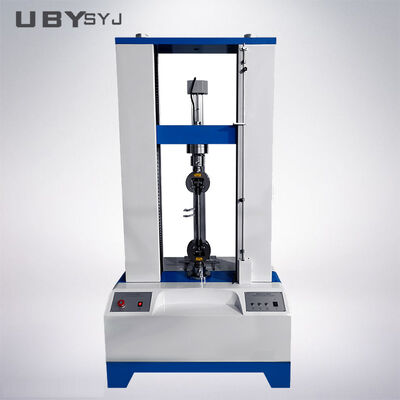

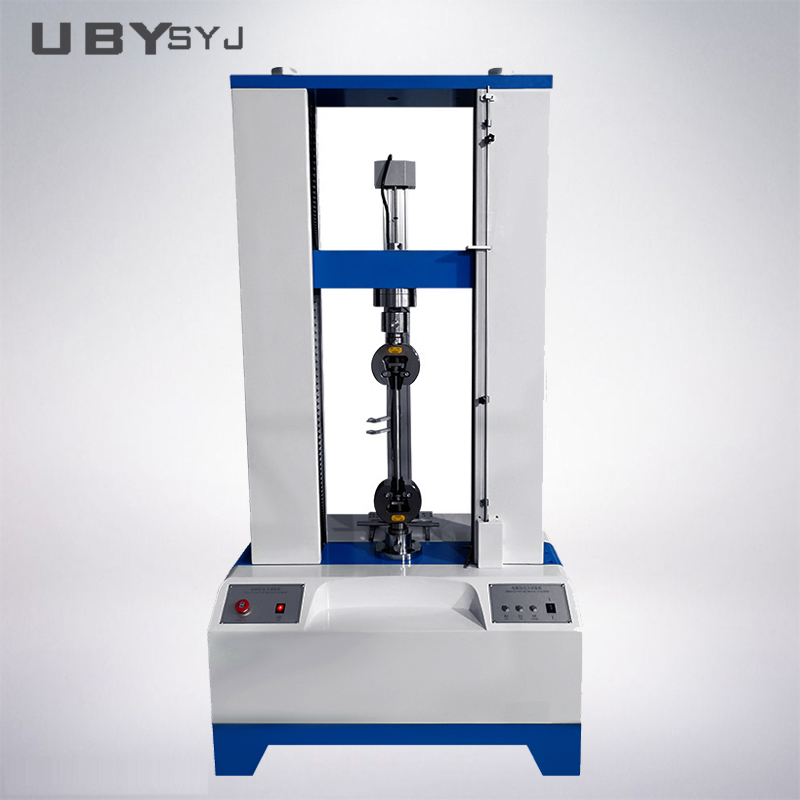

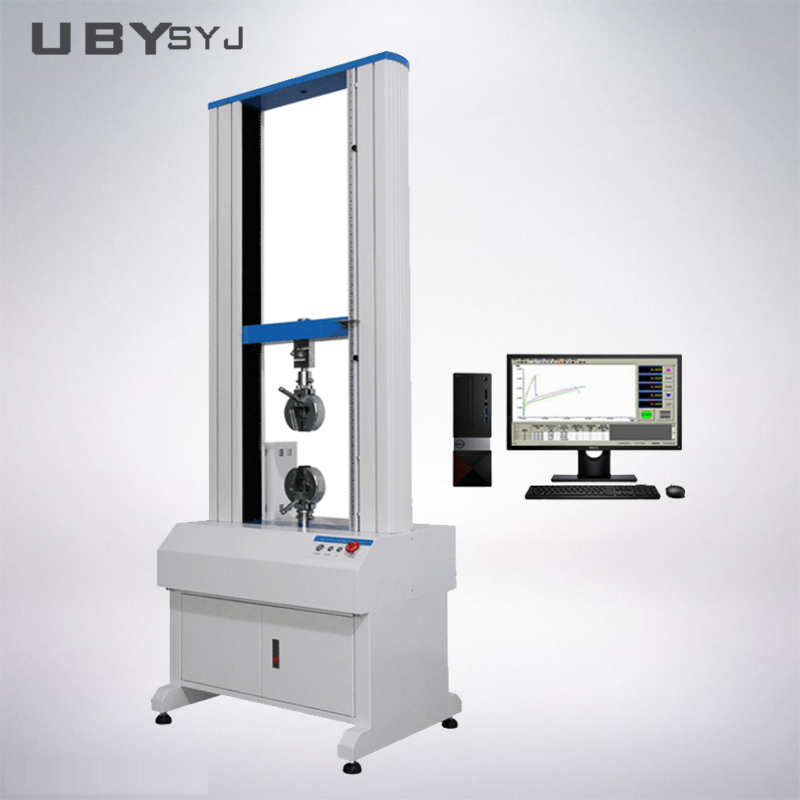

Industrial Heavy Duty Tensile Strength Tester With Dual Column Design 0 Industrial Heavy Duty Tensile Strength Tester With Dual Column Design 1 Industrial Heavy Duty Tensile Strength Tester With Dual Column Design 2
Our Service Process
  • Customer Inquiry Process: Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
  • Specifications Customize Process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
  • Production and Delivery Process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
  • Installation and After-Sale Service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers. Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.
Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
