Integrated IPX1-IPX6 Waterproof Test Chamber with PLC-controlled Operation and 360° Rotatable Sample Table

1 Unit
MOQ
Negotiable
Price
Integrated IPX1-IPX6 Waterproof Test Chamber with PLC-controlled Operation and 360° Rotatable Sample Table
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Water Spray Test Chamber
Water Spray Temperature: Ambient ~ 88ºC (Adjustable)
Water Spray Angle: 0°,30°,60°,90°
Spray Nozzle: Four, 30 Seconds Each Position
Water Flow Rate: 14L-16L/min
Highlight:

Jet Cleaning Water Spray Test Equipment

,

IEC60529 Water Spray Test Chamber

,

IPX9K Climatic Test Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6300
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 7-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
Integrated IPX1-IPX6 Rainfall Test Chamber All-in-one IP Waterproof Testing Machine UP-6300
Product Overview
The Integrated IPX1-IPX6 Rain Test Chamber is designed to evaluate the enclosure protection of electrical and electronic products against water ingress. Built to meet IEC 60529 and GB/T 4208 standards, the chamber combines three test systems in one unit—vertical dripping, oscillating tube spray, and water jet—enabling IPX1 through IPX6 waterproof rating tests on a single platform.
The chamber features a PLC-controlled operation interface with a 360° rotatable sample table, enabling precise angle adjustment and uniform water distribution during testing. Widely used in automotive components, consumer electronics, LED lighting, outdoor communications equipment, and industrial enclosure testing applications.
  • IPX1 / IPX2: Vertical dripping test (sample tiltable to 15°)
  • IPX3 / IPX4: Oscillating tube spray and splash test
  • IPX5 / IPX6: Water jet test with 6.3 mm and 12.5 mm nozzles
  • Customized chamber size available
Technical Specifications
Model UP-6300
Internal dimensions (mm) 1000*1200*1000 D*W*H
Overall dimensions (mm) 1250*1700*2050 D*W*H
Water Spray Temperature Ambient ~ 88ºC (Adjustable)
Water Spray Angle 0°, 30°, 60°, 90°
Spray Nozzle Four, 30 seconds each position
Spray Range 30° ± 5° (Single hole); Space 100-150mm
Distance from water spraying to specimens 10~15cm
Water Pressure 8000-10000 Kpa (adjustable)
Water Flow Rate 14L-16L/min
Testing Platform Speed 5 ±1 r.p.m
Test Platform height 200-450mm, adjustable
Test Platform diameters 600mm
Load ≤100kg
Controller Programmable color LCD touch screen controller
PC Link with software RS-232 interface
Pressure meter Alarm function Power protection, timing (automatic stop), water protection, motor overheating protection, water temperature overheating automatic drainage
Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class
Heater Nichrome heater
Interior material SUS304 stainless steel
Exterior material Steel Plate with protective coating
Power Supply 380V 50HZ, Three-phase five-wire
Operating environment Grading, no corrosive gas, avoid direct sunlight; Temperature: +5~+35°C; Humidity: 45~85%RH
Product Images

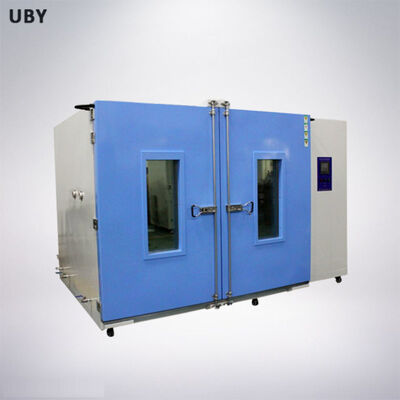

High Pressure Steam Jet Cleaning Water Spray IPX9K Climatic Test Chamber High Pressure Steam Jet Cleaning Water Spray IPX9K Climatic Test Chamber High Pressure Steam Jet Cleaning Water Spray IPX9K Climatic Test Chamber
Our Service
During the whole business process, we offer Consultative Selling services:
  1. Customer inquiry process: Discussing testing requirements and technical details, suggesting suitable products to customer to confirm, then quoting the most suitable price according to customer requirements.
  2. Specifications customize process: Drawing related drawings to confirm with customer for customized requirements. Offering reference photos to show the product appearance. Confirming the final solution and price with the customer.
  3. Production and delivery process: Producing machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, providing photos for customer confirmation. Performing factory calibration or third-party calibration. Checking and testing all details before arranging packing and delivery.
  4. Installation and after-sale service: Defining installation procedures and providing comprehensive after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months for FREE maintenance. Considering sea transportation, we can extend 2 months for our customers. If your machine doesn't work, you can send us an email or call us—we will try our best to find the problem through conversation or video chat if necessary. Once we confirm the problem, a solution will be offered within 24 to 48 hours.
What about the delivery term?
For our standard machines: If we have stock in the warehouse, delivery is 3-7 working days; If there is no stock, normally delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make special arrangements for you.
Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can offer not only standard machines but also customized machines according to your requirements. We can also put your logo on the machine, meaning we offer OEM and ODM services.
How can I install and use the machine?
Once you have ordered testing machines from us, we will send you the operation manual or video in English version through email. Most of our machines are shipped as complete units, meaning they are already installed—you just need to connect the power cable and start using them. If necessary, we can also assist you with on-site installation.
