IEC 60529 IP Dustproof Test Chamber AC220V For Verifying Protection Against Dust

1 Unit
MOQ
Negotiable
Price
IEC 60529 IP Dustproof Test Chamber AC220V For Verifying Protection Against Dust
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: IP Dustproof Test Chamber
Temperature Range: RT+10-70ºC(specify When Ordering)
Relative Humidity: 45%-75% (cannot Be Displayed)
Wire Diameter: 50μm
Width Of A Gap Between Wires: 75μm
Dust Volume: 2-4kg/M3
Humidity Range: ≤30%Rh
Test Time: 0-999h
Highlight:

IP Dustproof Test Chamber

,

IEC 60529 IP Testing Equipment

,

Dustproof Test Chamber AC220V
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6316
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
IP Dustproof Test Chamber for Verifying Protection Against Dust (Dust Chamber)
Product Overview

The IP Dustproof Test Chamber is designed for verifying the sand and dust resistance capacity of electrical and electronic products, automotive and motorcycle components, and sealing parts. This testing equipment evaluates product performance under sand and dust environmental conditions during use, storage, and transportation.

Compliance Standards

IEC 60529 Degrees of protection provided by enclosures (IP Code) IP5X, IP6X, figure 2.

Technical Specifications
Parameter Specification
Model UP-6316
Inner Size 1000*1500*1000mm (Other sizes can be customized)
Outer Size 1450*1720*1970mm
Temperature Range RT+10-70ºC (specify when ordering)
Relative Humidity 45%-75% (cannot be displayed)
Wire Diameter 50μm
Width of Gap Between Wires 75μm
Amount of Talcum Powder 2-4kg/m³
Test Dust Dry talcum powder
Test Time 0-999H, adjustable
Vibration Time 0-999H, adjustable
Timing Accuracy ±1s
Vacuum Range 0-10Kpa, adjustable
Pumping Speed 0-6000L/H, adjustable
Power AC220V, 50Hz, 2.0KW (customizable)
Protector Leakage protection, short circuit protection

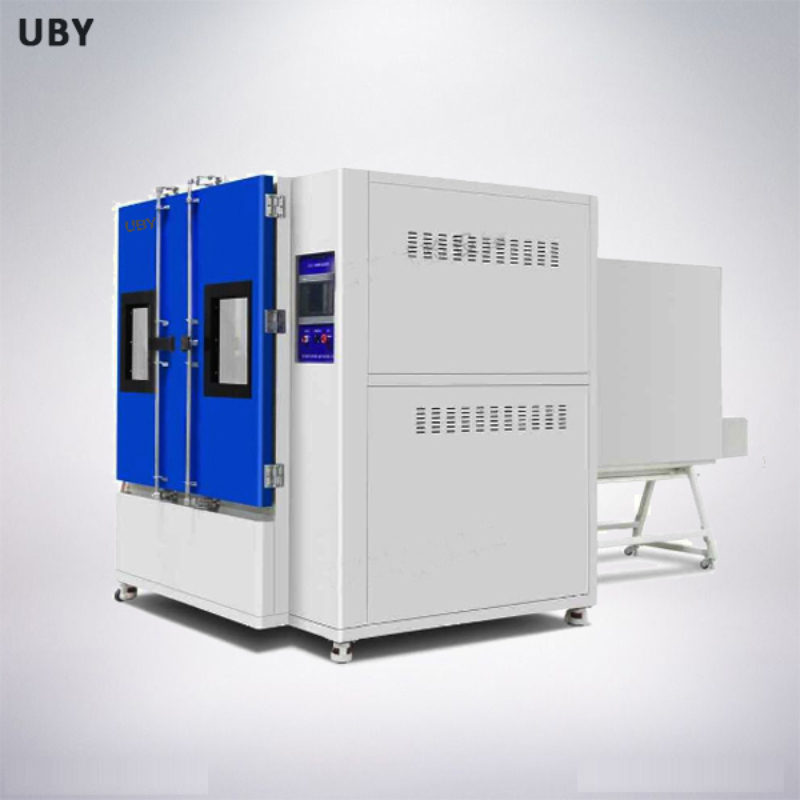

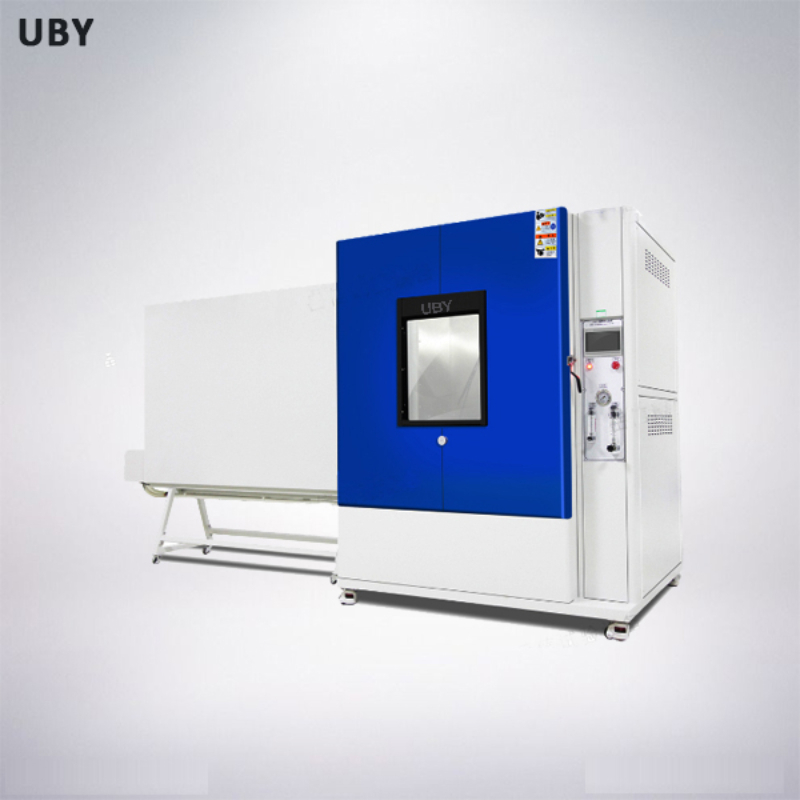

Product Images
IEC 60529 IP Dustproof Test Chamber AC220V For Verifying Protection Against Dust 0 IEC 60529 IP Dustproof Test Chamber AC220V For Verifying Protection Against Dust 1 IEC 60529 IP Dustproof Test Chamber AC220V For Verifying Protection Against Dust 2 IEC 60529 IP Dustproof Test Chamber AC220V For Verifying Protection Against Dust 3
Customer Service Process
  • Inquiry Process: Technical consultation and requirement analysis with product recommendations and quotation
  • Customization Process: Technical drawings and reference photos for solution confirmation
  • Production & Delivery: Manufacturing according to PO requirements with production updates and calibration services
  • Installation & Support: On-site installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes 12-month warranty after shipment with free maintenance. Extended 2-month warranty is available for sea transportation. Technical support is provided via email, phone, or video chat with solutions offered within 24-48 hours.

What about the delivery term?

Standard machines with stock: 3-7 working days; Without stock: 15-20 working days after payment; Urgent orders receive special arrangement.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to customer requirements. OEM and ODM services including logo placement are available.

How can I install and use the machine?

English operation manuals and videos are provided via email. Most machines are shipped fully assembled requiring only power connection. On-site installation assistance is available when necessary.
