UP-2001 5KN Single Column Computer Control Tensile Tester for Plastic Rubber Peel Tensile Test

1 Unit
MOQ
Negotiable
Price
UP-2001 5KN Single Column Computer Control Tensile Tester for Plastic Rubber Peel Tensile Test
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Tensile Tester Equipment
Effective Test Width (mm): 450mm
Effective Tensile Space (mm): 700mm
Max Capacity: 20-100000kN
Accuracy Grade: 0.5
Display: Digital
Control: Computer Control
Weight: 100-500Kg
Power Source: AC110-220V
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-2001
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-2001 5KN Single Column Computer Control Tensile Tester for Plastic Rubber Peel Tensile Test
Product Overview

The UP-2001 5KN Single Column Computer Control Tensile Tester is a compact desktop universal material testing equipment designed for precision testing applications. Equipped with a precision servo motor and ball screw transmission system, and controlled by professional computer testing software, this machine performs tensile, compression, peeling, tearing, bending, and shear tests.

The system automatically calculates key parameters including tensile strength, elongation at break, peel force, and yield strength. It generates force-displacement curves and supports customized test reports for comprehensive analysis.

Compliance Standards

ISO 527, ISO 37, ASTM D638, ASTM D412, ASTM D882, ASTM D903, GB/T 1040, GB/T 2792, JIS K6251

Applications

Suitable for testing rubber, plastic, film, textile, and electronic materials. Meets quality inspection, R&D, and incoming material verification requirements across various industries.

Technical Specifications
Parameter Specification
Capacity 500Kg
Accuracy Level Level 1
Test Force Range 0.4%~100%FS
Force Accuracy Within ± 1% or other
Strength Resolution 1 / 300000 or other
Displacement Indication Error Within ± 0.5% of the indicated value
Displacement Resolution 0.01mm or other
Transmission Mode Servo Motor
Control System Servo Drive Controller
Servo Motor Power 0.4KW
Test Speed Range 1～500mm/min
Speed Accuracy Within ± 0.5% of the indicated value or other
Test Stroke (excluding fixture) 800mm or other
Software Special software for material testing machine based on Windows-XP platform
Dimensions (W × D × H) 700×400×1700mm
Power Supply AC 380V 50Hz
Weight Approximately 135kg
Product Images

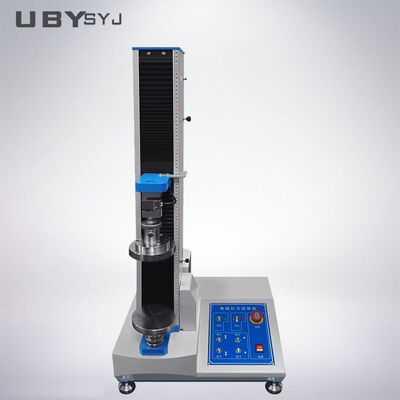

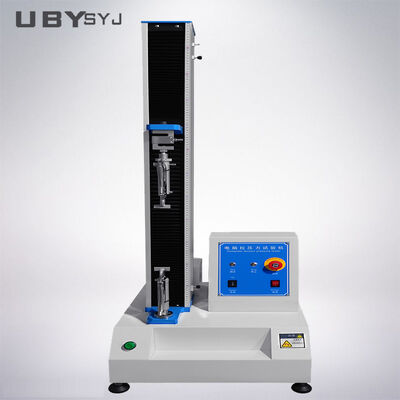

UP-2001 5KN Single Column Tensile Tester front view UP-2001 5KN Single Column Tensile Tester side view
Our Service Commitment

We provide comprehensive consultative selling services throughout the entire business process:

  • Customer Inquiry: Technical discussion and requirement analysis with product recommendations and competitive pricing
  • Customization: Detailed drawings and reference photos for customized solutions with final confirmation
  • Production & Delivery: Quality-controlled manufacturing with progress updates, calibration services, and timely delivery
  • Installation & Support: Professional installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months consideration for sea transportation. For technical support, contact us via email or phone for prompt problem resolution within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including custom branding with your logo.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. We offer on-site installation assistance when necessary.
