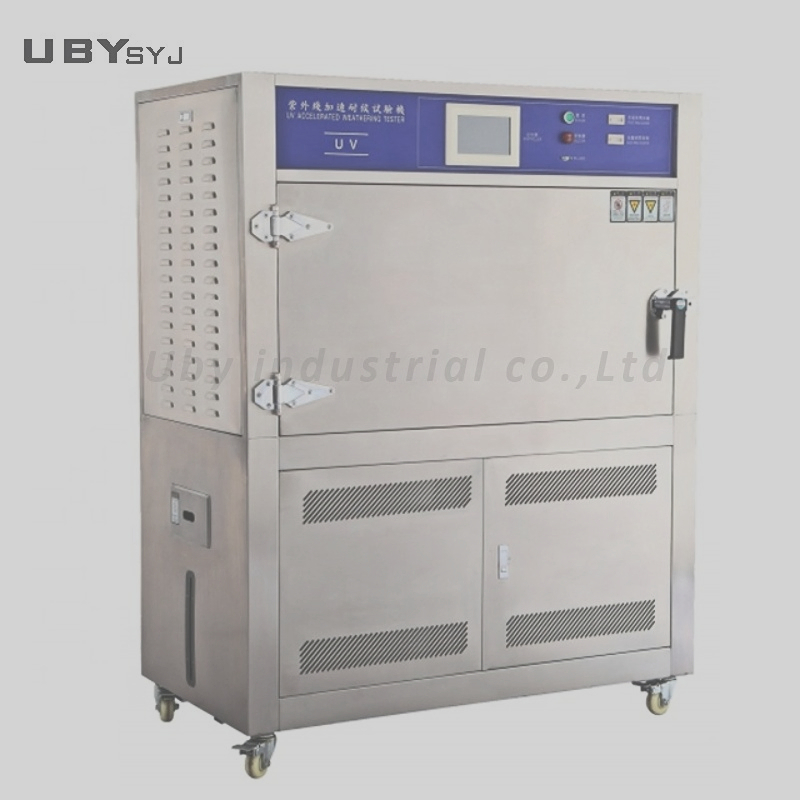

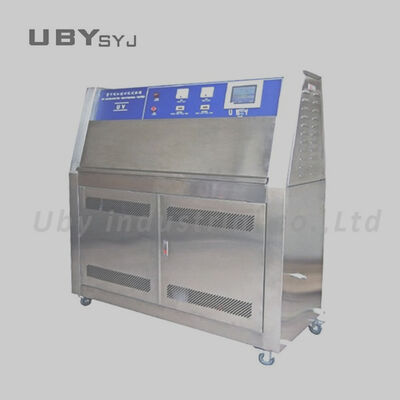

Name: SUS304 Stainless Steel Accelerated Aging Testing Chamber With Solar Simulation System
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6200
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Accelerated Aging Testing Chamber

Model NO.: UP-6200

UV Lamp: 8 PCS

UVA: 340 Lamps

UVB: 313 Lamps

Himidity Range: 95% R.H

Materials: SUS#304 Stainless Steel

Warranty: 1 Year

Custom Service: OEM,ODM

Size Service: Support Customer Customization

Highlight:

ISO Accelerated Ageing Chamber

SUS304 Accelerated Aging Test Chamber

Stainless Steel Accelerated Aging Test Chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6200

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5-15 work days

Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram

Supply Ability: 30 Unit/month

Gallery

SUS304 Stainless Steel Accelerated Aging Testing Chamber With Solar Simulation System

Product Description

UP-6200 UVB & UVA 340 Lamp Paint Accelerated Aging Testing Chamber Solar Simulation System

Product Overview

Widely used in paint, coating, plastic & rubber material, printing & packing, adhesive, car & motorcycle, cosmetic, metal, electron, electroplate industry, etc.

Compliance Standards

ASTM G153, ASTM G154, ASTM D4329, ASTM D4799, ASTM 4587, SAE J2020, ISO4892.

Key Features

CNC machine processed construction with attractive appearance and easy-to-use bidirectional flip-cover design
Imported #SUS stainless steel interior and exterior for enhanced texture and cleanliness
Inner tank water channel heating for rapid, uniform temperature distribution
Vortex-flow and U-type sediment drainage system for easy cleaning
User-friendly QUV design with easy operation and reliable safety
Adjustable specimen thickness with easy installation
Upward rotating door design for unobstructed operation
Unique condensation system requiring only tap water
Under-container water heater for long life and easy maintenance
External water level control for easy monitoring
Integrated wheels for easy mobility
Simple computer programming interface
Long-life irradiation calibrator
Comprehensive English and Chinese manuals included

Technical Specifications

Parameter	Specification
Model	UP-6200
Working Chamber Size (CM)	45×117×50
Outside Size (CM)	70×135×145
Rate of Power	4.0 (KW)
Tube Number	UV Lamp 8, each side 4
Temperature Range	RT+10ºC~70ºC
Humidity Range	≥95% R.H
Tube Distance	35mm
Distance between Sample and Tube	50mm
Supporting Sample Plate Quantity	Length 300mm×Width 75mm, Approximately 20 pcs
Ultraviolet Wavelength	290nm~400nm UV-A340, UV-B313, UV-C351
Tube Rate of Power	40W
Temperature Controller	Imported LED, digital P.I.D + S.S.R. Microcomputer integration controller
Time Controller	Imported programmable time integration controller
Illumination Heating System	All autonomous system, nichrome heating
Condensation Humidity System	Stainless steel surface evaporative humidifier
Blackboard Temperature	Thermometal blackboard thermometer
Water Supply System	Humidification water supply uses automatic controlling
Exposure Way	Moisture condensation exposure and illumination radiation exposure
Safety Protection	Leakage, short circuit, over-temperature, hydropenia, overcurrent protection

Product Images

Customer Service Process

1) Customer Inquiry Process

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications Customize Process

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and Delivery Process

We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.

4) Installation and After-Sale Service

Defines installing those products in the field and providing after-sales support.

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers. Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

What about the delivery term?

For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.

Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
