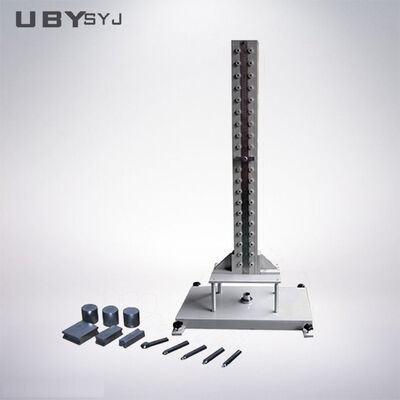

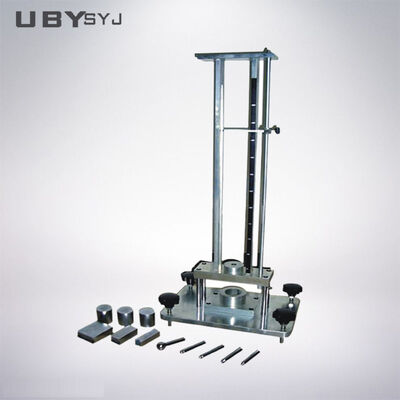

Manual DuPont Impact Testing Machine Coating Film Impact Resistance Tester UP-3019
Product Overview
The DuPont Impact Tester is designed to evaluate the impact resistance of coating films, paint layers and flexible substrates. By applying a defined impact force onto the test sample, it checks for cracks, peeling and deformation on the coating surface. The equipment features stable impact weight drop control, simple operation and reliable test results, widely used for quality inspection of painted and coated materials.
Standards Compliance
ASTM D2794; JIS-K5600; ISO 6272; GB/T 1732
Applications
Suitable for quality testing of paint, coating, metal sheet, plastic parts, automotive accessories, hardware products, packaging materials and surface finishing industries.
Specifications
| Item |
Specification |
| Test Name |
DuPont Impact Resistance Test |

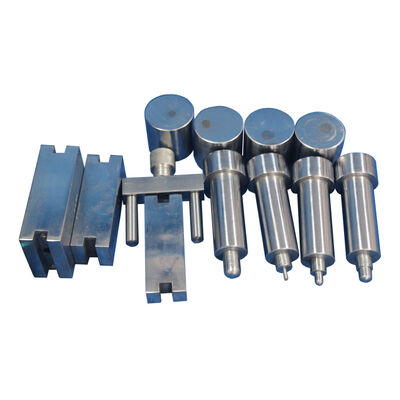

| Impact Weight |
300g / 500g / 1000g (Optional) |
| Drop Height Range |
0-500mm Adjustable |
| Test Die Diameter |
8mm / 12.7mm (Optional) |
| Sample Thickness |
≤2mm |
| Base Material |
High strength Cast Iron |
| Operation Mode |
Manual Drop |
Our Service
During the whole business process, we offer Consultative Selling services.
1) Customer Inquiry Process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
2) Specifications Customize Process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
3) Production and Delivery Process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
4) Installation and After-Sale Service:
Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.
Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
