Home /Products/Impact Testing Machine/DuPont Impact Tester with 300g / 500g / 1000g Impact Weight and 0~500mm Adjustable Drop Height for ASTM D 2794 Compliance

DuPont Impact Tester with 300g / 500g / 1000g Impact Weight and 0~500mm Adjustable Drop Height for ASTM D 2794 Compliance

1
MOQ
$999~$3000
Price
DuPont Impact Tester with 300g / 500g / 1000g Impact Weight and 0~500mm Adjustable Drop Height for ASTM D 2794 Compliance
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-3019
Service Support: OEM ODM
Language: Chinese And English
MOQ: 1 PCS
Impact Weight: 300g / 500g / 1000g (Optional)
Drop Height Range: 0~500mm Adjustable
Test Die Diameter: Mm / 12.7mm (Optional)
Sample Thickness: ≤2mm
Highlight:

300g / 500g / 1000g Impact Weight Impact Tester

,

0~500mm Adjustable Drop Height Impact Testing Machine

,

ASTM D 2794 Compliant DuPont Impact Tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-3019
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/A,D/P,T/T
Supply Ability: 20 Unit/Month
Product Description
DuPont Impact Tester for Paint Coating Impact Resistance Test UP-3019

This tester is designed to evaluate the impact endurance of coating materials after application. The testing procedure involves placing the coated face of the specimen upward and connecting it with a specified radius impact head. A selected weight is then dropped from a fixed height to impact the head, after which the coating is examined for damage or deformation.

For painting and coating materials testing, an impacting head with various round angles contacts the specimen initially. A selected weight then free-falls from a predetermined height to strike the impacting head and impact the specimen. After testing three additional specimens using the same method and allowing them to rest for one hour, the paint is inspected for cracks.

Compliance Standards

ASTM D 2794, JIS K 5400, CNS 10756, JIS K5600-1999, EN, GB, ISO, UL

Technical Specifications
Parameter Plastic Sample Coating Sample
Drop Height 50-1000mm, 50mm interval 50-500mm, 50mm interval
Ball Drop Control Mode Manual setting
Impact Ball Weight 1000, 2000G 300, 500, 1000G
Ball Diameter 7.9mm (5/16in) 1/2, 1/4, 3/16, 1/8, 1/16in
Sample Base Diameter Plane 8.1mm, 15mm Plane 1/2, 1/4, 3/16, 1/8, 1/16in
Machine Dimensions (D×W×H) 450×580×1280mm 300×580×770mm
Weight 50kg 45kg

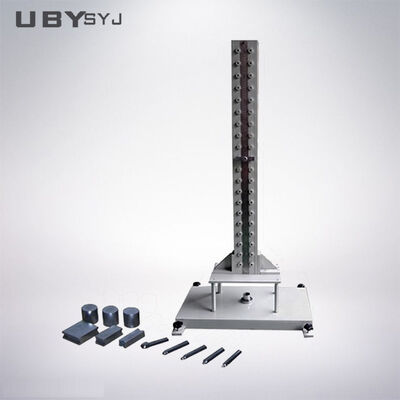

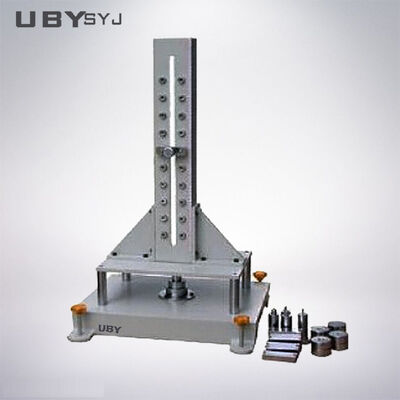

DuPont Impact Tester main unit Plastic DuPont Impact Tester side view Plastic DuPont Impact Tester front view
Our Service Commitment

We provide consultative selling services throughout the entire business process:

  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization: Create detailed drawings for customized requirements, provide reference photos, and confirm final solutions
  • Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation and After-Sales: Provide field installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months consideration for sea transportation.

If your machine experiences issues, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days

Out-of-stock items: 15-20 working days after payment

Urgent requirements receive special arrangement priority

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specifications. We provide OEM and ODM services, including logo application on machines.

How can I install and use the machine?

We provide English operation manuals and videos via email upon order completion. Most machines ship fully assembled - simply connect power and begin operation. When necessary, we offer on-site installation assistance.
