Zero Height Impact Tester Drop Test Machine with Zero-height Free Fall Test Max Load 80kg and Adjustable Drop Height 400-1500mm

1
MOQ
Negotiable
Price
Zero Height Impact Tester Drop Test Machine with Zero-height Free Fall Test Max Load 80kg and Adjustable Drop Height 400-1500mm
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-3020
Service Support: OEM ODM
Language: Chinese And English
Applications: Package Carton Box
Drop Height Range: 400-1500mm (Can Be Customized)
Max Load Of Specimen: 80kg
Drop Error: ±5mm
Drop Plane Error: <1°
Highlight:

Zero-height free fall test Impact Testing Machine

,

Max Load 80kg Drop Test Machine

,

Adjustable Drop Height 400-1500mm Zero Height Impact Tester

Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-3020
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5-10work days
Payment Terms: D/A,D/P,T/T
Supply Ability: 20 Unit/Month
Product Description

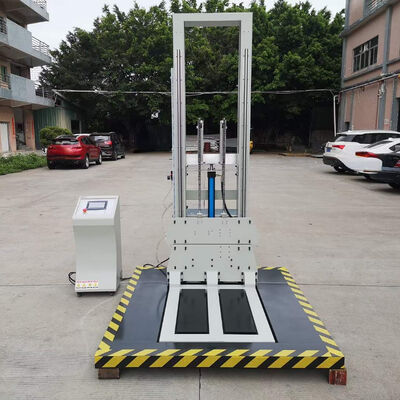

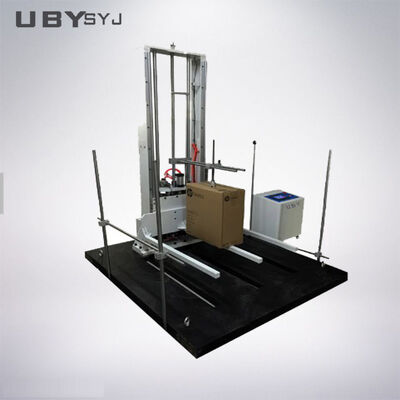

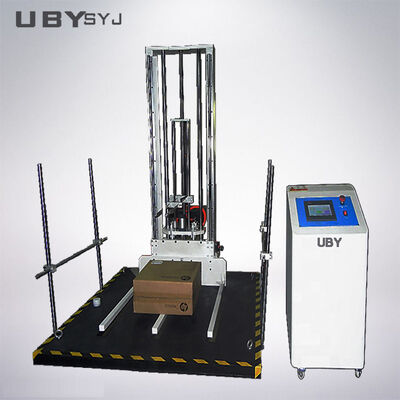

Zero Height Impact Tester Zero Distance Drop Test Machine for Packaging Carton Box UP-3020
Product Introduction

Zero Height Impact Tester is a professional packaging drop testing machine specially designed for heavy and large packaged goods. Adopting fork lifting and instant release structure, it realizes zero-height free fall test to simulate actual impact damage during logistics transportation, handling and stacking. It supports surface, edge and corner drop tests, features high precision, stable performance and easy operation, helping manufacturers verify packaging durability and optimize packaging solutions effectively.

Compliance Standards
  • ISO 2248, ASTM D5276 international drop test standards
  • ISTA 1A/1B/2A/3E e-commerce packaging test specifications
  • IEC 68-2 series environmental impact test standards
  • GB/T 4857.5 national packaging drop test standard
Applications
  • Electronic appliances, household products and precision instruments packaging test
  • Corrugated cartons, plastic turnover boxes and foam packaging performance test
  • Cross-border e-commerce logistics packaging certification (Amazon, international express)
  • Hardware, ceramics, furniture and other fragile & heavy goods packaging drop test
Technical Specifications
Item Specification
Test Type Flat / Edge / Corner Zero-height Drop Test
Drop Height 0-1200mm / 0-1500mm (Optional)
Max Loading Weight 150kg / 300kg / 500kg (Optional)
Max Test Sample Size 1200×1200×1200mm (Customized)
Control Mode Digital LCD Precision Control
Driving Method Pneumatic / Electric Drive
Test Accuracy ±1mm
Power Supply 220V 50Hz
Our Service

During the whole business process, we offer Consultative Selling services.

Customer Inquiry Process

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

Specifications Customize Process

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

Production and Delivery Process

We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.

Installation and After-Sale Service

Defines installing those products in the field and providing after-sales support.

Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.

Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?

For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; if there is no stock, normally, the delivery time is 15-20 working days after payment is received; if you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
