IEC61730 Standard Digital Glass Shot Bag Impact Tester with 45kg Shot Bag for Safety Glass Testing

1
MOQ
Negotiable
Price
IEC61730 Standard Digital Glass Shot Bag Impact Tester with 45kg Shot Bag for Safety Glass Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-3009
HS Code: 9024800000
Service Support: OEM ODM
Language: Chinese And English
Applications: Glass, Safety Glass
Swing Arm Radius: 1530mm
Impact Height: 300~1200mm
Impact Shot Bag Weight: 45kg±0.1kg
Shot Diameter: 2.5mm
Highlight:

IEC61730 glass impact tester

,

digital shot bag impact tester

,

45kg safety glass testing machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-3009
Payment & Shipping Terms
Packaging Details: Professional export wooden box packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union,Paypal
Supply Ability: 10 Unit/month
Product Description
IEC61730 Digital Glass Shot Bag Impact Tester for Laminated and Tempered Glass
Product Overview

The pendulum impact tester is a specialized device used for impact testing of architectural glass and safety glass. It measures the penetration resistance or strength of glass under impacts of the same mass but from different heights.

Implementation Standards
  • According to IEC 61730:2-2004 No.10.10 "Module Rupture Test"
  • According to JJG 128-1999 "Safety Glass Shot Bag Impact Tester"
  • GB9962-1999, suitable for testing impact resistance of laminated glass
  • GB17841-1999, suitable for testing toughened glass and semi-tempered glass
Shot Bag Specifications
  • Mass of shot bag: 45±0.1kg
  • Maximum diameter: 250mm
Test Framework

Internal dimensions of sample frame: length 1920±10mm, width 845±10mm. The test framework features markings with thickness of 3mm, width of 15mm, and hardness A50°.

Technical Specifications
Project Specification
Impact method Shot bag pendulum impact
Swing arm radius 1530mm
Impact height 300~1200mm
Impact shot bag weight 45kg±0.1kg
Shot diameter ∮2.5mm
Sample size H1930×W864mm
Wooden interior dimensions H1911×W845mm
Specimen fixed frame The part in contact with the sample is rubber with a shore hardness of 50 degrees
Size (W×D×H) 1800×3049×2775mm
Weight Around 700kg
Power supply 1∮ AC220V 50HZ 3A or specify
Product Images

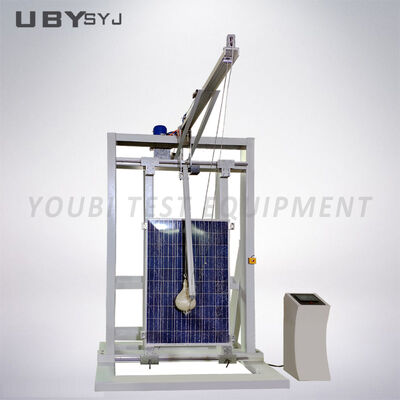

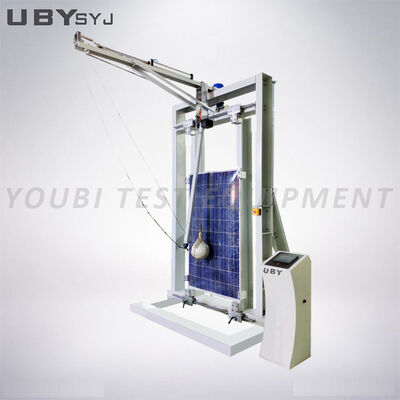

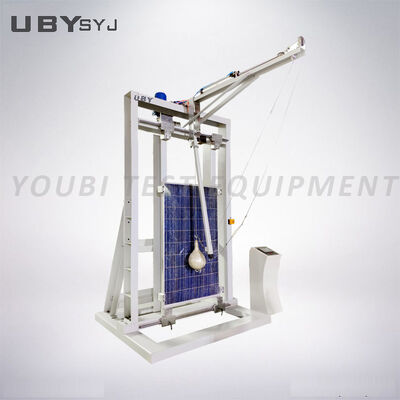

IEC61730 Standard Digital Glass Shot Bag Impact Tester with 45kg Shot Bag for Safety Glass Testing 0 IEC61730 Standard Digital Glass Shot Bag Impact Tester with 45kg Shot Bag for Safety Glass Testing 1 IEC61730 Standard Digital Glass Shot Bag Impact Tester with 45kg Shot Bag for Safety Glass Testing 2 IEC61730 Standard Digital Glass Shot Bag Impact Tester with 45kg Shot Bag for Safety Glass Testing 3
Our Service Process
  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customize Process: Create drawings for customized requirements, provide reference photos, and confirm final solutions
  • Production and Delivery Process: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange shipping
  • Installation and After-sale Service: Provide on-site installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months for FREE maintenance, extended to 14 months considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment receipt. We can make special arrangements for urgent requirements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you just need to connect the power cable and start using. We also offer on-site installation assistance when necessary.
