IK01-IK10 Pendulum Impact Test Machine with Adjustable Impact Height (200-1200mm) and Customizable OEM/ODM Service

1
MOQ
Negotiable
Price
IK01-IK10 Pendulum Impact Test Machine with Adjustable Impact Height (200-1200mm) and Customizable OEM/ODM Service
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-3012
Service Support: OEM ODM
Language: Chinese And English
MOQ: 1 PCS
Applications: Lighting,Safety Products
Specification: Refer To The Actual Size Specifications
Highlight:

pendulum impact test machine adjustable height

,

impact testing machine customizable OEM service

,

IK01-IK10 pendulum impact tester with warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: UP-3012
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-3012 Ik01-Ik10 Pendulum Impact Test Machine Compliant with IEC62262 IEC60068-2-75 BSEN50102
Product Overview

The UP-3012 Ik01-Ik10 Pendulum Impact Test Machine conforms to EN IEC62262, IEC60068-2-75, and BSEN50102 standards. This equipment is designed for mechanical strength testing of sheet metal components such as substation arks and metalloid electric energy metering cubicles.

Key Applications

The Ik07-Ik10 pendulum impact test machine is specifically used for energy impact testing (energy levels above 2J) with adjustable mounting brackets and impact angles to accommodate various testing requirements.

Technical Parameters

Pendulum Specifications:

  • Length: 1000mm
  • External diameter: 15.9 mm
  • Thickness: 1.5 mm
  • Material: Steel

The impact height is adjustable (200-1200mm) and the impact apparatus can be moved on all sides. Custom configurations are available.

Energy Specifications
Energy/J ≤1±10% 2±5% 5±5% 10±5% 20±5% 50±5%
Equivalent mass2%/KG 0.25(0.2) 0.5 1.7 5 5 10
Material Nylon Steel
R/mm 10 25 25 50 50 50
D/mm 18.5(20) 35 60 80 100 125
f/mm 6.2(10) 7 10 20 20 25
r/mm - - 6 - 10 17
L/mm According to equivalent mass to adjust and determine
Material Specifications
  • A. Rockwell hardness HRR 85-100, according to ISO2039-2
  • B. Fe 490-2 according to ISO1052, Rockwell hardness HRR 80-85, according to ISO6508
Drop Height Specifications
Energy/J 0.14 0.2 (0.3) 0.35 (0.4) 0.5 0.7 1 2 5 10 20 50
Equivalent mass2%/KG 0.25 (0.2) 0.25 (0.2) 0.25 (0.2) (0.2) 0.25 0.25 0.5 1.7 5 10
Drop height ±1%/mm 56 (100) 80 (150) 140 (200) (250) 200 280 400 300 200 500
Collision Energy and IK Code Correspondence
IK Code IK01 IK02 IK03 IK04 IK05 IK06 IK07 IK08 IK09 IK10
Collision Energy/J 0.14 0.2 0.35 0.5 0.7 1 2 5 10 20
Product Images

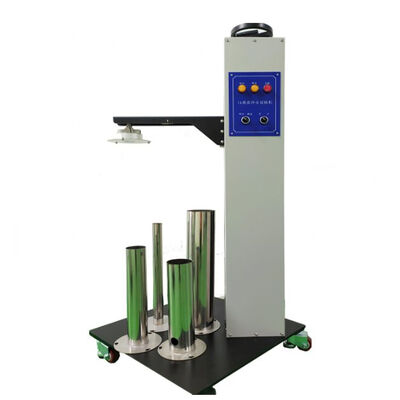

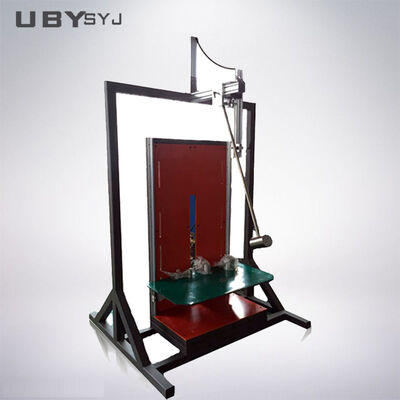

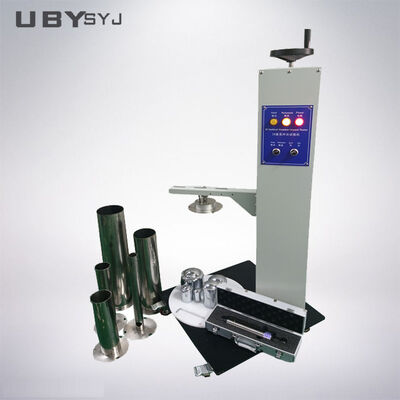

UP-3012 Ik01-Ik10 Pendulum Impact Test Machine front view UP-3012 Ik01-Ik10 Pendulum Impact Test Machine side view UP-3012 Ik01-Ik10 Pendulum Impact Test Machine detailed components
Our Service Commitment

We provide comprehensive Consultative Selling services throughout the entire business process:

Customer Inquiry Process
  • Discuss testing requirements and technical details
  • Suggest suitable products for customer confirmation
  • Provide competitive pricing based on customer requirements
Specifications Customization Process
  • Create detailed drawings for customized requirements
  • Provide reference photos showing product appearance
  • Confirm final solution and pricing with customer
Production and Delivery Process
  • Manufacture machines according to confirmed PO requirements
  • Provide production progress photos
  • Conduct factory calibration or third-party calibration as required
  • Perform comprehensive testing and quality checks
  • Coordinate timely delivery and shipping
Installation and After-Sales Service
  • Provide on-site installation support
  • Offer comprehensive after-sales technical support
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation. If your machine requires service, contact us via email or phone. We will diagnose the issue through conversation or video chat and provide solutions within 24-48 hours.

2. What about the delivery term?

For standard machines in stock: 3-7 working days. For machines not in stock: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.

4. How can I install and use the machine?

We provide comprehensive English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. When necessary, we offer on-site installation assistance.
