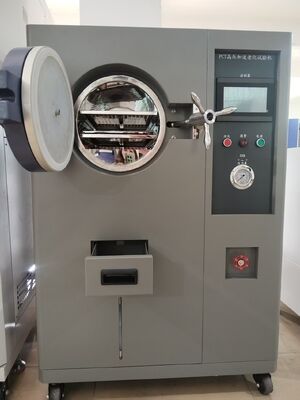

PCT Test Chamber (Pressure Cooker Test Chamber) is a professional saturated steam accelerated aging test equipment, specially designed for high-pressure saturated damp heat reliability verification.
Different from HAST chamber with adjustable humidity, PCT runs under 100% fixed saturated humidity, simulating extreme high temperature and pressure steam environment to rapidly trigger internal moisture penetration, material delamination and sealing failure of electronic products.
It features simple operation, strong pressure resistance and highly repeatable test data, widely used for destructive accelerated aging, airtightness and moisture resistance inspection of high-reliability electronic parts. Fully optimized for global B2B industrial procurement logic, compatible with mainstream international test standards.
PCT test chamber is suitable for testing high humidity demagnetization and material corrosion in the semiconductor and IC packaging, magnetic materials industry, verifying laminated adhesion and waterproof performance of PCB and packaging materials, testing automotive and aerospace electronics and daily electronic components, etc.
| Item | Specification |
|---|---|
| Inner Chamber Volume | 36L / 54L / 80L (Optional) |
| Temperature Range | 105℃ ~ 143℃ |
| Temperature Accuracy | ±0.1℃ |
| Temperature Uniformity | ≤±0.4℃ |
| Humidity Condition | 100%RH Fixed Saturated Steam |
| Working Pressure Range | 0.05~0.30MPa (1~3.0kgf/cm²) |
| Cooling Mode | Independent Air Cooling |
| Inner/Outer Material | Inner: SUS316L; Outer: SUS304 |
| Working Voltage | 220V/380V, 50/60Hz Optional |
| Dimension (W*D*H) | 720*580*850mm |
| Net Weight | 168kg |
During the whole business process, we offer Consultative Selling services.
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
Defines installing those products in the field and providing after-sales support.
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.
Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
