Home /Products/Impact Testing Machine/UP-3014 Digital Izod Impact Tester with 3.5m/s Impact Speed and 150° Pendulum Angle for Plastic and Rubber Testing

UP-3014 Digital Izod Impact Tester with 3.5m/s Impact Speed and 150° Pendulum Angle for Plastic and Rubber Testing

1
MOQ
Negotiable
Price
UP-3014 Digital Izod Impact Tester with 3.5m/s Impact Speed and 150° Pendulum Angle for Plastic and Rubber Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-3014
Pendulum Energy: 1J, 2.75J, 5.5J
Pendulum Angle: 150°
Blade Angle: 30°
Impact Speed: 3.5m/s
Impact Center Distance: 335mm
Power Supply: AC220V±10% 50HZ
Applications: Plastic,Rubber
Highlight:

Digital Izod Impact Tester with 3.5m/s speed

,

Impact Testing Machine for plastic rubber

,

Izod Impact Tester with 150° pendulum
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-3014
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-7 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 80 Unit/Month
Product Description
UP-3014 Digital Izod Impact Tester for Material Toughness Testing
Product Overview

The Izod impact tester is a widely used method for measuring the impact resistance and toughness of materials, particularly plastics. During testing, a pendulum impacts a clamped specimen, and the material's impact resistance is evaluated by calculating the energy lost when the pendulum breaks the specimen.

Compliance Standards
  • ASTM D256
  • ISO 179
  • ISO 180
Applications

This tester verifies the impact strength of various plastics for product reliability and quality assurance, including:

  • Polyethylene (PE)
  • Polypropylene (PP)
  • ABS
  • Polycarbonate (PC)
  • Nylon
  • PVC
Technical Specifications
Item Charpy Impact Izod Impact
Pendulum energy 1J, 2J, 4J, 5J 1J, 2.75J, 5.5J
Pendulum angle 150°
Blade angle 30°
Blade front angle 5°
Blade back angle 10°
Impact speed 2.9m/s 3.5m/s
Impact center distance 221mm 335mm
Blade filleted radius R=2mm±0.5mm R=0.8mm±0.2mm
Energy loss 0.5J ≤4.0J
1.0J ≤2.0J
2.0J ≤1.0J
≥4.0J≤0.5J		 2.75J ≤0.06J
5.5J ≤0.12J
Pendulum torque Pd1J=0.53590Nm
Pd2J=1.07180Nm
Pd4J=2.14359Nm
Pd5J=2.67949Nm		 Pd2.75J=1.47372Nm
Pd5.5J=2.94744Nm
Print out Capacity, Angle, energy, etc.
Power supply AC220V±10% 50HZ

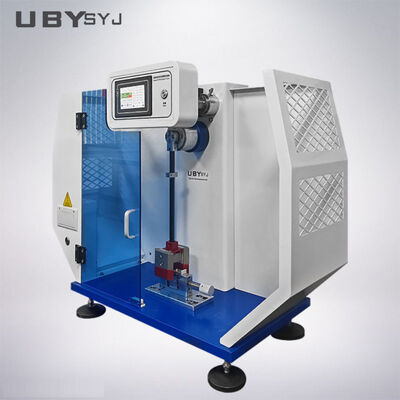

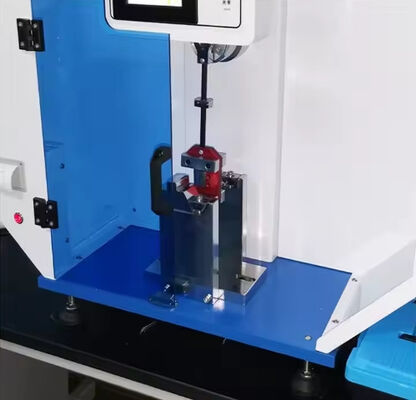

UP-3014 Digital Izod Impact Tester front view UP-3014 Digital Izod Impact Tester side view ISO179 Plastics - Hard Materials Izod Impact Strength Test Machine
Our Service Commitment

We provide comprehensive Consultative Selling services throughout the entire business process:

Customer Inquiry Process
  • Discuss testing requirements and technical details
  • Suggest suitable products for confirmation
  • Provide competitive pricing based on customer requirements
Customization Process
  • Create detailed drawings for customized requirements
  • Provide reference photos showing product appearance
  • Confirm final solution and pricing
Production and Delivery
  • Manufacture machines according to confirmed PO requirements
  • Provide production progress photos
  • Perform factory or third-party calibration as required
  • Comprehensive testing and quality checking
  • Professional packing and timely delivery
Installation and Support
  • On-site installation services
  • Comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory comes with a 12-month warranty after shipment. We offer 12 months of free maintenance, and considering sea transportation, we can extend this by 2 additional months for our customers. If your machine experiences issues, you can contact us via email or phone. We will work to identify the problem through conversation or video chat if needed, and provide solutions within 24 to 48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days
For non-stock items: 15-20 working days after payment receipt
Urgent requirements receive special priority arrangements
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including placing your logo on the equipment.
How can I install and use the machine?
Upon ordering, we provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable to begin operation. When necessary, we can provide on-site installation assistance.
