UP-3012 IEC62262 Compliant Pendulum Impact Tester with Frictionless Pendulum Pivot and Adjustable Impact Height

1
MOQ
Negotiable
Price
UP-3012 IEC62262 Compliant Pendulum Impact Tester with Frictionless Pendulum Pivot and Adjustable Impact Height
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-3012
Service Support: OEM ODM
Language: Chinese And English
MOQ: 1 PCS
Applications: Lighting,Safety Products
Specification: Refer To The Actual Size Specifications
Highlight:

IEC62262 compliant pendulum impact tester

,

frictionless pendulum pivot impact tester

,

adjustable impact height testing machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: UP-3012
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-3012 Reliable IEC62262 Pendulum Impact Tester with Frictionless Pendulum Pivot
Product Overview

The UP-3012 Pendulum Impact Tester is designed for mechanical strength testing of sheet metal components such as substation arks and metalloid electric energy metering cubicles. This advanced testing equipment conforms to EN IEC62262, IEC60068-2-75, and BSEN50102 standards, featuring adjustable mounting brackets and impact angles for comprehensive energy impact testing (energy levels exceeding 2J).

Technical Specifications

Pendulum Specifications:

  • Length: 1000mm
  • External Diameter: 15.9 mm
  • Thickness: 1.5 mm
  • Material: Steel
  • Adjustable Impact Height: 200-1200mm
  • Multi-directional Impact Apparatus Movement
  • Customizable Configurations Available

Energy Specifications:

Energy/J ≤1±10% 2±5% 5±5% 10±5% 20±5% 50±5%
Equivalent mass2%/KG 0.25(0.2) 0.5 1.7 5 5 10
Material Nylon Steel
R/mm 10 25 25 50 50 50
D/mm 18.5(20) 35 60 80 100 125
f/mm 6.2(10) 7 10 20 20 25
r/mm - - 6 - 10 17
L/mm According equivalent mass to adjust and determine

Material Specifications:

  • A. Rockwell hardness HRR 85-100, according to ISO2039-2
  • B. Fe 490-2 according to ISO1052, Rockwell hardness HRR 80-85, according to ISO6508

Drop Height Specifications:

Energy/J 0.14 0.2 (0.3) 0.35 (0.4) 0.5 0.7 1 2 5 10 20 50
Equivalent mass2%/KG 0.25 (0.2) 0.25 (0.2) 0.25 (0.2) (0.2) 0.25 0.25 0.5 1.7 5 5 10
Drop height ±1%/mm 56 (100) 80 (150) 140 (200) (250) 200 280 400 400 300 200 400 500

IK Code Correspondence:

IK Code IK01 IK02 IK03 IK04 IK05 IK06 IK07 IK08 IK09 IK10
Collision Energy/J 0.14 0.2 0.35 0.5 0.7 1 2 5 10 20
Product Images

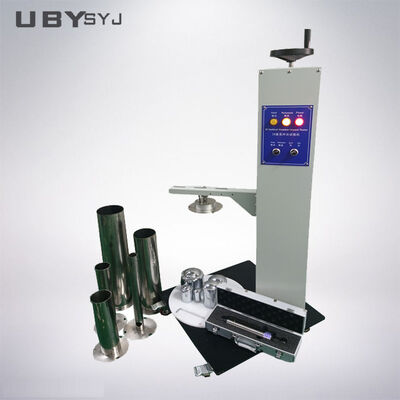

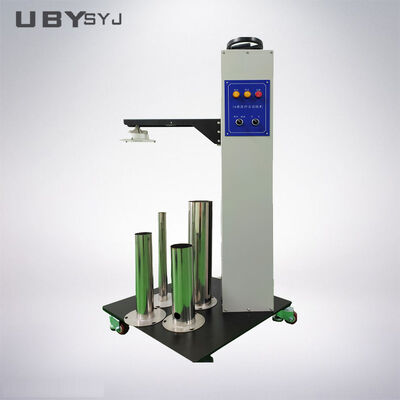

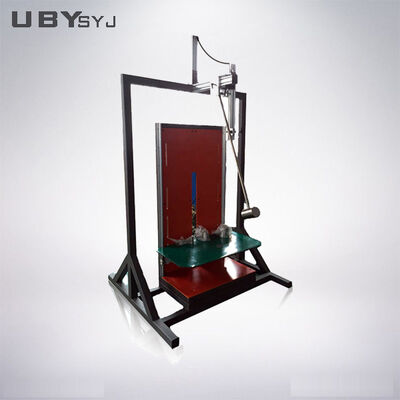

Ik01-Ik10 Pendulum Impact Test Machine compliant with EN IEC62262 IEC60068 standards Side view of Ik01-Ik10 Pendulum Impact Test Machine showing structural details Close-up view of Ik01-Ik10 Pendulum Impact Test Machine components
Our Service Commitment

We provide comprehensive Consultative Selling services throughout the entire business process:

1) Customer Inquiry Process:

Discussion of testing requirements and technical details, product recommendations, and competitive pricing based on customer specifications.

2) Customization Process:

Detailed drawings and reference photos for custom requirements, final solution confirmation, and pricing agreement.

3) Production and Delivery:

Strict adherence to confirmed specifications, production progress updates, factory or third-party calibration, comprehensive testing, and timely delivery coordination.

4) Installation and After-Sales Support:

Professional installation services and comprehensive after-sales support to ensure optimal performance.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months consideration for sea transportation. For technical support, contact us via email or phone for prompt troubleshooting and solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. Urgent requirements receive special priority arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specifications. We provide OEM and ODM services, including custom branding with your logo.

How can I install and use the machine?

We provide comprehensive English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
