UP-6124 Highly Accelerated Aging Test Chamber with ±0.5°C Temperature Stability, 105℃ ~143℃ Range, and 1.2 ~ 2.89 kg/cm² Pressure

1 Unit
MOQ
$2999~$8999
Price
UP-6124 Highly Accelerated Aging Test Chamber with ±0.5°C Temperature Stability, 105℃ ~143℃ Range, and 1.2 ~ 2.89 kg/cm² Pressure
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Hast Test Chamber
Model NO.: UP-6124
Temperature Range: 105℃ ~143℃
Humidity Range: 75% R.H. ~ 100% R.H.
Pressure Range: 1.2 ~ 2.89 Kg/cm² (including 1 Atm)
Heating Time: RT~132℃/85% R.H. In Approx. 50 Min
Warranty: 1 Year
Custom Service: OEM,ODM
Highlight:

Highly Accelerated Aging Test Chamber with ±0.5°C stability

,

Environmental Test Chamber with 105℃~143℃ range

,

Aging Test Chamber with 1.2~2.89 kg/cm² pressure
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6124
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5~15 work days
Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-6124 Reliable And Precise Highly Accelerated Aging Test Chamber With ±0.5°C Temperature Stability
Product Introduction

The High Accelerated Temperature and Humidity Stress Test Chamber is designed to evaluate the reliability of electronic components and products. By creating extreme environmental conditions including high temperature (105°C to 155°C), high humidity (65% to 100% RH), and high pressure (0.2 to 4.0 kg/cm²) in a sealed container, this chamber accelerates material aging and failure processes within a short timeframe (typically days or weeks). This rapid testing exposes potential product defects and predicts service life under normal usage conditions.

Applications

The Pressure Accelerated Aging Tester is widely used for testing sealing properties in various industries and applications:

  • Multi-layer circuit boards
  • IC sealing packages
  • LCD screens
  • LED components
  • Semiconductors
  • Magnetic materials
  • NdFeB and rare earth materials
  • Magnet iron components

The tester evaluates resistance to pressure and air tightness for the above-mentioned products.

Technical Specifications
Parameter Specification
Internal Dimensions Φ400 * D500mm (Φ: Diameter, D: Depth)
External Dimensions Approx. W850 * H1650 * D1490mm
Temperature Range 105℃ ~ 143℃
Humidity Range 75% R.H. ~ 100% R.H
Pressure Range 1.2 ~ 2.89 kg/cm² (including 1 atm)
Heating Time RT → 132℃ / 85% R.H. in approx. 50 min
Temperature Fluctuation ±0.5℃
Temperature Uniformity ±2℃
Humidity Fluctuation ±3% R.H.
Humidity Uniformity ±5% R.H.
Conforms to Standards JESDEC-A110, IEC 60068-2-66-1994, etc.

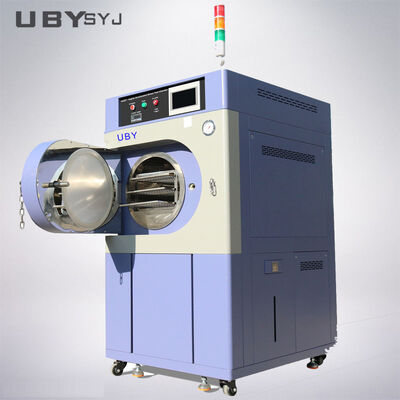

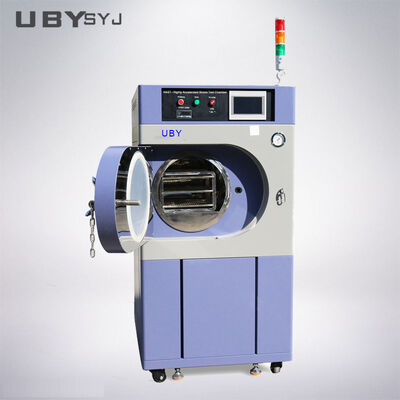

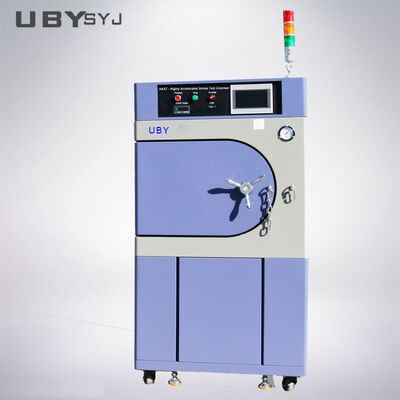

Product Images
UP-6124 Highly Accelerated Aging Test Chamber with ±0.5°C Temperature Stability, 105℃ ~143℃ Range, and 1.2 ~ 2.89 kg/cm² Pressure 0 UP-6124 Highly Accelerated Aging Test Chamber with ±0.5°C Temperature Stability, 105℃ ~143℃ Range, and 1.2 ~ 2.89 kg/cm² Pressure 1 UP-6124 Highly Accelerated Aging Test Chamber with ±0.5°C Temperature Stability, 105℃ ~143℃ Range, and 1.2 ~ 2.89 kg/cm² Pressure 2
Our Service Process

We provide comprehensive Consultative Selling services throughout the entire business process:

  1. Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer requirements.
  2. Specifications Customization Process: Create detailed drawings for customized requirements, provide reference photos for product appearance, and confirm final solutions and pricing.
  3. Production and Delivery Process: Manufacture machines according to confirmed PO requirements, provide production progress photos, conduct factory or third-party calibration, and arrange timely shipping with customer notification.
  4. Installation and After-Sales Service: Provide field installation services and comprehensive after-sales support to ensure optimal performance.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather Shoe Testing Equipment, and Plastic Rubber Testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation.

If your machine experiences issues, you can contact us via email or phone. We will diagnose the problem through conversation or video chat if necessary. Solutions are typically provided within 24 to 48 hours after problem confirmation.

2. What about the delivery term?

For standard machines in stock: 3-7 working days

For machines not in stock: 15-20 working days after payment receipt

Special arrangements can be made for urgent requirements.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including placing your logo on the equipment.

4. How can I install and use the machine?

Upon ordering, we provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable to begin operation. When necessary, we can provide on-site installation assistance.
