High-Accuracy Walk-in Temperature and Humidity Test Chamber Compliant With IEC 60068-2-2 and Stainless Steel 304 Construction

1 Unit
MOQ
Negotiable
Price
High-Accuracy Walk-in Temperature and Humidity Test Chamber Compliant With IEC 60068-2-2 and Stainless Steel 304 Construction
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Walk-in Temperatrue And Humidity Test Chamber
Temperature Range: -60ºC To +150ºC
Humidity Range: 20% To 98% Rh
Internal Material: Stainless Steel 304
Working Room Capacity: 8cubic Meter(Can Be Customization)
Custom Service: OEM,ODM
Size Service: Support Customer Customization
External Material: Stainless Steel/Paint Spray
Highlight:

High-Accuracy Walk-in Temperature and Humidity Test Chamber

,

Compliant With IEC 60068-2-2 Environmental Test Chamber

,

Stainless Steel 304 Climate Test Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6195
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-6195 IEC 60068-2-2 Compliant High-Accuracy Walk-in Temperature and Humidity Test Chamber
The UP-6195 walk-in test chamber is designed for comprehensive environmental testing of large machinery, components, and materials. This high-accuracy chamber performs temperature cycling, humidity testing, and combined climate simulations to evaluate product durability and performance under varying environmental conditions.
Applications
Ideal for testing large-scale industrial products, components, and materials through:
  • High temperature and low temperature testing
  • Temperature cycling and thermal shock testing
  • Humidity and heat combined environmental testing
  • Climate simulation for product adaptation verification
Compliance Standards
  • IEC 60068-2-2 Environmental Testing Standards
  • Test methods for environmental test equipment for electrical and electronic products - Temperature test equipment
  • Test methods for environmental test equipment for electrical and electronic products - Humidity and heat test equipment
  • JJF1101-2003 environmental test equipment temperature, humidity calibration specification
Technical Specifications
Parameter 8 m³ 12 m³ 17 m³ 28 m³
Test Space Volume 8 m³ 12 m³ 17 m³ 28 m³
Test Space Dimensions (mm) 2000W×2000D×2056H 2000W×2000D×3040H 2250W×2500D×3032H 2250W×2500D×5000H
External Dimensions (mm) 2240W×2240D×3800H 2240W×2240D×4780H 2490W×2740D×4900H 2490W×2740D×6860H
Floor Load Capacity 30000 N/m³
Temperature Range (No Load) ETZ Series: -60°C to +180°C (optional ranges available)
Humidity Range 15% to 95% RH (ETZ, ETCZ Series)
Dewpoint Temperature Range +4°C to +95°C
Heating/Cooling Rate Level 1 (K/min) 4.5 3.7 2.7 1.7
Heating/Cooling Rate Level 2 (K/min) 5.5 4.5 3.2 2.0
Temperature Constancy ±0.1K to ±0.5K (IEC60068-3-5)
Temperature Homogeneity ±0.5K to ±3.0K (IEC60068-3-5)
Humidity Constancy ±1.0% to ±5.0% RH (IEC60068-3-5)
Door Dimensions 900W×1900H (Single door), 2000W×2000H (Double door)
Power Requirements AC 380V±10%, 50Hz, 3/N/PE
Options & Accessories
Optional Accessories Standard Version Includes
Independent sensors for specimen protection 1 Entry port Φ100mm
1 Entry port Φ50mm 1 Silicon stopper for entry port
Drier filter for compressed air Automatic water supply
Ultrasonic Humidifier 1 Water tank with 20L capacity
Nitrogen gas auxiliary device 1 Water filter
Water-Cooled unit
Spare parts package
E-management and cyber-software
Video monitor system
APP for mobility management

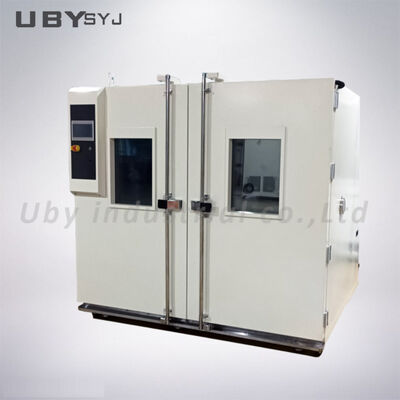

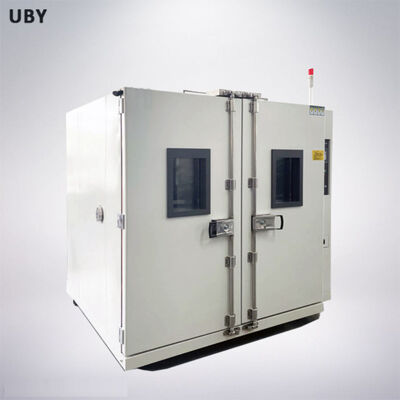

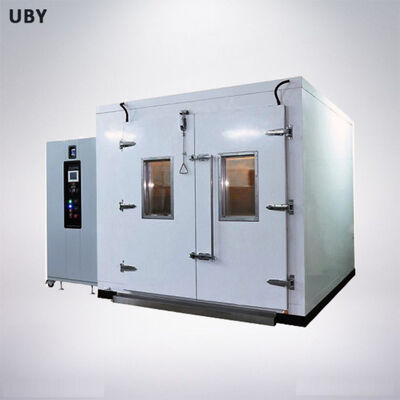

Product Images
High-Accuracy Walk-in Temperature and Humidity Test Chamber Compliant With IEC 60068-2-2 and Stainless Steel 304 Construction 0 High-Accuracy Walk-in Temperature and Humidity Test Chamber Compliant With IEC 60068-2-2 and Stainless Steel 304 Construction 1 High-Accuracy Walk-in Temperature and Humidity Test Chamber Compliant With IEC 60068-2-2 and Stainless Steel 304 Construction 2 High-Accuracy Walk-in Temperature and Humidity Test Chamber Compliant With IEC 60068-2-2 and Stainless Steel 304 Construction 3 High-Accuracy Walk-in Temperature and Humidity Test Chamber Compliant With IEC 60068-2-2 and Stainless Steel 304 Construction 4 High-Accuracy Walk-in Temperature and Humidity Test Chamber Compliant With IEC 60068-2-2 and Stainless Steel 304 Construction 5
Our Service Commitment
Consultative Selling Process
  • Inquiry Phase: Technical consultation, requirement analysis, and product recommendation with competitive pricing
  • Customization Phase: Detailed drawings, visual references, and final solution confirmation
  • Production & Delivery: Transparent manufacturing process with progress photos, calibration services, and timely shipping
  • Installation & Support: Professional installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of environmental testing equipment. All machines include a 12-month warranty with free maintenance. For international shipments, we extend this to 14 months. Technical support is available via email, phone, or video chat with solutions provided within 24-48 hours.
What is your delivery timeline?
Standard machines in stock: 3-7 working days
Custom orders: 15-20 working days after payment
Expedited production available for urgent requirements
Do you offer customization and branding services?
Yes, we provide comprehensive OEM and ODM services including custom specifications and logo placement according to your requirements.
How do I install and operate the equipment?
Most machines are shipped fully assembled. We provide English operation manuals and videos. Simply connect power to begin operation. On-site installation assistance is available when necessary.
