UP-6124 HAST Test Chamber with Double-Layer Stainless Steel Frame and Customizable Sample Rack for High Pressure Accelerated Aging Testing

1 Unit
MOQ
$599~$8999
Price
UP-6124 HAST Test Chamber with Double-Layer Stainless Steel Frame and Customizable Sample Rack for High Pressure Accelerated Aging Testing
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Constant Temperatrue And Humidity Chamber
Model NO.: UP-6124
HS Code: 8514199000
Temperature Range: Rt-132ºC
Warranty: 1 Year
Custom Service: OEM,ODM
Color Service: Support Customer Customization
Size Service: Support Customer Customization
Third-Party Calibration Service: Support Customer Customization
Transport Package: Professional Export Wooden Box Packaging.
Specification: Refer To The Actual Size Specifications
Additional Service: Support Customer Customization
Highlight:

Double-Layer Stainless Steel Frame HAST Test Chamber

,

Customizable Sample Rack Environmental Test Chamber

,

High Pressure Range 1.2~2.89MPa High Pressure Accelerated Aging Test Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6124
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5~15 work days
Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram
Supply Ability: 30 Unit/month
Product Description

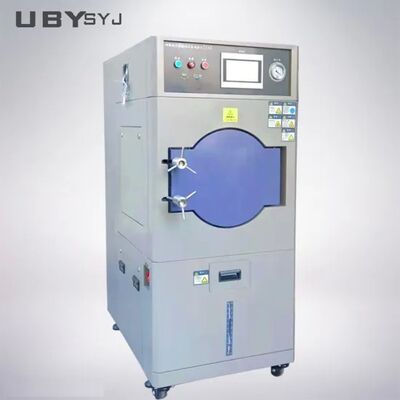

UP-6124 HAST Test Chamber for Testing Advanced High-Density Integrated Circuits
The UP-6124 HAST (Highly Accelerated Stress Test) Chamber is designed for accelerated aging testing of advanced high-density integrated circuits. This high-pressure aging testing machine enhances environmental stress (temperature) and operational stress (applied voltage, load) to accelerate the testing process, significantly reducing product or system life test duration. It enables comprehensive investigation and analysis of wear patterns, lifespan characteristics of electronic components and mechanical parts, fault distribution functions, and root causes of failure rate increases.
Key Features

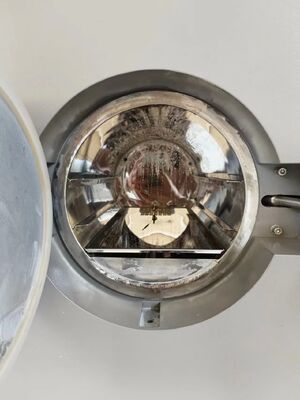

  • Circular liner design prevents test condensation dripping, eliminating direct superheated steam impact on products during testing

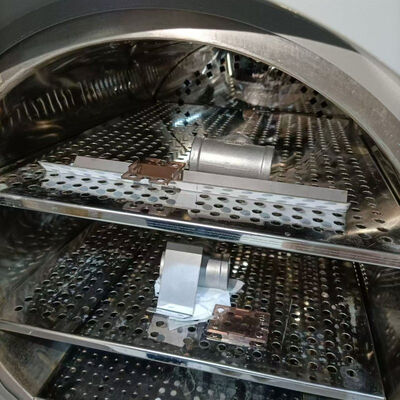

  • Double-layer stainless steel product frame with customizable rack options based on customer specifications
  • Standard eight test sample signal application terminals, expandable up to 55 bias terminals as needed
  • Specialized sample rack eliminates complex wiring operations
Technical Specifications
Name HAST Accelerated Pressure Aging Test Machine
Model UP-6124-35 UP-6124-45 UP-6124-55
Internal Dimension ΦxD (mm) 350x450 450x550 550x650
External Dimension (mm) W900xH1350xD900 W1000xH1480xD1000 W1150xH1650xD1200
Steam Temperature Range 100ºC~135ºC (143ºC optional)
Steam Humidity 70~100% R.H. steam humidity adjustable
Recursive Device Steam in forced-circulation
Safety Protective Device Water short storage protect, over pressure protect (automatically/manual water replenishing, automatically discharge pressure function)
Accessories Two layers stainless steel plate
Product Images
UP-6124 HAST Test Chamber with Double-Layer Stainless Steel Frame and Customizable Sample Rack for High Pressure Accelerated Aging Testing 0 UP-6124 HAST Test Chamber with Double-Layer Stainless Steel Frame and Customizable Sample Rack for High Pressure Accelerated Aging Testing 1 UP-6124 HAST Test Chamber with Double-Layer Stainless Steel Frame and Customizable Sample Rack for High Pressure Accelerated Aging Testing 2 UP-6124 HAST Test Chamber with Double-Layer Stainless Steel Frame and Customizable Sample Rack for High Pressure Accelerated Aging Testing 3
Our Service
Consultative Selling Services
Customer Inquiry Process:
Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.
Specifications Customization Process:
Create detailed drawings for custom requirements, provide reference photos for product appearance, and finalize solutions and pricing.
Production and Delivery Process:
Manufacture according to confirmed PO requirements, provide production progress photos, conduct factory or third-party calibration, and ensure timely delivery.
Installation and After-Sales Service:
Provide field installation services and comprehensive after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months consideration for sea transportation. For technical issues, contact us via email or phone - we provide solutions within 24-48 hours after problem confirmation.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority handling.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and fully customized machines according to your requirements. We provide OEM and ODM services, including custom branding and logos.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
