Name: UP-6195 Constant Humidity Temperature Test Chamber with -70~180ºC Temperature Range, 20%~98% Humidity Control, and Programmable LCD Display
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6195
Price: 4,799.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Constant Temperatrue And Humidity Chamber

HS Code: 8514199000

Model NO.: UP-6195

Warranty: 1 Year

Custom Service: OEM,ODM

Temperature Range: -70~180ºC

Humidity Range: 20%~98%

Color Service: Support Customer Customization

Size Service: Support Customer Customization

Specification: Refer To The Actual Size Specifications

Highlight:

Temperature Range -70~180ºC Environmental Test Chamber

Humidity Range 20%~98% Climate Test Chamber

Programmable LCD Display Constant Humidity Temperature Test Chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6195

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5~15 work days

Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram

Supply Ability: 20 Unit/month

Gallery

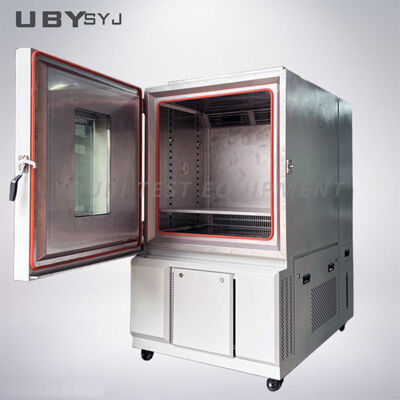

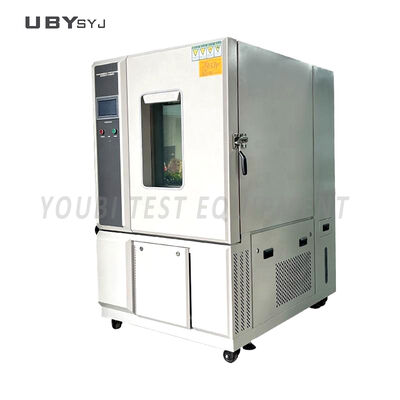

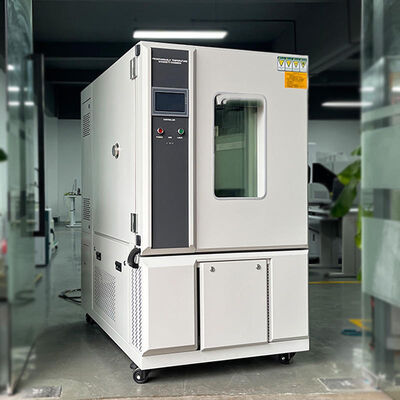

UP-6195 Constant Humidity Temperature Test Chamber with -70~180ºC Temperature Range, 20%~98% Humidity Control, and Programmable LCD Display

Product Description

UP-6195 Constant Humidity Temperature Test Chamber

Professional environmental test chamber designed for electronics and electrical appliances testing under controlled temperature and humidity conditions.

Key Features

Elegant circular body design with mist strip surface treatment
Rectangular double-paned viewing window with interior lighting
Double-layer insulated airtight doors for effective temperature insulation
Externally connectable water supply system with automatic recycling
French Tecumseh compressor using environmentally friendly R23 or R404A refrigerant
LCD display showing measured values, set values, and time
Multi-segment program editing with quick or ramp rate temperature/humidity control
Integrated casters with strong positioning screws for easy mobility

Design Standards

GB2423/T5170/10586/10592, IEC60068, GJB150, JIS C60068, ASTM D4714, CNS3625/12565/12566

Applications

This equipment simulates various environmental conditions to test material performance including heat resistance, dry resistance, humidity resistance, and cold resistance, enabling comprehensive material performance definition.

Technical Specifications

Model	UP-6195
System	Temperature & Humidity Balance Control (BTHC) System
Test Area Volume	1000 liters
Test Area Load Capacity	100 kg
Internal Dimensions W×H×D	1000×1000×1000 mm
External Dimensions W×H×D	1200×2050×1780 mm
Weight	860 kg
Power Supply	1φ 220V AC & 50/60 Hz, 24A or 3φ 380V AC & 50/60 Hz, 10A
Temperature Range	-70℃ ~ +100℃ (+150℃/+180℃)
Humidity Range	10~98% RH
Temperature/Humidity Fluctuation	±0.3℃ / ±2.5% RH
Temperature Uniformity	1.5℃
Temperature Change Rate	Heating: 3.0℃/min, Cooling: 2.0℃/min
Extreme Temperature Ramp Time	Heating (+20 to +100℃): 30 min, Cooling (+20 to -20℃): 20 min
Permissible Heat Load	300 W at +20℃ test area temperature
Refrigeration System	Mechanical single-stage compression cooling
Compressor	Scroll / Piston compressor
Refrigerant	R404A [R449A available on request]
Power	4.8 kW
Noise Level	65 dB

Product Images

Our Service Commitment

Consultative Selling Process

Inquiry Process: Technical requirement discussion, product recommendations, and competitive pricing
Customization Process: Detailed drawings, reference photos, and final solution confirmation
Production & Delivery: Quality production with progress photos, calibration services, and timely shipping
Installation & Support: Field installation and comprehensive after-sales support

Frequently Asked Questions

Are you a manufacturer? What about after-sales service and warranty?

Yes, we are professional manufacturers of environmental chambers and testing equipment. All machines include a 12-month warranty with free maintenance. Considering sea transportation, we extend this to 14 months for international customers. For technical issues, we provide support via email, phone, or video chat with solutions typically provided within 24-48 hours.

What is your delivery timeline?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. We accommodate urgent requirements with special arrangements.

Do you accept customization and branding services?

Yes, we offer both standard and customized machines according to your specifications. We provide OEM and ODM services, including custom branding with your logo.

How do I install and operate the equipment?

We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
