Name: LCD Touch Screen Environmental Test Chamber with Temperature Range -70~+150°C and Customizable Size
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6195
Price: 4,799.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Trademark: None

Origin: China

Production Capacity: 50 Unit/Month

Model NO.: UP-6195

Product Name: Constant Temperatrue And Humidity Chamber

Warranty: 1 Year

Additional Service: Support Customer Customization

Custom Service: OEM,ODM

Temperature Range: -70~180ºC

Humidity Range: 20%~98%

Color Service: Support Customer Customization

Size Service: Support Customer Customization

Third-Party Calibration Service: Support Customer Customization

Transport Package: Professional Export Wooden Box Packaging.

Specification: Refer To The Actual Size Specifications

Highlight:

LCD Touch Screen Environmental Test Chamber

Temperature Range -70~+150°C Climate Test Chamber

Customizable Size Constant Temperature and Humidity Chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6195

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5~15 work days

Payment Terms: T/T; D/P; Wester Union; Paypal; Money Gram

Supply Ability: 10 Unit/month

Gallery

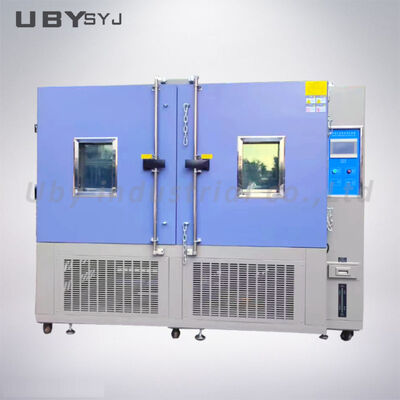

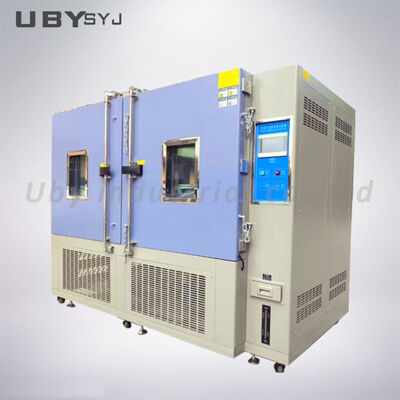

LCD Touch Screen Environmental Test Chamber with Temperature Range -70~+150°C and Customizable Size

Product Description

Temperature Range -70~+150°C LCD Touch Climatic Temperature Humidity Environment Test Chamber

This advanced climatic test chamber features an extensive temperature range from -70°C to +150°C with LCD touch control, designed for comprehensive environmental testing of materials and products.

Design Standards:

GB2423/T5170/10586/10592, IEC60068, GJB150, JIS C60068, ASTM D4714, CNS3625/12565/12566

Applications:

This equipment simulates various environmental conditions to test material performance characteristics including heat resistance, dry resistance, humidity resistance, and cold resistance, enabling comprehensive material performance evaluation.

Key Features:

Elegant circular body design with mist strip surface treatment for easy operation and reliable safety
Rectangular double-paned viewing window with interior lighting for clear sample observation
Double-layer insulated airtight doors for effective temperature insulation
Externally connectable water supply system with automatic recycling for humidification
French Tecumseh compressor using environmentally friendly R23 or R404A refrigerants
LCD display showing measured values, set values, and time parameters
Multi-segment program editing with quick or ramp rate temperature and humidity control
Mobility casters with strong positioning screws for easy relocation

Technical Specifications:

Parameter	Specification
Internal Dimensions (L×W×H)	3000×2300×2550 mm
External Dimensions (L×W×H)	4600×2500×2750 mm
Temperature Range	-20°C to +100°C
Humidity Range	20% to 95% RH
Temperature Resolution	0.1°C
Temperature Fluctuation	±0.5°C
Temperature Uniformity	±2°C
Humidity Resolution	0.1% RH
Humidity Fluctuation	±2% RH
Humidity Uniformity	±2.5% RH
Heating Rate	0-3°C/min (average, no load)
Cooling Rate	0-1°C/min (average, no load)
Noise Level	≤65 dB
Power Supply	380V±10%, 50Hz, 3-phase, 100A
Cooling Method	Water cooling system with cooling tower and dual circulation
Material	Interior: SUS304 stainless steel; Exterior: Cold-rolled steel plate with coating
Observation Window	Two explosion-proof observation windows (320×350 mm each)

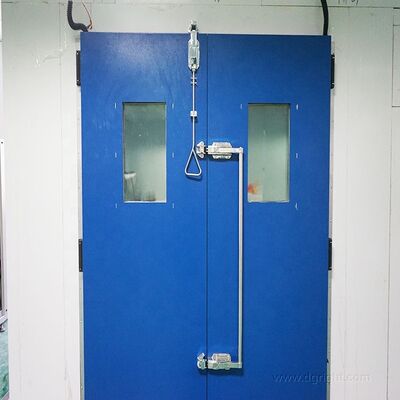

Door Type	Double doors with silicone rubber sealing strip
Lighting	Two explosion-proof LED lights (36V/40W)
Controller	Touchscreen LCD with PID+SSR control
Communication Interface	RS232/RS485 ports for PC data acquisition and monitoring
Safety Devices	Overheat, overload, phase loss, leakage, and water shortage protection

Our Service Commitment

We provide comprehensive consultative selling services throughout the entire business process:

Customer Inquiry: Technical requirement discussions, product recommendations, and competitive pricing
Customization: Detailed drawings, reference photos, and final solution confirmation
Production & Delivery: Quality manufacturing with progress photos, calibration services, and timely shipping
Installation & Support: Professional installation and comprehensive after-sales service

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers and testing equipment. All machines include a 12-month warranty with free maintenance. For sea transportation, we extend to 14 months. Technical support is available via email or video chat with solutions provided within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days; Custom orders: 15-20 working days after payment. Urgent requirements receive special priority scheduling.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and fully customized machines according to your specifications. OEM and ODM services include custom branding with your logo.

How can I install and use the machine?

We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when required.
